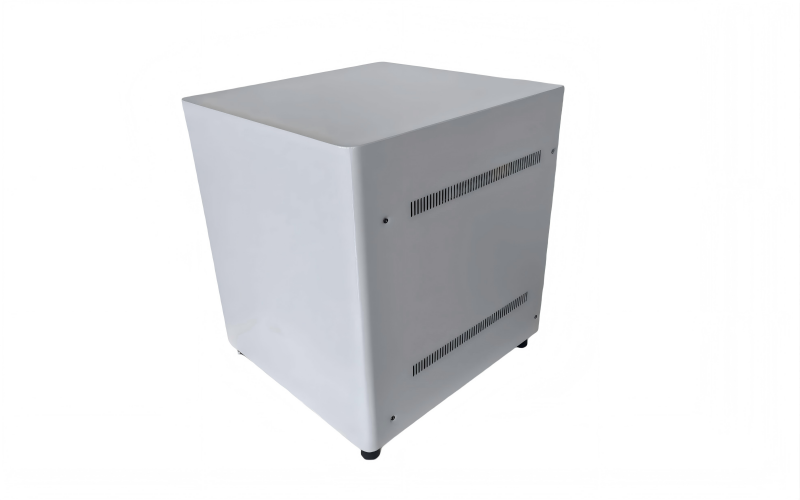

LXG CRS
Feature
Fully compliant with LXC testing
Integrated DAP function
Multi‑channel AEC function as standard
High compatibility, suitable for mainstream image software
Full‑digital stepless variable‑frequency rotary anode control technology
Modular and platform‑based design, easy for installation and maintenance
All‑in‑one aluminum oil tank with excellent sealing and pressure resistance
Digital adjustment of kV, mA and mAs
Dual‑filaments automatic selection
Technical Data
| Product Model | CRS50 | CRS80 | |
| Working Frequency | ≥400kHz | ||
| Input | |||
| Mains Phase/Voltage | Single Phase/220VAC±1096 | ||
| Power grid frequency | 50Hz/60Hz | ||
| Output | |||
| Nominal/Max Power | 32kW/32kW | 50kW/50kW | 80kW/80kW |
| Tube Voltage | RAD:40‑150 kV | ||
| Rising Time | ＜=1.5ms 100kv(10%‑90%) | ||
| Accuracy of Tube Voltage | ±56%≥100kV4kV<100kV | ||
| Tube Current | 10-400mA | 10-710mA | 10-1000mA |
| Accuracy of Tube Current | ±(50%+1mA) 0 ＜10ms | ||
| Current Time Product | 0.1-320mAs | 0.1-630mAs | 0.1-800mAs |
| Accuracy of Current Time Product | ±(5%+0.2mAs)≥10ms±(10%+0.2 mAs)<10ms | ||
| Loading Time Range | 1‑10000ms | ||
| Accuracy of Loading Time | ±(2%+0.5ms)≥10ms±(5%+1ms) <10ms | ||
| Filament Frequency | 43kHz±2kHz | ||
| Rotor Control Model | Fixed frequency/anode stepless speed control | ||
| Function/Accessory | AEC/DAP/Mini console/Touch screen console | ||
| Communication Ports | RS232、CAN | ||
| LXC | LXC testing report | ||
| Goods Size:L-W-H | 750mm * 470mm * 500mm | ||
