Application
Lead Rubber
Feature
High X-ray shielding performance, lead equivalent ≥0.125mmPb, suitable for X-ray equipment up to 150kV.
Available in lead rubber, lead plastic and lead-free rubber options to meet different hospital project requirements.
Soft and flexible protective material, easy to cut and process into radiation shielding curtains or custom shielding parts.
Stable shielding property, service life up to 4 years, durable for long-term daily radiology department use.
Strict quality inspection, complete technical documents, reliable radiation protection for medical staff and patients.
Main structure
X-ray protective rubber sheet usually consist of even and soft in thickness of lead rubber,lead plastic or other protective material which contains the heavy metal element
Main Performance
Lead equivalent ≥0.125mmPb
X ray tube voltage ≤150kV。
Type
Lead-free rubber,lead rubber,lead plastic rubber
Size:see the label
Except usage:protect patient from the x ray
Range of application:doctor ,patient x ray protective.
Mothed of application:pls check the surface of the lead rubber is broken or not before using,and check the equivalent is what you need or not?after confirming is meet your demand,then begin to use.
Attention:
Lead rubber can not folded,in order to avoid broken and x ray leakage.
If any dirty on the surface of the rubber,first pls wash it with the Low concentration cleaning liquid or a little detergent with soft brush.then wash it with water,and put it at the Air dry in ventilated place.
Regular inspections should be carried out,the inspetction mothed is:flat touch with hand or observe with eyes,if some crack,damaged,that means the goods can not use any more,must be scrapped.
After scrapped,user should handle it in accordance with relevant national laws and regulations
Storage mothed
Should keep it in the room where there is no direct sunlight. Keep far away from heat source,strictly prohibit to contact with the Chemicals such as acids and bases
1、 Fragile:Means goods inside the packages is fragile,should be careful during the transportation.
2、 Upper：Goods during transporation should be straight up
3、Beware fear the Sun:Goods during transporation,the packages No direct exposure
4、Beware fear the rain:Goods during transporation,keep the packages from rainning.
Life span:4years
Technical Data
| product name | （mmpb） | thickness（mm） | width（mm） | m/roll | Weight kg/㎡ |
| 1 | 0.125 | 0.45±0.03 | 1200 | 20 | 1.8 |
| 2 | 0.175 | 0.64±0.04 | 1200 | 15 | 2.6 |
| 3 | 0.25 | 0.74±0.04 | 1200 | 10 | 3.5 |
| 4 | 0.35 | 1.00±0.04 | 1200 | 10 | 4.9 |
| 5 | 0.5 | 1.45±0.05 | 1200 | 10 | 7.0 |
| 6 | 0.125 | 0.41±0.04 | 1250 | 20 | 1.55 |
| 7 | 0.175 | 0.62±0.05 | 1250 | 15 | 2.3 |
| 8 | 0.25 | 0.82±0.05 | 1250 | 10 | 3.1 |
Note: The above data is for reference only. Slight deviations may occur during actual processing. 2021.11.28 | |||||

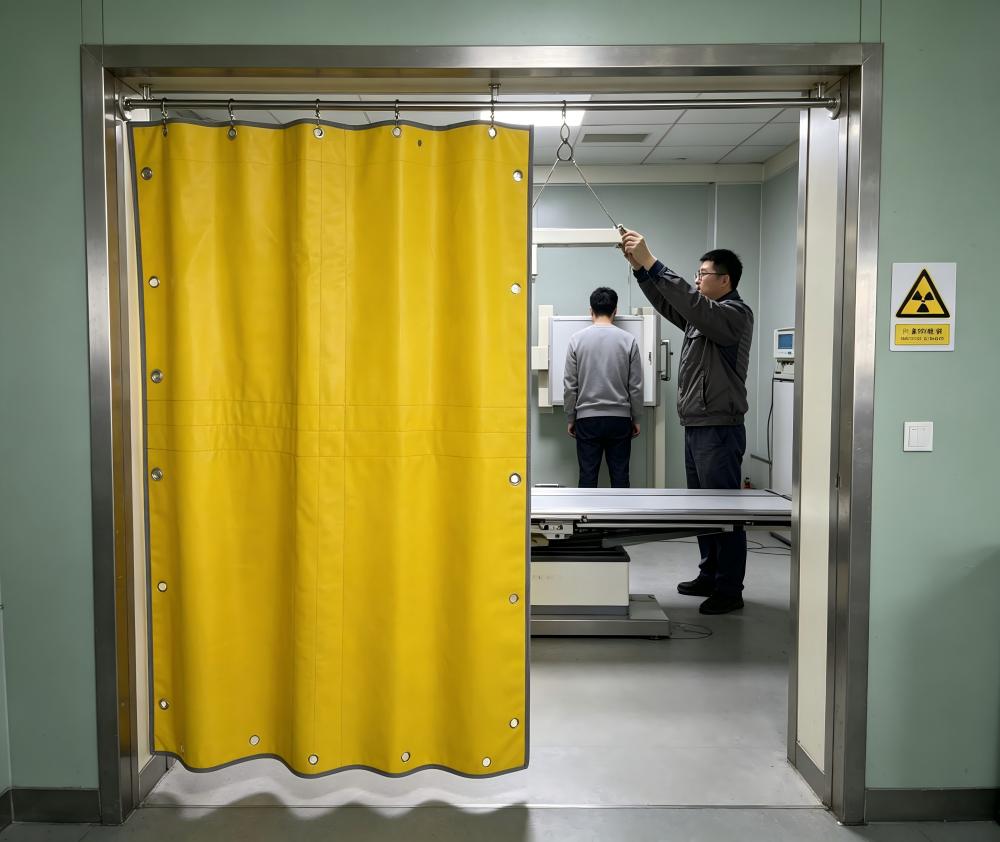

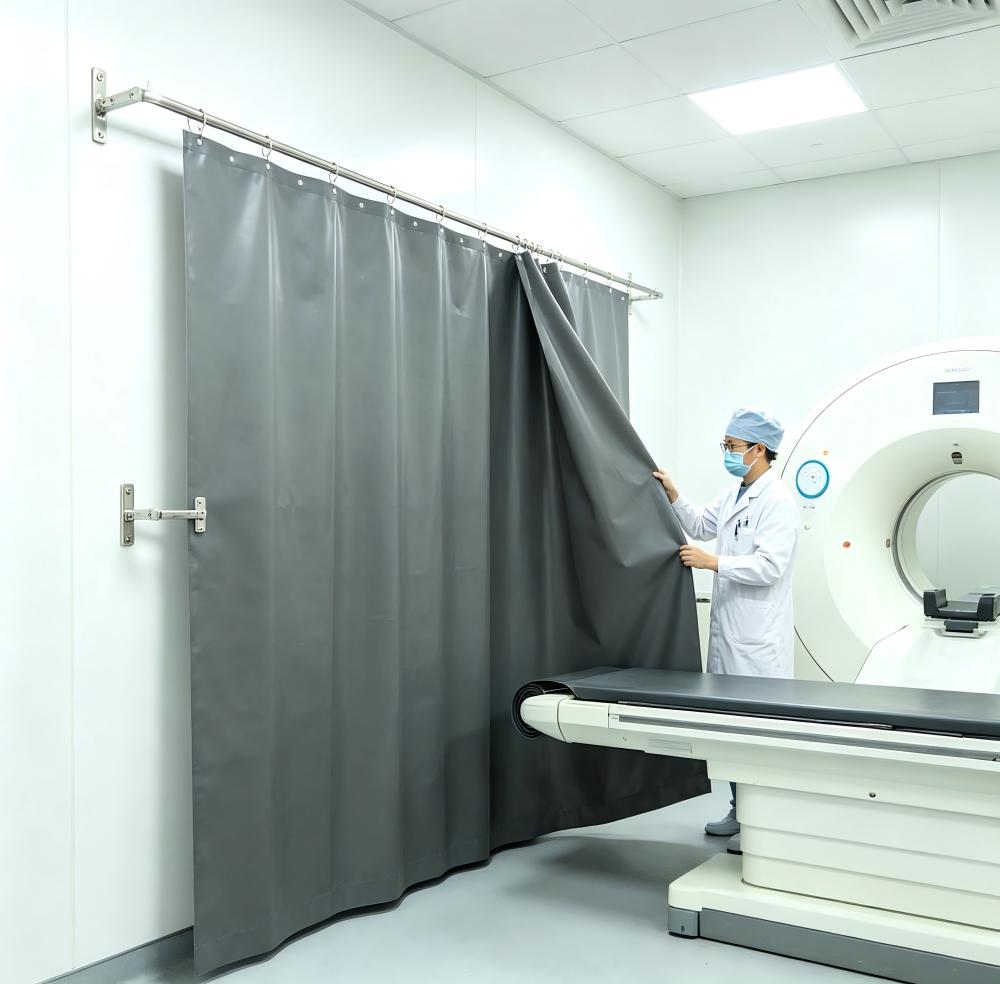

Application Scenario Images
