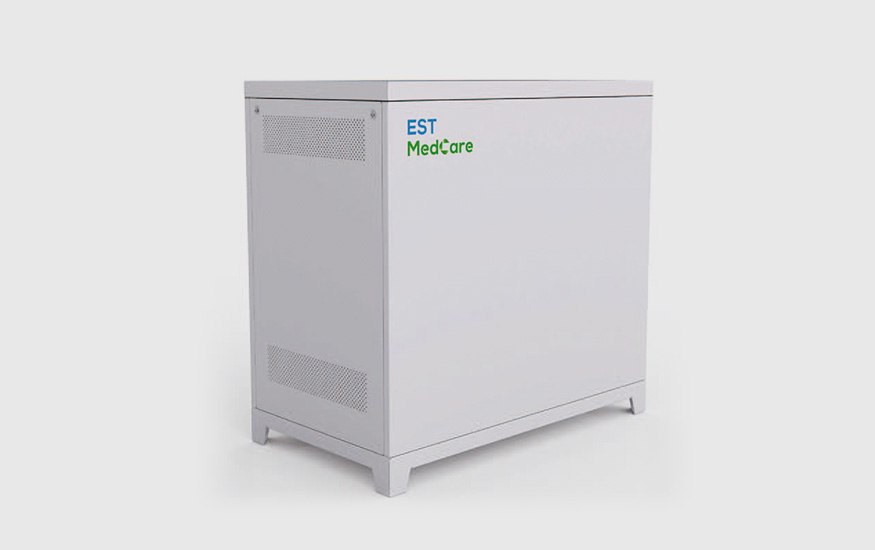

- EMG CRS Series mainly consists of cabinet, Control system, energy store unit, inverter module and high voltage oil tank.
Application Scenarios
EMG CR Series- EMG CR Series is mainly applied to DR system expecially like U -arm, Floor Mounted, Ceiling Mounted.
Feature
- Fully compliant with EMC testing
- Integrated DAP function
- Modular and platform-based design,easy for installation and maintenance
- All-in-one aluminum oil tank with good sealing and pressure resistance
- Dual-filaments automatic selection
- Multi-channel AEC function as standard
- High compatibility, suitable for mainstream image software
- Full digital stepless variable frequency rotary anode control technology
- Digital adjustment of kV, mA land mAs
Product Parameters
| Product Model | CR56 | CR65 | CR80 | CR90 | |
| Working Frequency | ≥400kHz | ||||
| Input | Mains Phase/Voltage | Three Phase/380VAC±10% | |||
| Power grid frequency | 50Hz/60Hz | ||||
| Output | Nominal/Max Power | 56 kW/70 kW | 63 kW/80kW | 80 kW/90 kW | 90 kW/100kW |
| Tube Voltage | 40-150 kV | ||||
| Rising Time | ≤1.5ms@100kV(10%-90%) | ||||
| Accuracy of Tube Voltage | ±5%@≥100kV 4kV@＜100kV |
||||
| Tube Current | 10-800 mA | 10-1000 mA | |||
| Accuracy of Tube Current | ±（5%+0.2 mAs）@≥10ms ±（10%+0.2 mAs）@＜10ms |
||||
| Current Time Product | 1-10000ms | ||||
| Accuracy of Current Time Product | ±（2%+0.5 ms）@≥10ms ±（5%+1 ms）@＜10ms |
||||
| Filament Frequency | 43kHz±2kHz | ||||
| Rotor Control Model | Fixed frequency/ anode stepless speed control | ||||
| Function/Accessory | AEC/DAP/ Mini console/Touch screen console | ||||
| Communication Ports | RS232、CAN、RS485 | ||||
| EMC | EMC testing report | ||||
| Size (W*D*H) | 700mm*400mm*680mm | ||||
