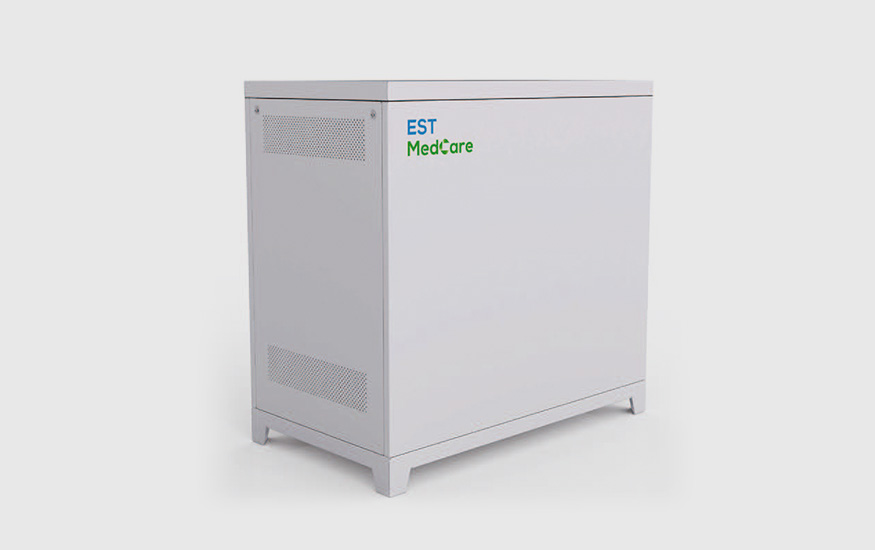

- EMG CRSF Series mainly consists of cabinet, Control system, energy store unit, inverter module and high voltage oil tank
Application Scenarios

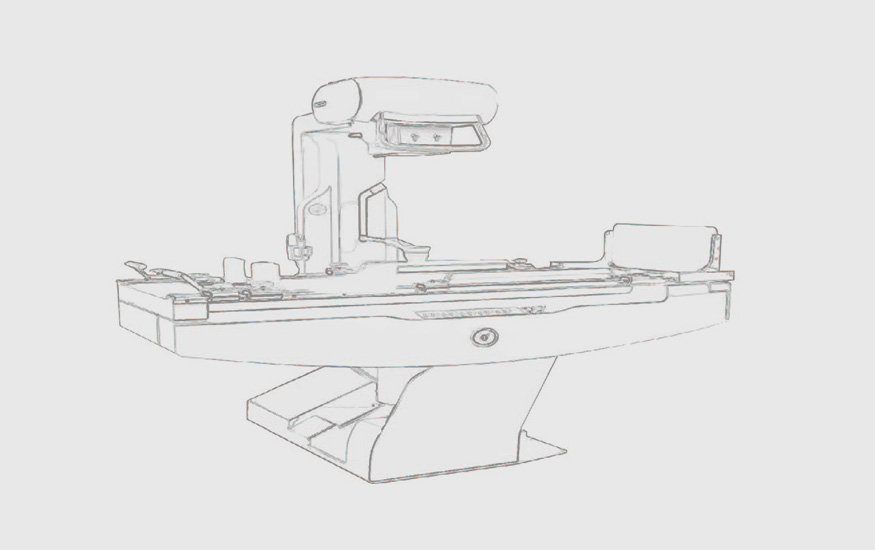

EMG CRSF Series- EMG CRSF Series is mainly applied to Dynamic DR, Gastrointestin al machine etc.
Feature
- Fully compliant with EMC testing
- Integrated DAP function
- Multi-channel AEC function as standard
- High compatibility, suitable for mainstream image software
- Full digital stepless variable frequency rotary anode control technology
- Digital adjustment of kV, mA and mAs
- Dual-filaments automatic selection
- Automatic Brightness Adjustment of image
- Selection of Algorithm Curve Library
- Support maximal 30 minutes’ continuous fluoroscopy
- Switching time less than 1s between fluoro/RAD
Product Parameters
| Product Model | CRSF56 | CRSF65 | CRSF80 | CRSF90 | ||
| Working Frequency | ≥400kHz | |||||
| Input | Mains Phase/Voltage | Single Phase/220VAC±10% | ||||
| Power grid frequency | 50Hz/60Hz | |||||
| Output | Nominal/Max Power | 56 kW/70 kW | 63 kW/80kW | 80 kW/90 kW | 90 kW/100kW | |
| Tube Voltage | 40-150 kV | |||||
| Rising Time | ≤1.5ms@100kV(10%-90%) | |||||
| Accuracy of Tube Voltage | ±5%@≥100kV 4kV@＜100kV |
|||||
| Tube Current | RAD | 10-800 mA | 10-1000 mA | |||
| Contiunous Fluoro | 0.5-10 mA | |||||
| Pulsed Fluoro | 0.5-100 mA | |||||
| Accuracy of Tube Current | ±（5%+1 mA）@≥10ms ±（20%+1 mA）@＜10ms |
|||||
| Current Time Product | 0.1-630 mAs | 0.1-1000 mAs | ||||
| Accuracy of Current Time Product | ±（5%+0.2 mAs）@≥10ms ±（10%+0.2 mAs）@＜10ms |
|||||
| Loading Time Range | 1-10000ms | |||||
| Accuracy of Loading Time | ±（2%+0.5 ms）@≥10ms ±（5%+1 ms）@＜10ms |
|||||
| Filament Frequency | 43kHz±2kHz | |||||
| Rotor Control Model | Fixed frequency/ anode stepless speed control | |||||
| Function/Accessory | AEC/DAP/ Mini console/Touch screen console | |||||
| Communication Ports | RS232、CAN、RS485 | |||||
| EMC | EMC testing report | |||||
| Size (W*D*H) | 750mm*470mm*500mm | |||||
