PSG-HR50

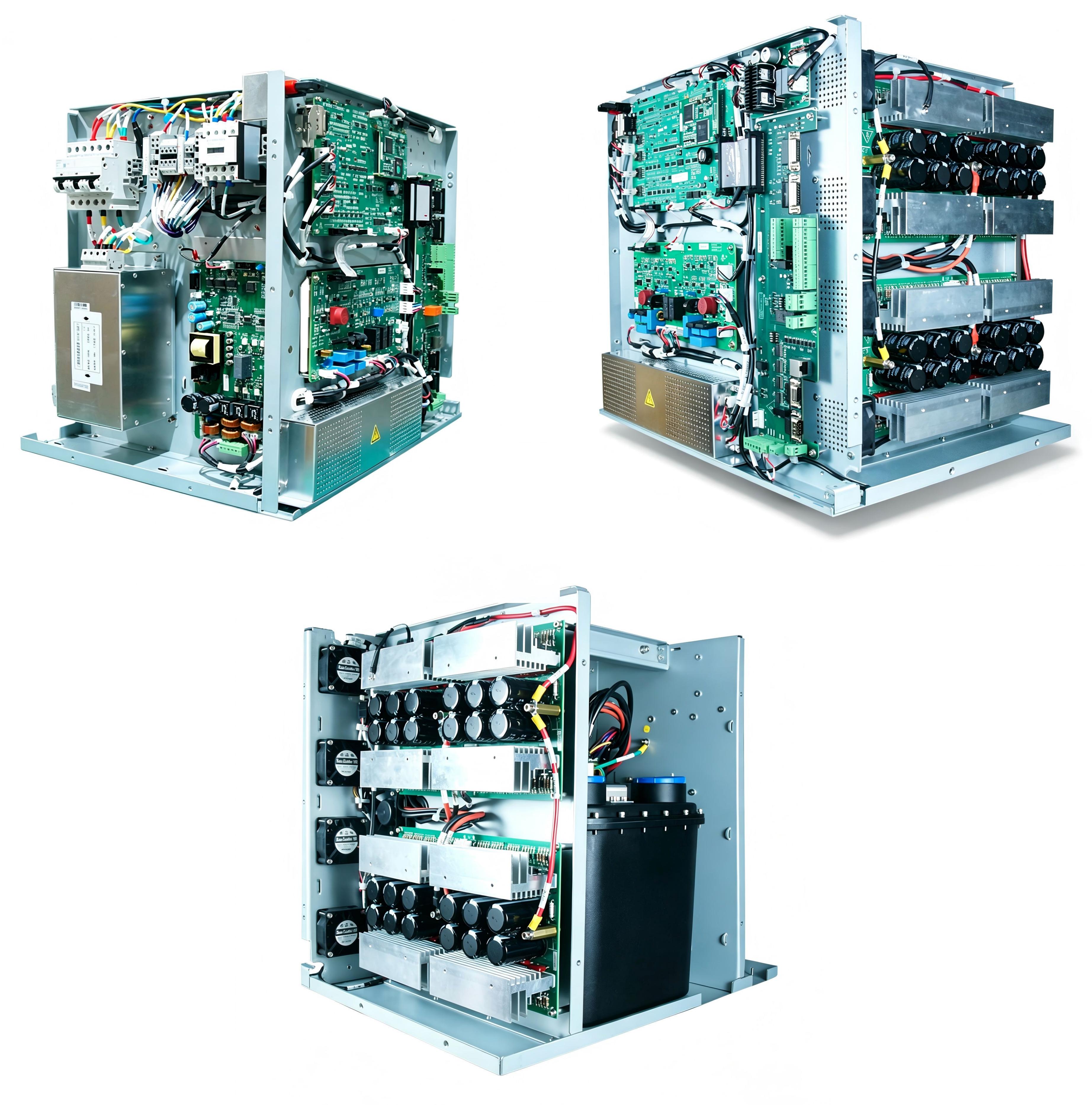

PSG‑HR50 50kW high‑frequency X‑ray generator, compact structure for multi‑type DR system integration.

Feature

• High voltage insulation of tank (224kV)
• Compact and high power density
• Short safe discharging time (less than 1 minute)
• Digital switching between kV and mA
• Digital Continuously Variable Transmission (CVT) Rotating Anode Technology

Technical Data

Prouduct Model		PSG-HR50E	PSG-HR50	PSG-HR65	PSG-HR80
Product Name	Medical X-ray High Frequency High Voltage Generator
Input	Max Working Frequency	200kHz±20%	300kHz±20%
	Phase/Voltage Range	3Phase/380V±10%	3Phase/380V~480V
	Frequency	50Hz/60Hz
Output	Nominal Power	50kW	50kW	65kW	80kW
	kV Range	40kV~150kV
	kV Rising Time	≤1ms@100kV(10%~90%)
	Accuracy of kV	±5%@≥100kV / 4kV@＜100kV
	Max mA	630mA	630mA	800mA	1000mA
	Accuracy of Tube Current	±(5%+01mA)@≥100ms ±20%@＜10ms
	mAs Range	0.4mAs~1000mAs
	Accuracy of mAs	±(5%+0.2mAs)@＞5ms ±(10%+0.2mAs)@≤5ms
	Exposure Time Range	1ms~10000ms
	Accuracy of Exposure Time	±(2%+0.2ms)@＞5ms ±(5%+1ms)@≤5ms
	Rotor Control Parameter	Dual Speed Auto Control
Appearance	Size(W*D*H)	523*420*475mm
	Weight	65kg	65kg	68kg	68kg
Optional Configuration	Function/Accessory	AEC/DAP/Hand Switch/Control Box
