GGF-Plus

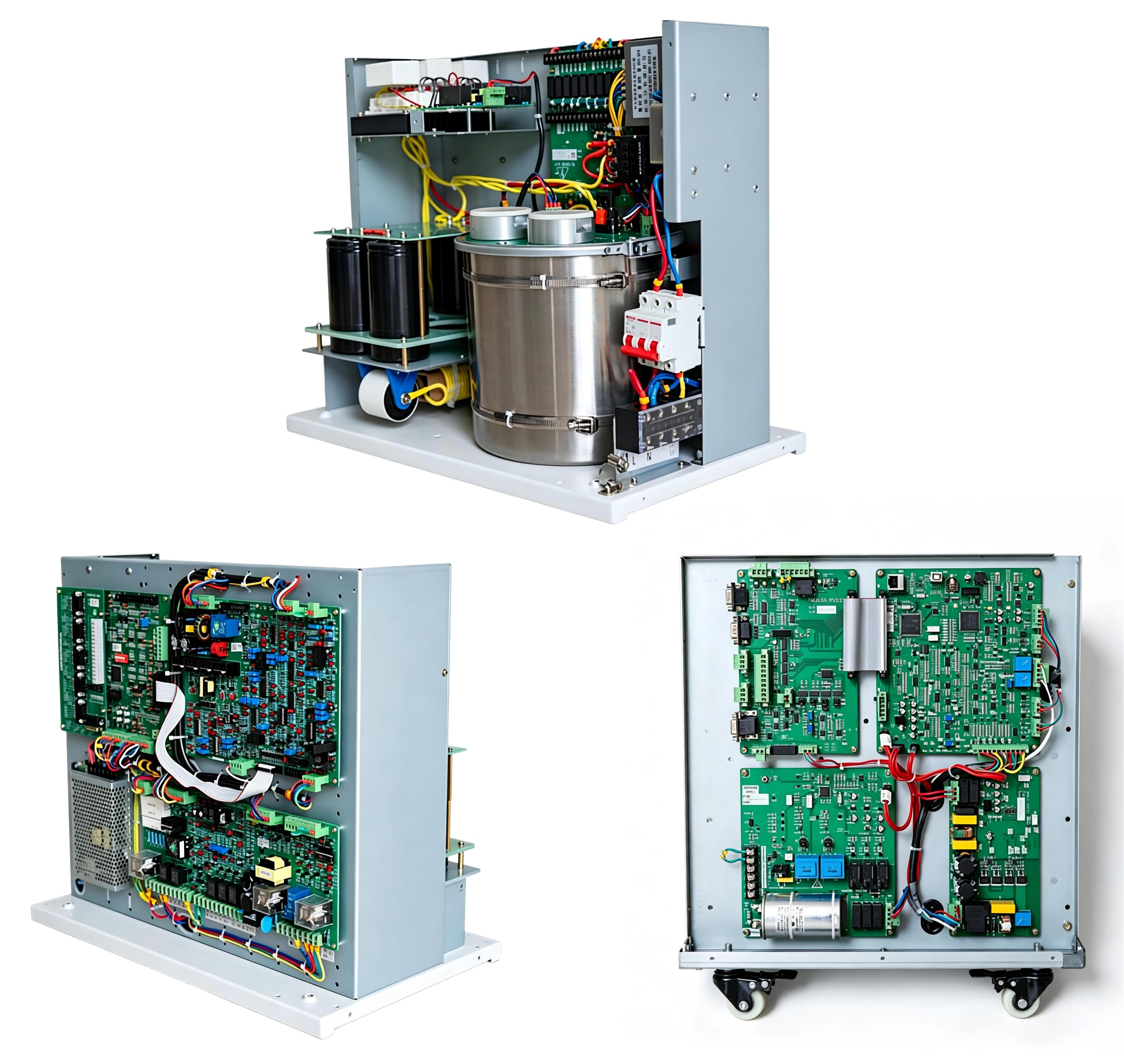

GGF‑Plus high‑frequency X‑ray power generator, stable performance specially designed for DR system matching.
Feature
- Analog and digital double-loop control,simple operation and high intelligence.
- Stable high-voltage input, high accuracy of radiographic time control,high and good repeatability.
- Using high-frequency inverter technology,low radiation dose,clear image.
- With automaticalibration of tube current function.
- Fault slf-diagnosis,self-protectio.
Technical Data
| GGF-Plus Main Technical Indexes | |||
| Model | GGF20 | GGF32 | GGF50 |
| Nominal Power | 20KW | 32KW | 50KW |
| Radiographic Power Capacity | 300mA@70kVp 200mA@100kVp 100mA@125kVp | 400mA@80kVp 300mA@100kVp 125mA@125kVp(150kVp) | 630mA@70kVp 500mA@100kVp 320mA@150kVp |
| Operating Frequenc | 30kHz(pulse width modulation) | ||
| Radiographic Voltage Range | 40-125kV,step 1kV | 40-125Kv(150kV optional), step 1kV | 40-150kV,step 1kV |
| kV Accuracy | ≤±5% | ||
| mA Range | 32,40,50,63,80,100 125,160,200,250,320 | 32,40,50,63,80,100,125,160,200,250,320,400 | 32,40,50,63,80,100, 125,160,200,250, 320,400,500,630 |
| mA Accuracy | ≤±5% | ||
| Exposure Time Range | 0.003-6.3s(34 step)Fine Tuning:1ms increasing/decreasing | ||
| Time Accuracy | ≤±5%+1ms | ||
| mAs Range | 1-400 | 1-500 | 1-640 |
| Automatic Exposure Control(AEC) | Optional | ||
| Filter Control | Two-way | ||
| Anode Starter | Yes | ||
| Fluoroscopic Voltage Range(RF Type) | 40-120kV(step 1 kV) | ||
| Fluoroscopic mA Range(RF Type) | 0.5-6mA | ||
| Automatic Brightness Control(RF Type) | Yes | ||
| 3/2 Point Operation Console | 3/2 Point Operation Console,with 128Optional Anatomical Programs | ||
| DigitalImage Control Interface | Customizable | ||
| Communication Interface | RS-232 | ||
| Input Voltage Range(VAC) | 220/380V±10%,50Hz | 380V±10%,50Hz | |
| Minimum Voltage Requirement | According toIEC601-2-7 | ||
| Dimensions | 590mm×360mm×500mm(LWH) | ||
| Weight | 83kg | 83kg | 87kg |
