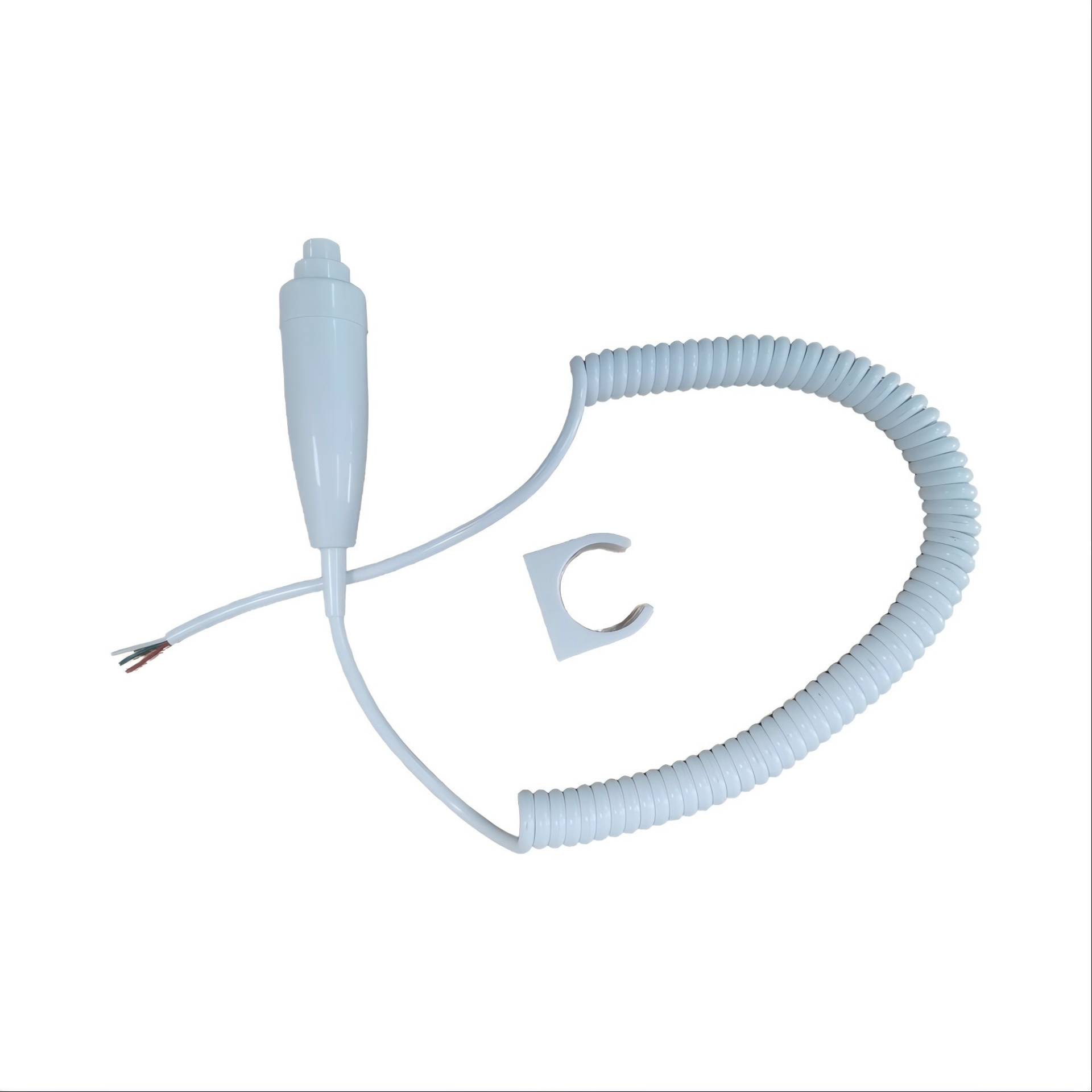

3-Core 2-Position Hand Switch
3‑core two‑position X‑ray exposure hand switch, two‑step control for medical X‑ray photography equipment.
Feature
Two‑position two‑step design, separate ready and expose control
Flexible protective hose, effectively protects internal wires from damage
Ergonomic handheld shape, comfortable grip for long‑time operation.
Widely compatible with general radiography and dental X‑ray machines.
Technical Data
| Item | Specification | |
| Resistance of Conductor Direct Current: | Not more than 1.2Ω/m under | 21℃ |
| Durable Property: | Rated Voltage: | 250V |
| Rated Current (a.c. Or d.c.): | 3~ | |
| Ambient Temperature: | 21℃ | |
| Operating Numbers per Min.: | 30 | |
| Testing Voltage: | 1000V, 50 HZ | |
| Dielectric Strength: | Rated Voltage: | 250V |
| Working Insulation: | Testing Voltage: 1250V | |
| Reinforcing Insulation: | Testing Voltage: 3750V | |
| Completer Cut-off: | Testing Voltage: 1250V | |
| Mechanical Characteristics: | Max. Diameter: | 28mm |
| Height | 105mm | |
| Cable Length: | 300/400/500cm（optional） | |
| Cable Diameter: | 0.12mm² | |
| White Cable: | the First Step (Ready Status) | |
| Green Cable: | the Second Step (Exposing Status) | |
| Red Cable: | Common Line | |
