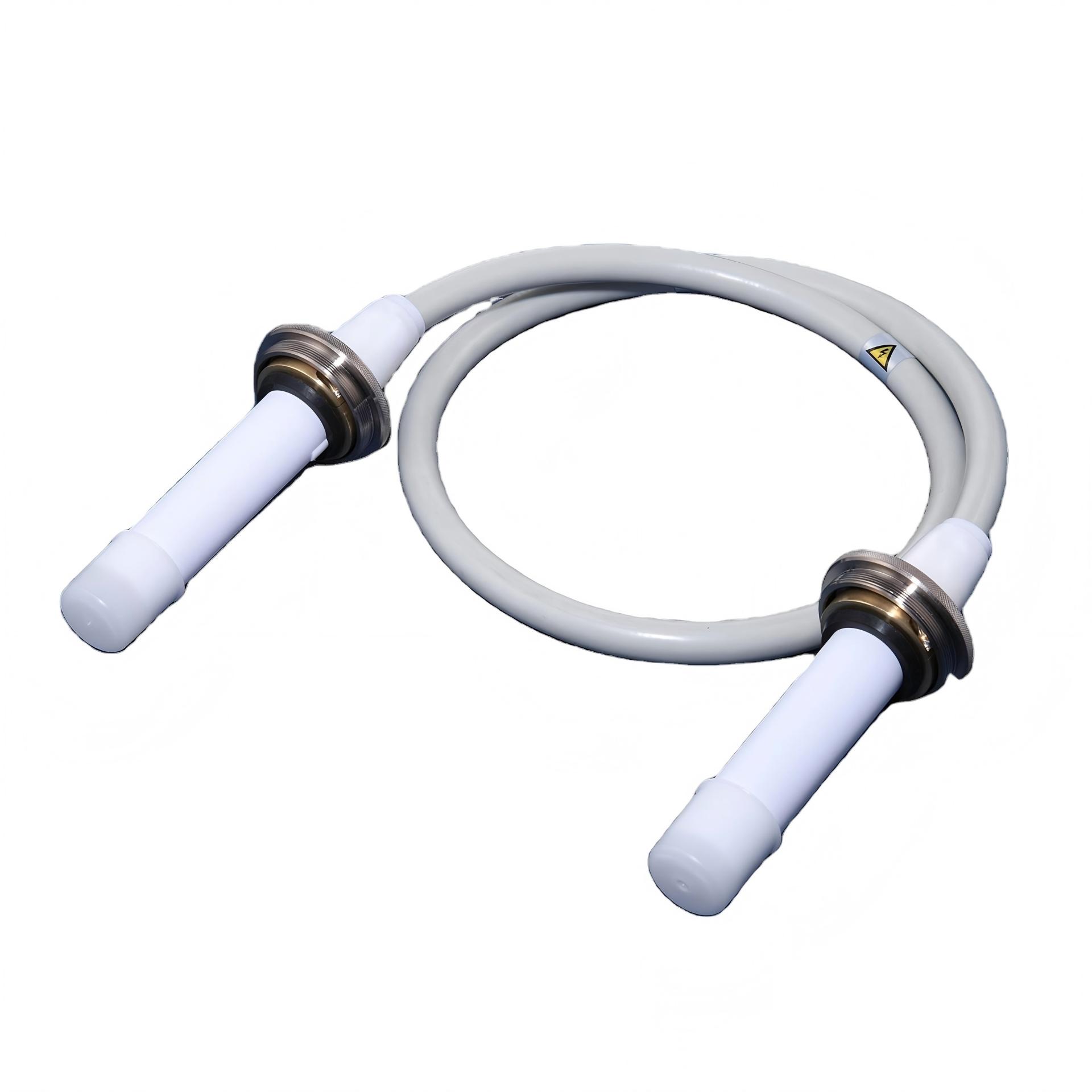

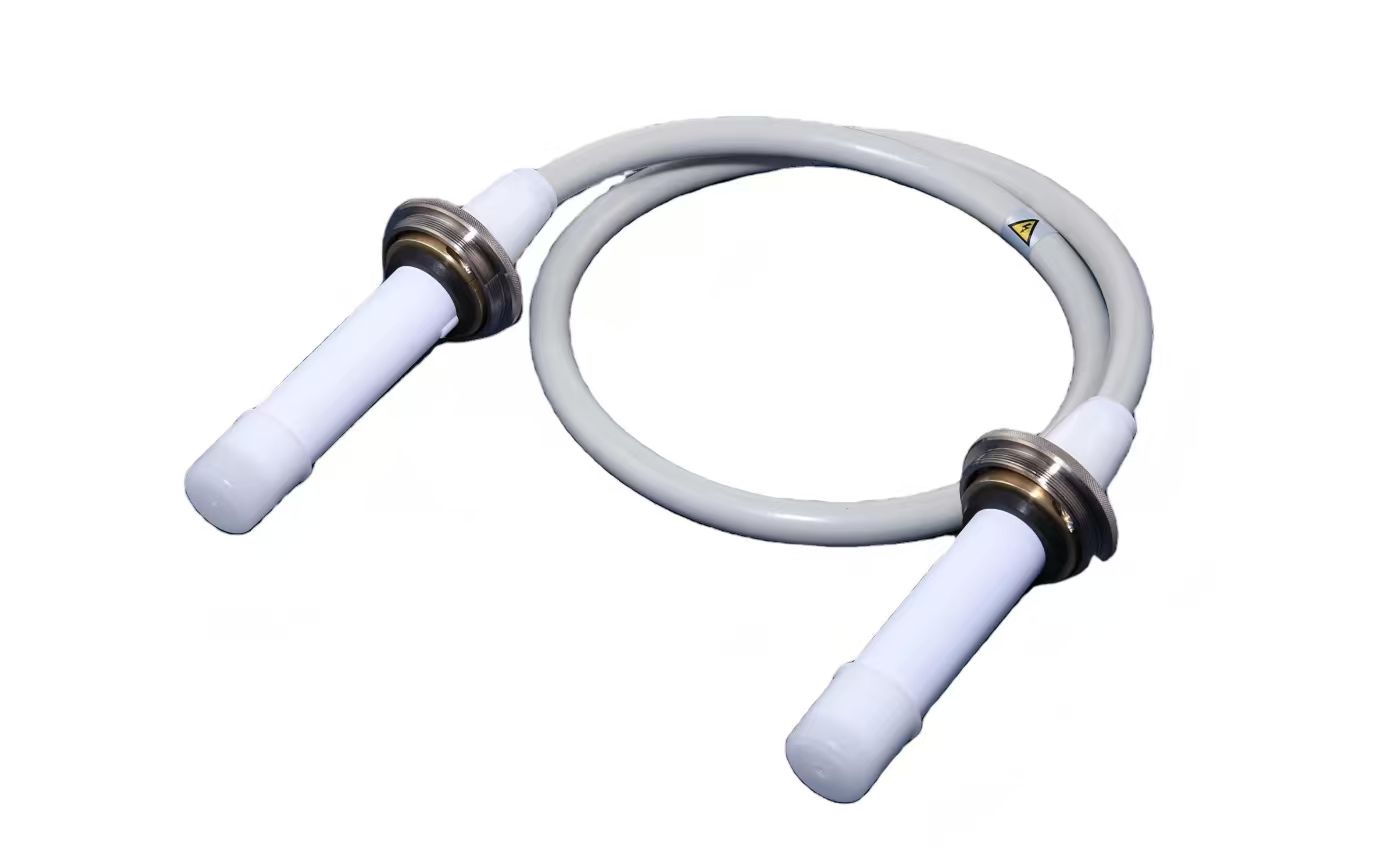

X-Ray High Voltage Cables

6‑meter medical X‑ray high‑voltage cable, CE certified high‑voltage connecting wire for X‑ray equipment.

Feature

• Total cable length is 6 meters, stable for medical X‑ray high‑voltage transmission.
• CE certified product, meets medical‑grade safety requirements.
• Fine‑made connector, good sealing performance for high‑voltage connection.
• Flexible outer sheath, resistant to bending and long‑time repeated movement.


  Technical Data

  Item	Unit	Specification - X‑Z 50 Cable and Plug Connector	Specification - X‑Z 75 Cable and Plug Connector
  Rated Current	A	10	10
  Working Temperature	°C	70	70
  Rated Voltage (Peak)	kV	50	75
  Smallest Curving SemiDiameter		5 times of cable diameter	5 times of cable diameter
  Main Range		used for X‑ray machines with a peak value of 100 kV pulsing direct current voltage, neutral point grounding mode	used for X‑ray machines w
