HXD51‑20.40/125
HXD51‑20.40/125 X‑ray tube assembly, stable and reliable, ideal for medical radiography equipment.
Feature
- Complies with IEC Class I Type‑B safety standard, high‑safety performance.
- Rated maximum tube voltage up to 125kV, meets general radiography demands.
- Dual‑focus design: large focus 2.0mm, small focus 1.0mm for flexible imaging.
- High input power: 40kW for large focus, 20kW for small focus, efficient exposure.
- Supporting motor rating 50Hz, power supply 120‑220V, easy equipment matching.

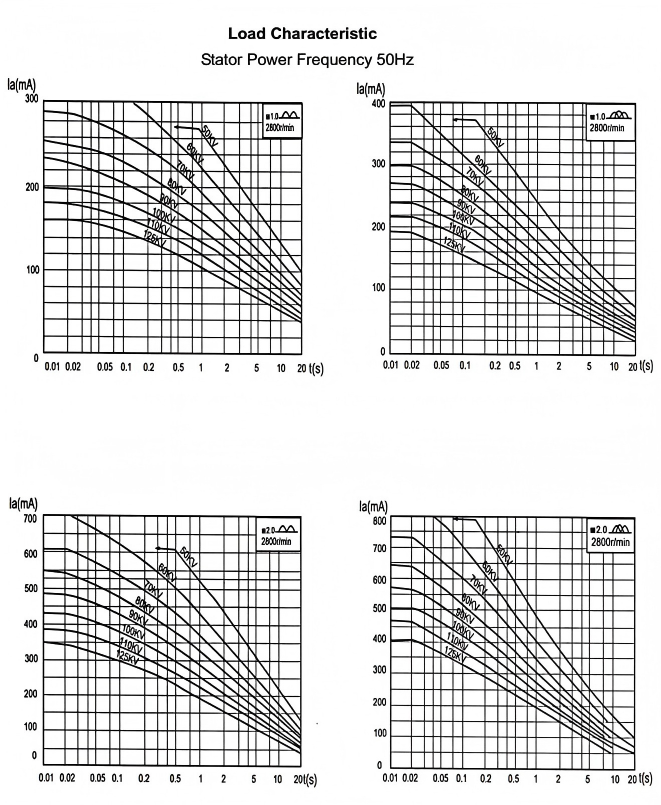

Technical Data
| Electrical Parameter | ||
| Circuit | High Voltage generator | Constant Potential High-Voltage Generator |
| Grounding | Center-ground | |
| Nomianl X-ray Tube Voltage | Radiographic | 125kV |
Nominal Focal Spot Value (IEC 60336/1993) | Large Focus | 2.0mm |
| Small Focus | 1.0mm | |
| Nominal Anode Input Power(at0.1s) | Large Focus | 40KW |
| Small Focus | 20KW | |
| Motor Rating | ||
| Duty | Starting | Running |
| Power Source(Hz) | 50 | 50 |
| Voltage(V) | 120~220 | 40~60 |
| Current(A) | 3.5~5.5 | 1.0~1.5 |
| Min.Speed up(s) | 1~1.2 | -- |
| Capacitor(μF) | 43 | 43 |
| Anode Speed | 50HZ | 2800rpm |
| Stator impedance | Common Main Winding | 18.0Ω |
| Common-auxiliary Winding | 47.5Ω | |
| Resistance between Housing and Low Voltage Terminals | 2MΩMin | |
| Normal operating range of the housing temperature | 16-75℃ | |
| Physical Parameter | ||
| Dimensions | Overall Length | 480mm |
| Maximum Diameter | 152.4mm | |
| Target | Angle | 17.5° |
| Diameter | 70mm | |
| Construction | Rhenium-Tungsten faced Molybdenum | |
Total Filtration (Aluminum Equivalent) | Inherent Filtration | 1.0mmAL |
| Additional Filtration | 1.5mmAL(3×0.5mmAL) | |
| Leakage Technique Factor | 125kV, 3mA | |
| X-ray Coverage | 350*354mm at SID 1000mm | |
| Weight | About 17 Kg | |
| High Voltage Receptage | To meet the requirements of IEC 60526 | |
| Cooling Method | Natural or forced air | |
