Application Scenarios
PC PD PDW01

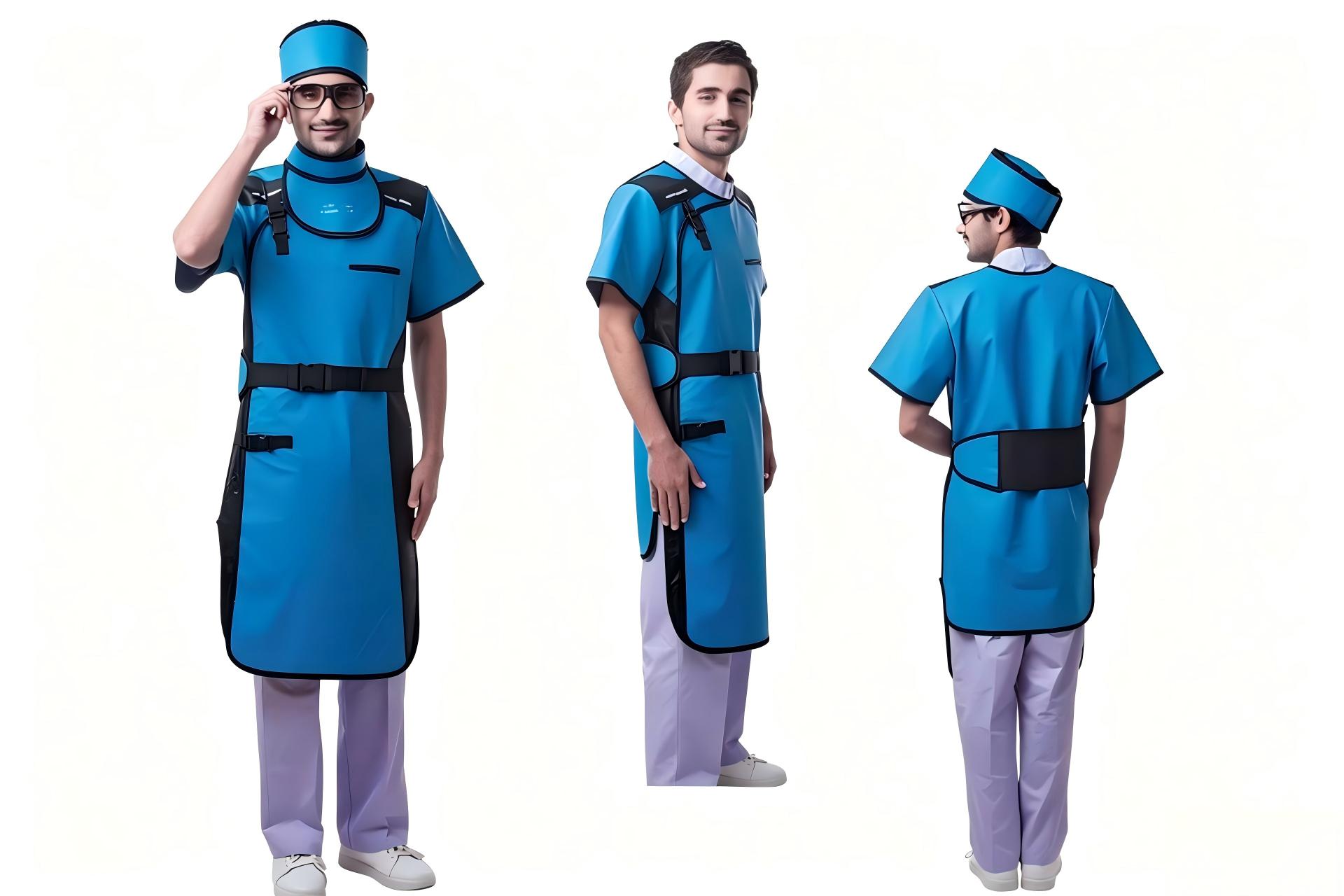

Light‑weight X‑ray lead apron, reliable radiation shielding for hospital radiography examinations.
Feature
Made of lightweight lead‑rubber material, comfortable for long‑time wearing.
Split‑style skirt‑and‑vest design, easy to put on and take off.
Effective X‑ray radiation shielding, protects users from ray harm.
Available for both adults and children, suitable for CT and radiography rooms.
Soft and flexible garment, great for daily hospital clinical use.
Reference Size of Radiation Protective Clothing
SIZE LENGTH WIDTH
APPLICABLE TO HEIGHT WEIGHT S 850mm 550mm 150~160cm 60~65kg M 900mm 550mm 160~170cm 65~70kg L 1000mm 600mm 170~180cm 75~90kg XL 1100mm 600mm ≥180cm 75~95kg
| SIZE | LENGTH | WIDTH | APPLICABLE TO HEIGHT | WEIGHT | |
| S | 850mm | 550mm | 150~160cm | 60~65kg | |
| M | 900mm | 550mm | 160~170cm | 65~70kg | |
| L | 1000mm | 600mm | 170~180cm | 75~90kg | |
| XL | 1100mm | 600mm | ≥180cm | 75~95kg | |
Fabric Color Optional
Product Instruction
Operation Manual of Medical X-ray Protective Apron
I.[Performance]
The lead equivalent of the protective apron:0.25mmPb,0.35mmPb,0.5mmPb.
II.[Purpose]
The protective apron is mainly used for for the protection of human body during radiological diagnosis.
Ⅲ.[Application]
It is suitable for the X-ray protection.
IV.[Directions for Use]
Before operation,the operator should check whether the inner and outer surface packing cloth of the protective apron is firm or not,whether the connection of accessories is firm,check whether the lead
equivalent on the label is in line with the equivalent required by the operator.After the examination,put on the protective apron,and then start the operation.
V.[Attention]
1.After the operation,lay the protective products flat or hang them up by coat hangers to avoid breach caused by a long-time fold and avoid radial leak.
2.when the surface is dirty,should first use a low concentration of cleaning solution or a small amount of washing powder with a soft brush to scrub,and then clean with clean water,and then directly put it in the ventilated place to dry.
3.The protective products should be inspected regularly.The inspection method is to touch the cloth
with hands or remove the cloth surface for visual observation.If there is crack or damage,the products cannot be used and must be scrapped and replaced.
VI.[Storage Conditions&Method]
It should be placed in a well-ventilated room away from direct sunlight and heat source.It is strictly prohibited to contact with acid,alkali and other chemicals.
VII.[useful life]
4 years.
VIII.[X-ray Tube Voltage]
100kV
Series
PA Series
PC PD PDW Series（Lead-free）
