Application Scenarios

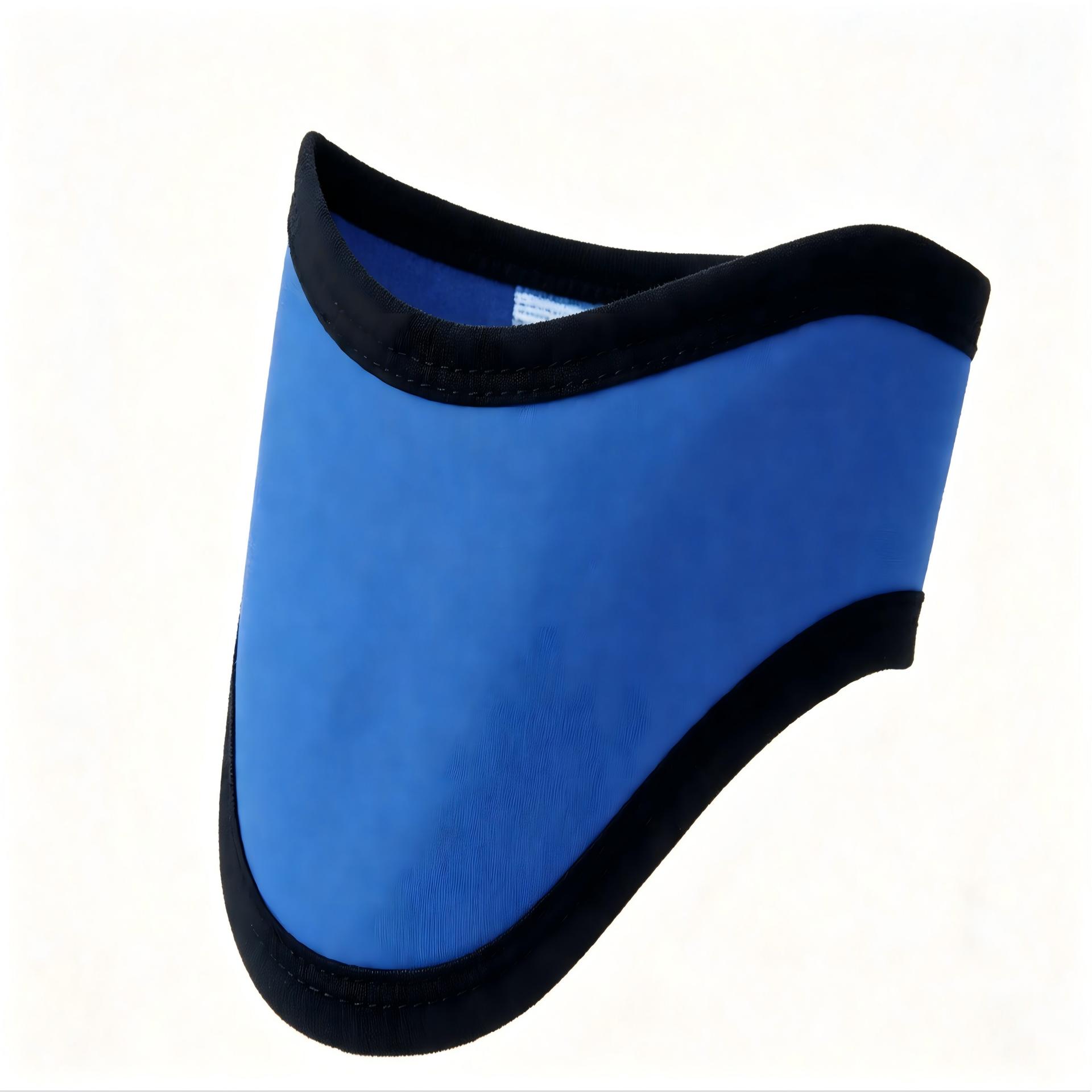

Lead Collar

0.35/0.5mmPb Lead Thyroid Collar, effective neck radiation protection for X‑ray examination.

Feature

•  Available in 0.35mmPb and 0.5mmPb lead equivalents to meet different shielding requirements.

•  Effectively protects thyroid gland from scattered X‑ray radiation during examinations.

• Light‑weight and soft material, brings comfortable wearing experience for users.

•  Suitable for hospital radiology, dental clinics and veterinary imaging scenarios.

• Compact size, easy to wear and take off, convenient for daily clinical operation.




  Product Instruction

  Operation Manual of Medical X-ray Protective Collar

  I.[Performance]

  The  lead  equivalent  of the  protective  apron:0.25mmPb,0.35mmPb,0.5mmPb.

  II.[Purpose]

  The protective collar is mainly used for for the protection  of human  body during radiological diagnosis.

  Ⅲ.[Application]

  It is suitable for the X-ray protection.

  IV.[Directions for Use]

  Before operation,the operator should check whether the inner and outer surface packing of the protective collar is firm or not,whether the connection of accessories  is firm,check  whether  the  lead equivalent on the label is in line with the equivalent required by the operator.After the examination,put  on the protective  collar,and then  start  the  operation.

  V.[Attention]

  1.After the operation,lay the protective products flat or hang them up by coat hangers to avoid breach caused by a long-time fold and avoid radial leak.

  2.when the surface is dirty,should first use a low concentration of cleaning solution or a small   amount of washing powder with a soft brush to scrub,and then clean with clean water,and then directly put it in the ventilated place to dry.

  3.The protective products should be inspected regularly.The inspection method is to touch the cloth

  with hands or remove the cloth surface for visual observation.If there is crack or damage,the products cannot be used and must be scrapped and replaced.

  VI.[Storage   Conditions&Method]

  It should be placed in a well-ventilated room away from direct sunlight and heat source.It is strictly prohibited to contact with acid,alkali and other chemicals.

  VII.[useful life]

  4 years.

  VIII.[X-ray Tube Voltage]

  100kV
