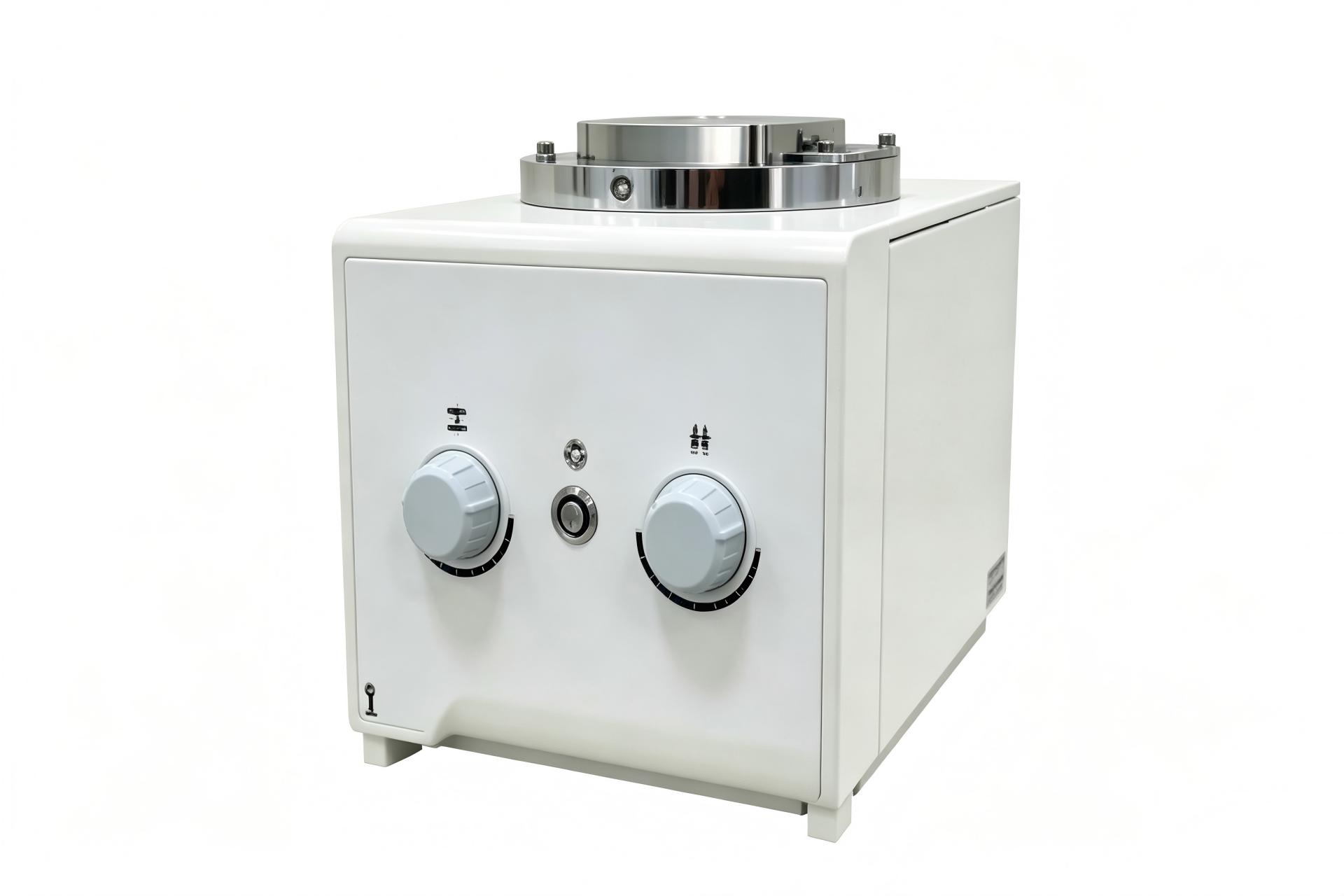

NK-RM202NC+

Reliable double‑lead‑blade beam limiter, delivering precise radiation control for 150KV fixed X‑ray systems.

Feature

• Wide compatibility, works with mobile and fixed X‑ray machines for 125KV X‑ray tubes.

• 24V 100W positioning lamp with 30‑second lighting time for fast accurate positioning.

• Manual optional single‑layer lead leaf adjusts radiation area and reduces scattered rays.

• Compact lightweight body, easy to install and integrate into X‑ray systems.


  Technical Data

  X-ray tube maximum voltage	150 KV
  Maximum exposure field	440 x 440 mm² (SID = 1000 mm)
  Lead leaf control mode	manual
  Power supply	24 V AC  (±10%)
  Appearance size mm	206x247x155
  Weight(excluding cables)	8.4±0.5kg
