Function Introduction

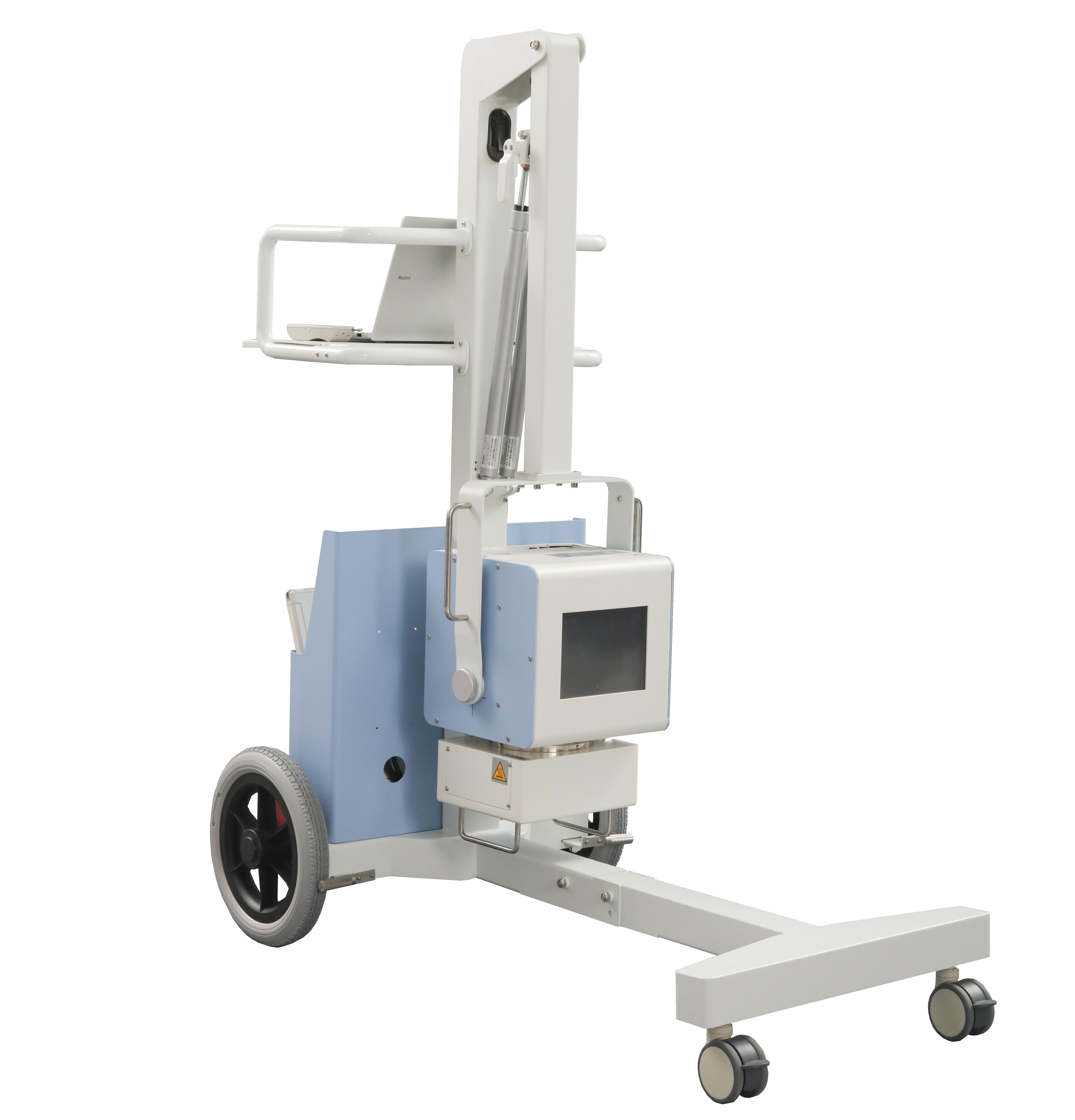

Mobile Digital Radiography-NK17FY

Ultrahigh-frequency generator

• Working frequency reaches up to 500kHZ.
• Delivers higher quality images with lower X-ray dose.

Built-in large lithium battery

• Supports cordless use in emergency and operating rooms.
• Ensures efficient running and standby operation.

Automatic distance & angle measurement

• Automatically measures distance and angle for various scenarios.
• Simplifies positioning and enhances imaging accuracy.

Proven Components

Tube

• 40-150kV tube voltage with a versatile 0.6-1.2mm focal spot.
• High 240 kHU heat capacity and robust 2700rpm anode speed.

Flat-Panel Detector

• Large 430x430mm active area with a 139μm pixel pitch.
• 16-bit conversion paired with wireless CsI/Gadox scintillator design.

Generator

• 32kW power with a 150kV range and ultra-fast 500kHz frequency.
• Supports 110/220V inputs with precise mA and mAs controls.
