Application Scenarios

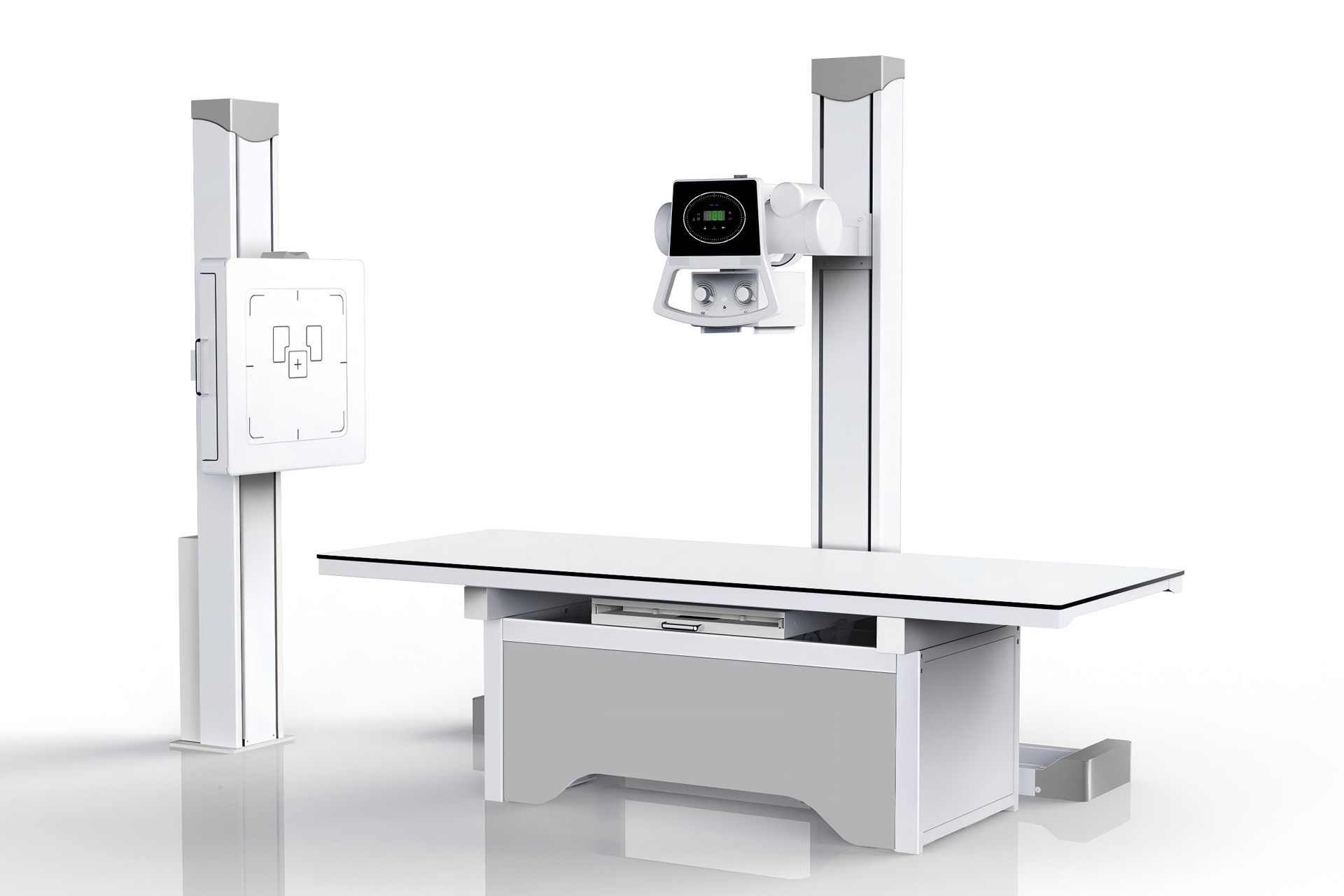

JS-500
It is widely used for general radiography diagnosis in clinics, township hospitals and primary medical institutions.
Features
High-precision Electric Following
Self-developed control system, paired with closed-loop control algorithm. Strong anti-interference capability, low power
consumption, safe with self-locking.
Easy To Install And Debug
Lightweight, split installation, integrated control with easy wiring.Easy to complete rack positioning and system debugging.
Digital LED Control Screen
Display the height of the tube and bucky, the Angle of the tube, the SID distance, etc. High brightness with large angle of view.
High Definition Image Display
Ten Millions of pixels imaging, diverse processing algorithms. Support real-time DAP monitoring , AEC exposure and one-click splicing.
Specification
| NO | Description | Specification | |||
| Standard | Advanced | Flagship | |||
| 1 | High frequency Generator | EST | CPI | SIEMENS | |
| 380V,50KW | 380,50KW | 380V,50KW | |||
| 2 | X ray Tube | EST | TOSHIBA | SIEMENS | |
| 40~150KV, 500ma | 40~150KV, 630ma | 40~150KV, 630ma | |||
| 3 | Collimator | EST | EST | EST/SIEMENS | |
| 4 | Vertical Bucky Stand | EST | EST | EST | |
| 5 | Radiographic Table | 4-way/6-way | 6-way | 6-way | |
| 6 | Flat-panel Detector | HJPI(Fixed,70lp/cm,R10,f0150) | |||
| 7 | High-density Al-interspaced | HJPI(Fixed,70lp/cm,R10,f0150) | |||
| 8 | Image Acquisition System | EST | EST | EST | |
| 9 | System contral software | EST | EST | EST | |
| 10 | H.V.Cables | EST | EST | EST | |
