Application Scenarios

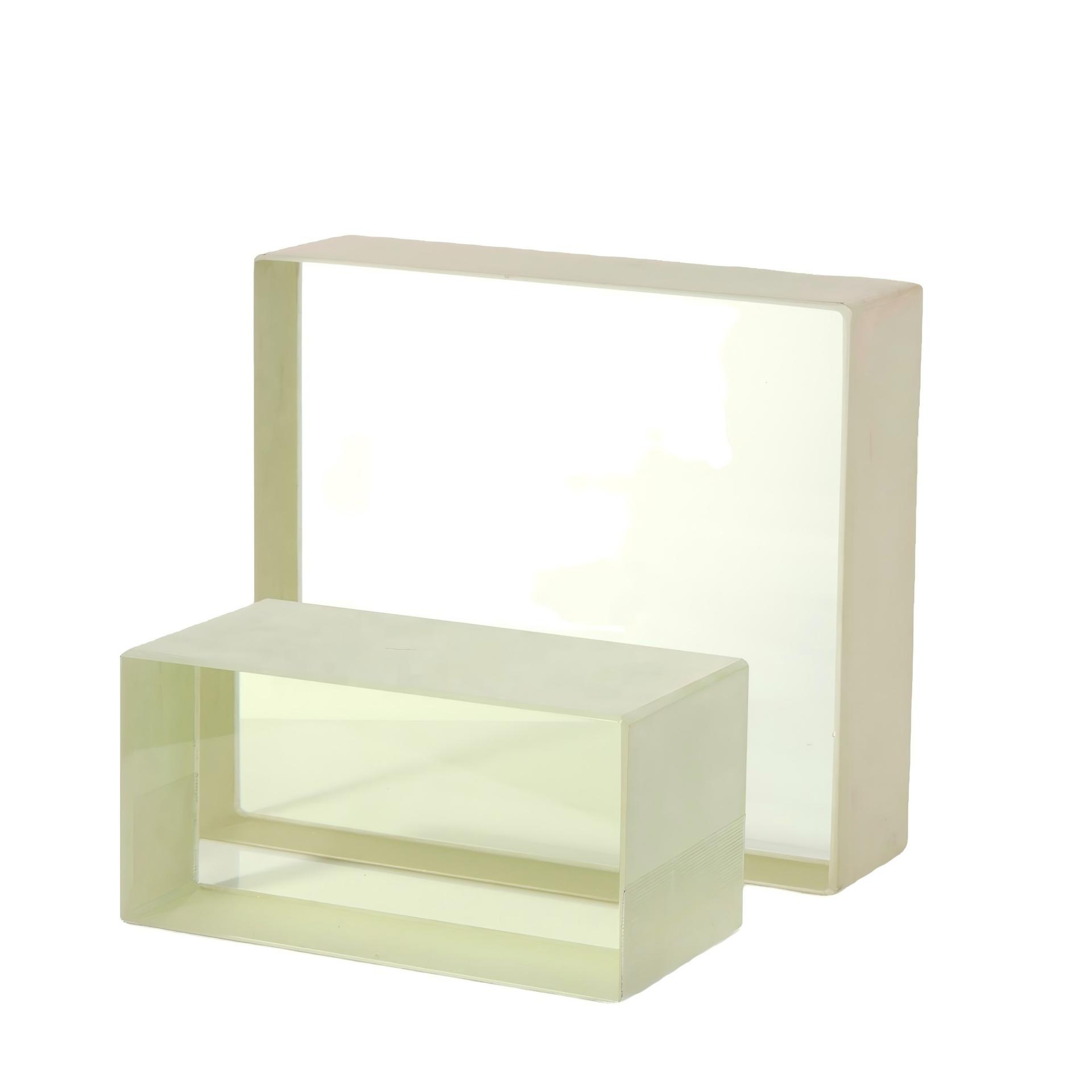

ZF2,ZF3,ZF6,ZF7

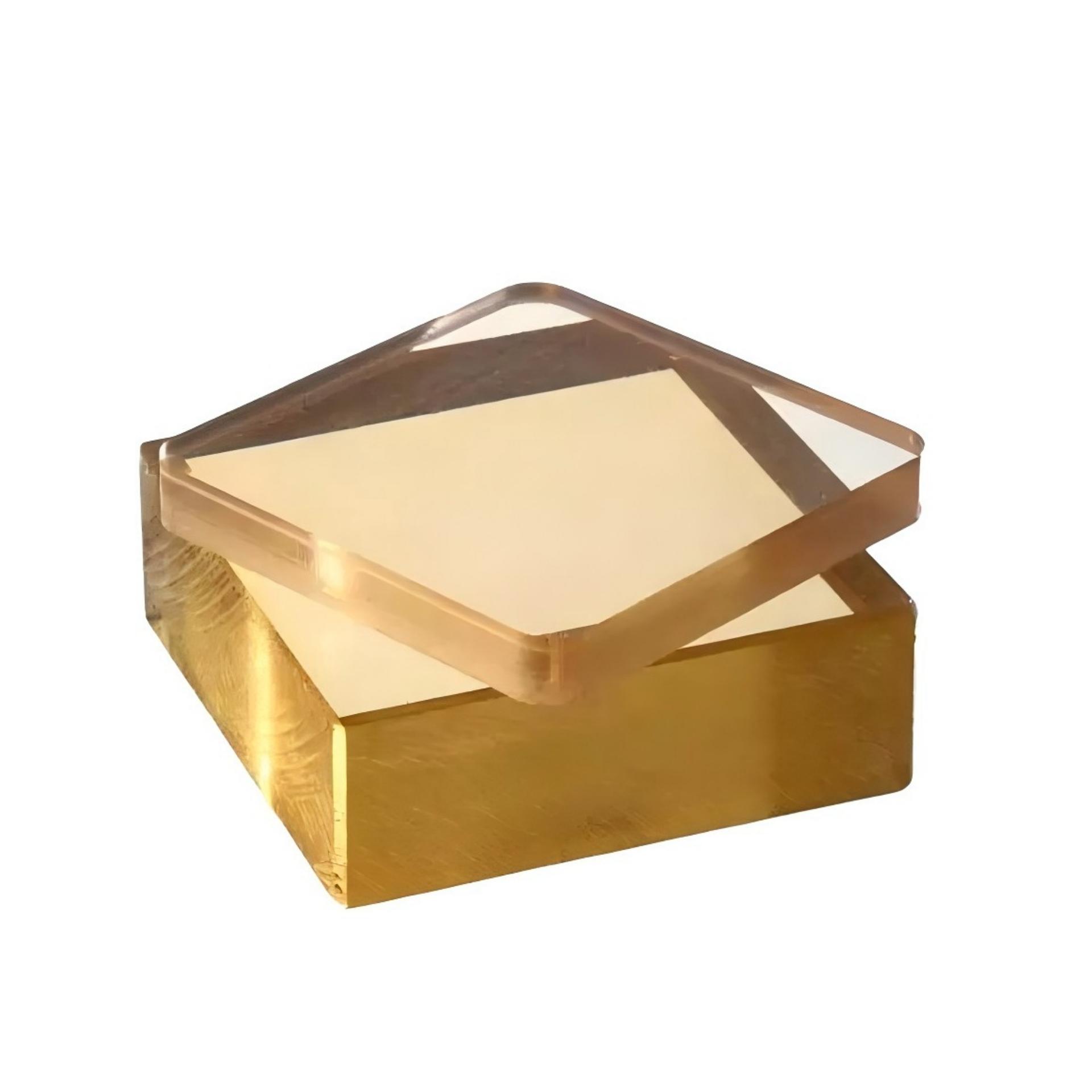

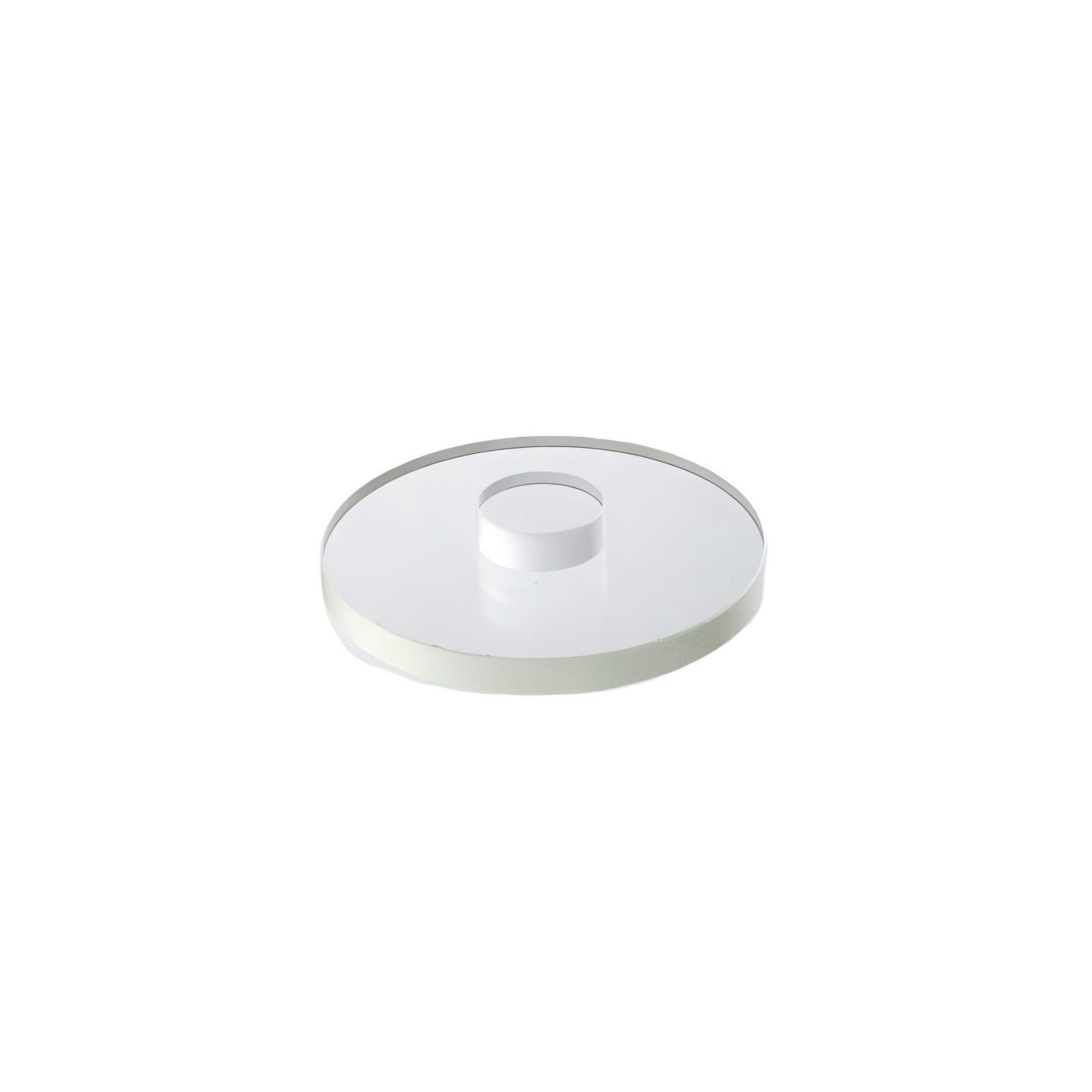

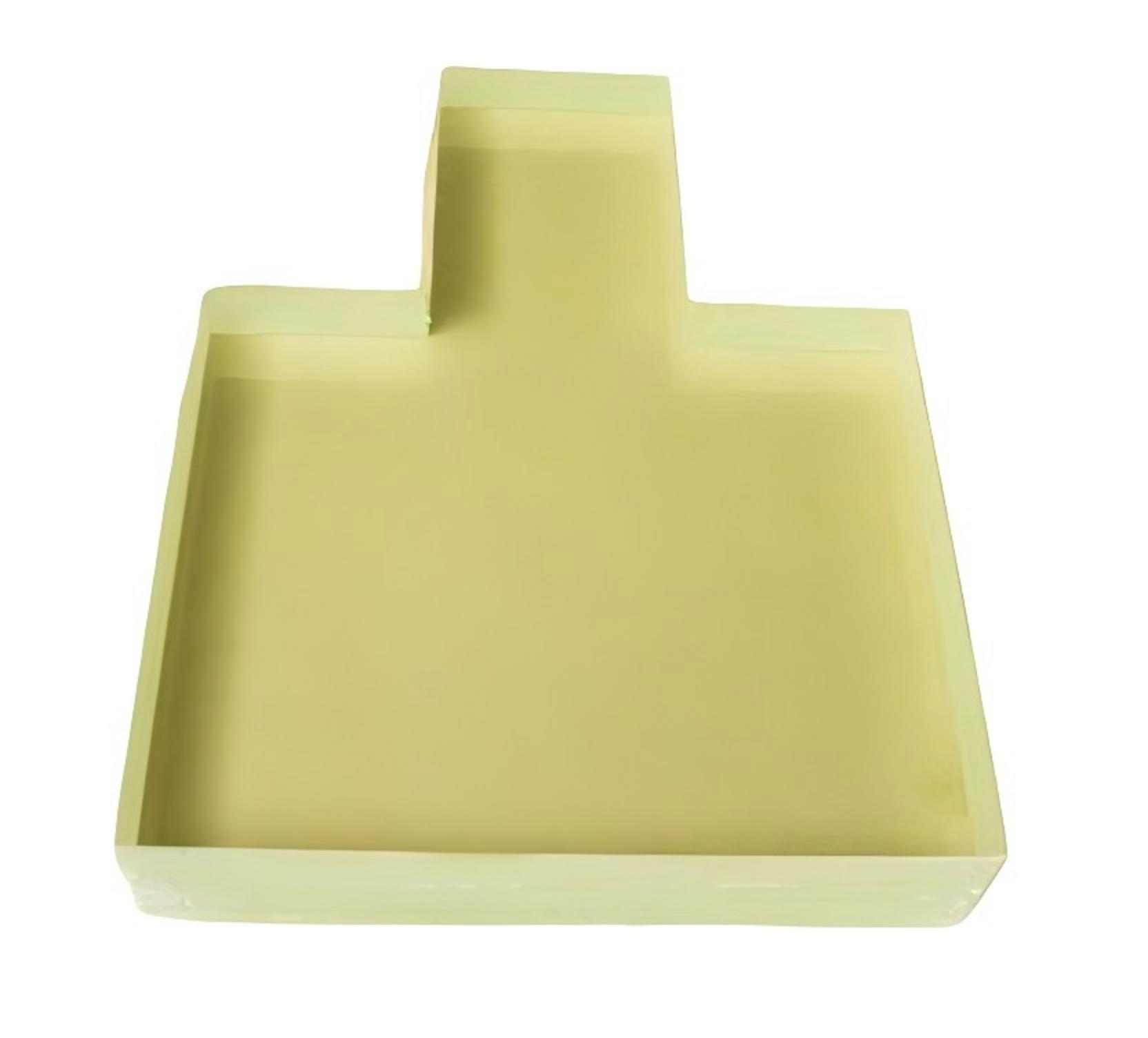

ISO CE certified X‑ray lead glass, high‑performance radiation shielding glass for hospital CT and radiography rooms.

Feature

• Meets ISO and CE certification standards, reliable quality for medical application.

•  Excellent X‑ray radiation shielding performance, effectively blocks harmful rays.

• Clear visual perspective, convenient for doctors to observe operating conditions.

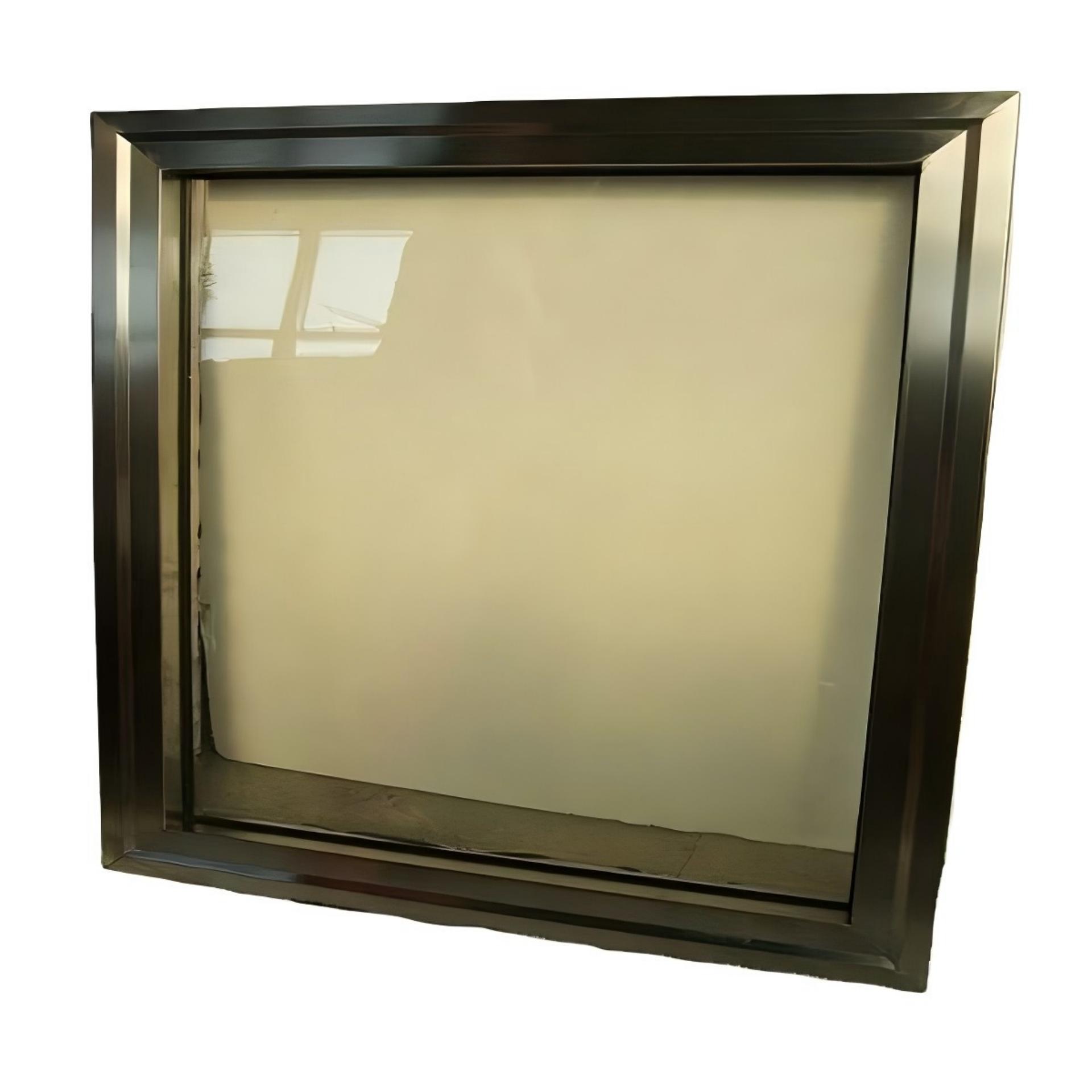

•  Customizable available size, fits various observation window installation demands.

• Stable physical property, long service life for hospital daily clinical environment.


  Technical Data

  Serial No.	Lead Glass Size(mm)	Thickness(mm)	Lead Equivalent(mmPb)
  1	2000*1200	18-20	4
  2	2000*1000	18-20	4
  3	2000*1000	14-15	3
  4	1800*1000	18-20	4
  5	1800*1000	14-15	3
  6	1500*1000	18-20	4
  7	1500*900	19-20	4
  8	1500*900	17-18	3.6
  9	1500*900	14-15	3
  10	1200*1000	19-20	4
  11	1200*1000	14-15	3
  12	1200*900	19-20	4
  13	1200*900	14-15	3
  14	1200*800	23-24	5
  15	1200*800	19-20	4
  16	1200*800	16-17	3.5
  17	1200*800	14-15	3
  18	1200*800	9-10	2
  19	1000*800	19-20	4
  20	1000*800	14-15	3
  21	900*600	18-20	4
  22	900*600	14-15	3
  23	800*600	14-15	4
  24	800*600	9-10	3
  25	600*400	14-15	3
  26	600*400	9-10	2
  27	400*300	14-15	3
  28	400*300	9-10	2
  29	356*356	8	1.6



  Product Instruction

  Operation Manual of Medical X-ray Protective Glass

  I.[Performance]

  The  lead  equivalent  of the  protective  glass:0.25mmPb,0.35mmPb,0.5mmPb and so on

  II.[Purpose]

  The protective glass is mainly used for for the protection  of human  body during radiological diagnosis.

  Ⅲ.[Application]

  It is suitable for the X-ray protection.

  IV.[Directions for Use]

  Before operation,the operator should check whether the inner and outer surface packing of the protective glass is firm or not,whether the connection of accessories  is firm,check  whether  the  lead equivalent on the label is in line with the equivalent required by the operator.After the examination, start  the  operation.

  V.[Attention]

  1.when the surface is dirty,should first use a low concentration of cleaning solution or a small   amount of washing powder with a soft brush to scrub,and then clean with clean water,and then directly put it in the ventilated place to dry.

  2.The protective products should be inspected regularly.The inspection method is to touch the cloth

  with hands or remove the cloth surface for visual observation.If there is crack or damage,the products cannot be used and must be scrapped and replaced.

  VI.[Storage   Conditions&Method]

  It should be placed in a well-ventilated room away from direct sunlight and heat source.It is strictly prohibited to contact with acid,alkali and other chemicals.

  VII.[useful life]

  4 years.

  VIII.[X-ray Tube Voltage]

  100kV
