Application Scenarios
4343ZF

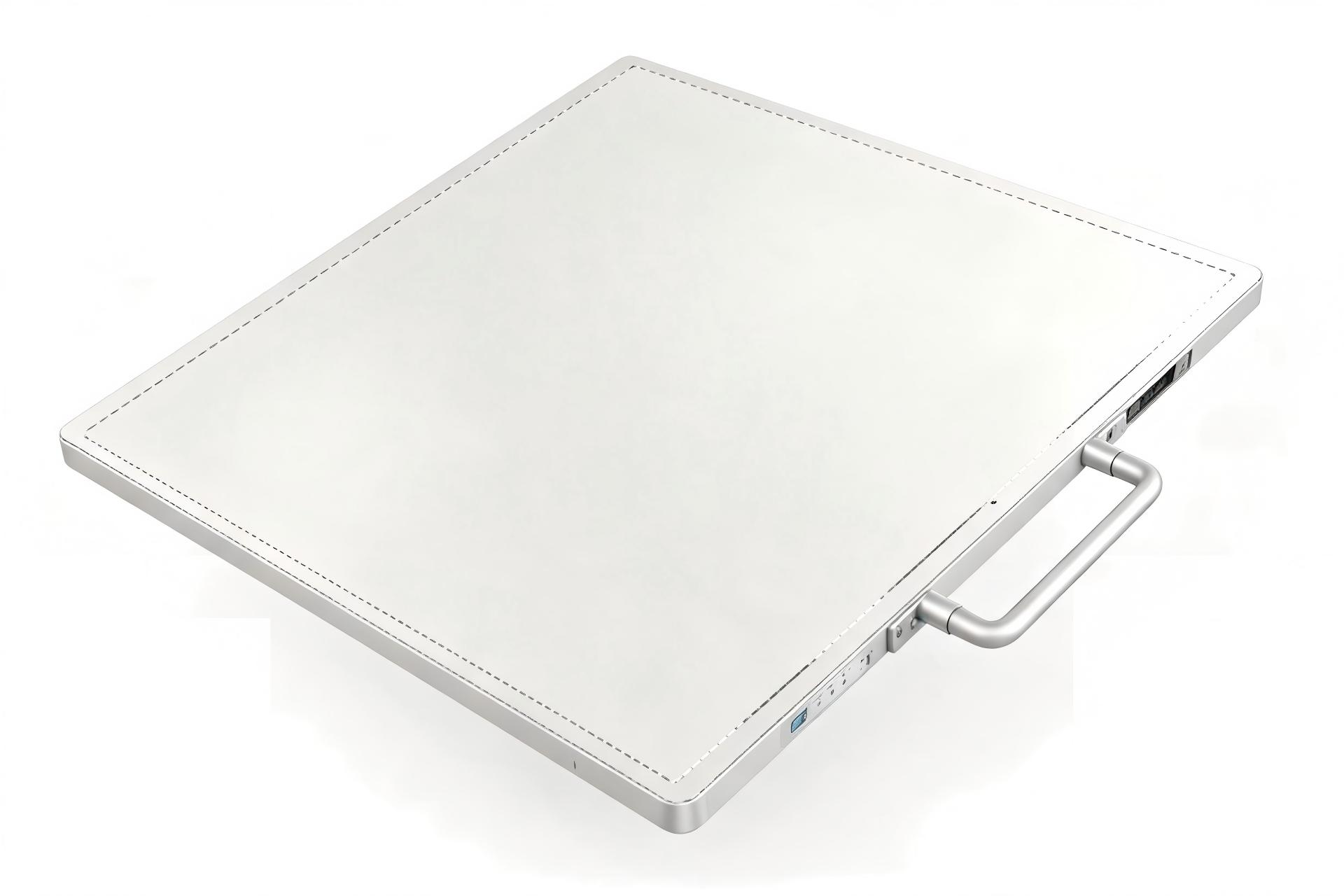

High‑performance 17×17'' DR flat panel detector, reliable wired & wireless digital radiography solution.
Technical Data
| Model Name | 4343ZF | |
| Detector Technology | a-Si | |
| Scintillator | Csl | |
| Spatial Resolution | 5LP/mm | |
| Imaging Size | 42.6x 42.6(17*17IN) | |
| Pixel Matrix (Resolution) | 4302 × 4302 | |
| Pixel Pitch(μm) | 99 | |
| A/D Conversion | 16bit | |
| X‑ray Voltage Range | 40‑150KV | |
Image Acquisition Time (Wired/Wireless) | 1s/2～3s | |
| Data Interface | GigE /802.11ac | |
| Battery standby time | 14H | |
| Adapter Input | AC100‑240V,50‑60Hz | |
| Adapter Output | DC 24V,60W | |

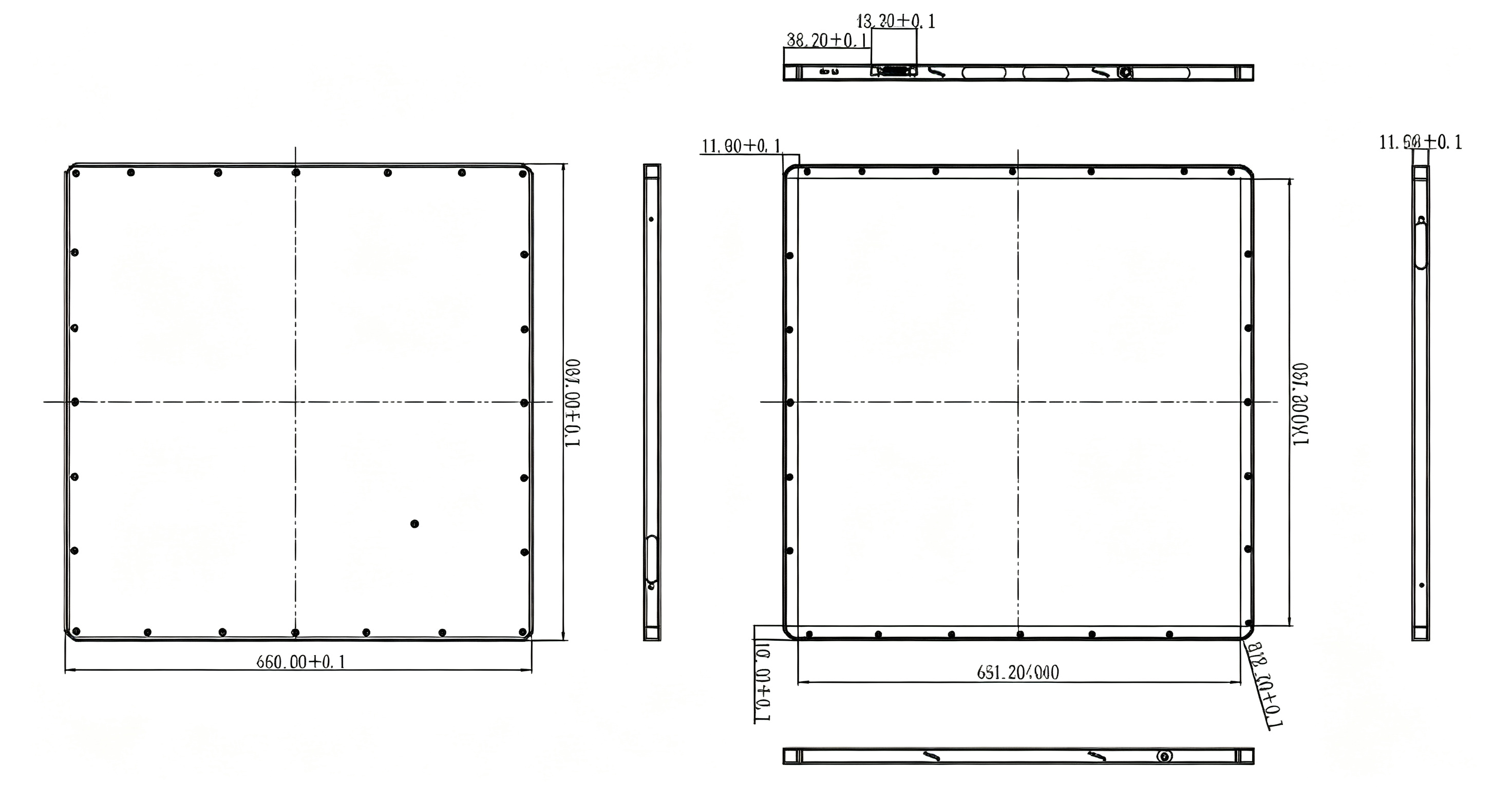

| Dimensions | 46.0×46.0×1.5cm | |
| Power Dissipation | 20W | |
| Detector Housing Material | Carbon, Alloy | |
| Weight (Wireless with Batteries) | 3.5kg | |
| Operating Environment | 5‑35℃,10‑75% RH | |
| Water tightness | IP56 | |
