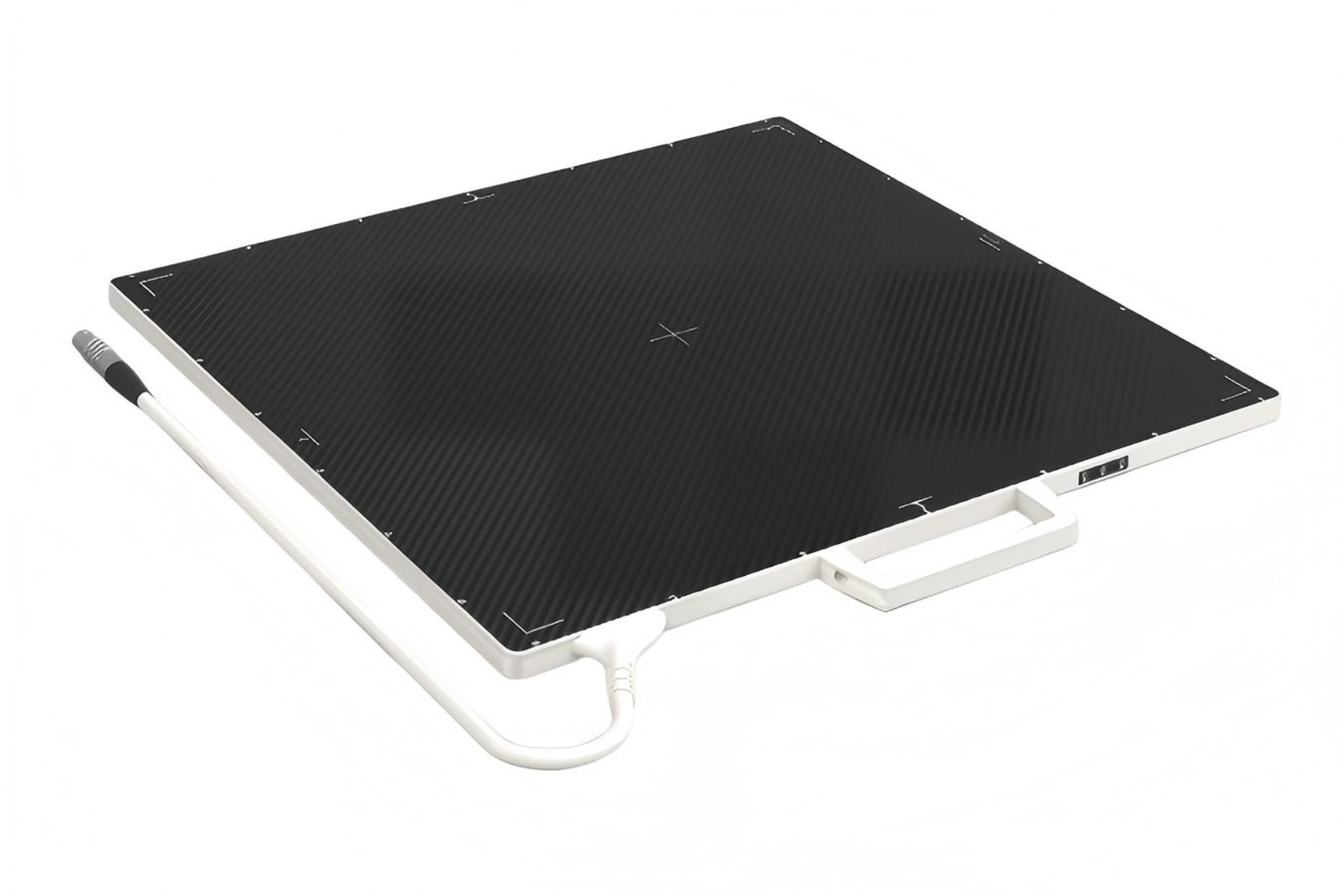

4343aFRM
High‑performance dynamic FPD delivers sharp images for digital radiography & fluoroscopy.
Feature
- Features low‑noise circuit to obtain high‑clarity X‑ray images.
- Built‑in CSI a‑Si scintillator ensures outstanding imaging performance
- Wired transmission provides steady signal for dynamic fluoroscopy
- Compatible with both digital radiography and real‑time fluoroscopy.
- Compact structure for simple integration into different DR systems
Technical Data
| Interface | ||
| Parameter | Specification | |
| Data Interface | Gigabit Ethernet | |
| Exposure Control | Pulse Sync In/Pulse Sync Out | |
| Frame System | Windows/Windows 10,32-bit or 64-bit | |
| Technical Performace | ||
| Parameter | Specification | |
| Resolution | 3.5Ip/mm | |
| Energy Range | 40-160kV | |
| Dynamic Range | ≥82 dB | |
| Mechanical | ||
| Parameter | Specification | |

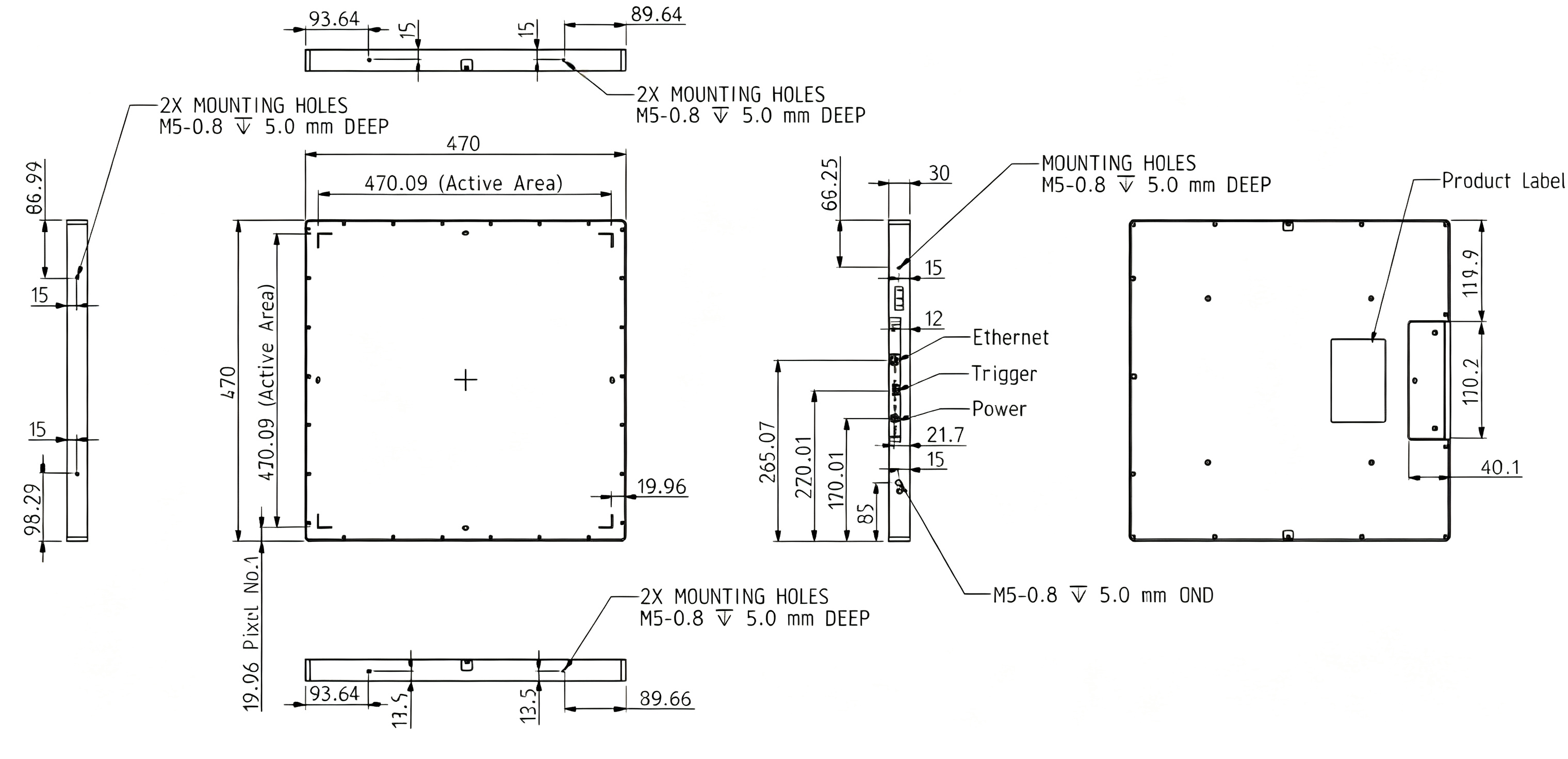

| Dimension(H×W×D) | 470×470×30mm | |
| Weight | 9.5kg | |
| Sensor Protection Material | Carbon Fiber | |
| Housing Material | Aluminum Alloy | |
| Environmental | ||
| Parameter | Specification | |
| Temperature Range(Operation) | 10-30℃ | |
| Temperature Range(Storage) | -10-50℃ | |
| Humidity | 30-70% RH,non-condensing | |
| Vibration | IEC 60068-2-64,1G,5-500Hz(operating) | |
| Shock | IEC 60068-2-64,2G,11 ms(operating) | |
| Dust and Water Resistance | IPX0 | |
| Power | ||
| Parameter | Specification | |
| Supply | 100-240VAC | |
| Frequency | 50/60Hz | |
| Consumption | 17W | |
