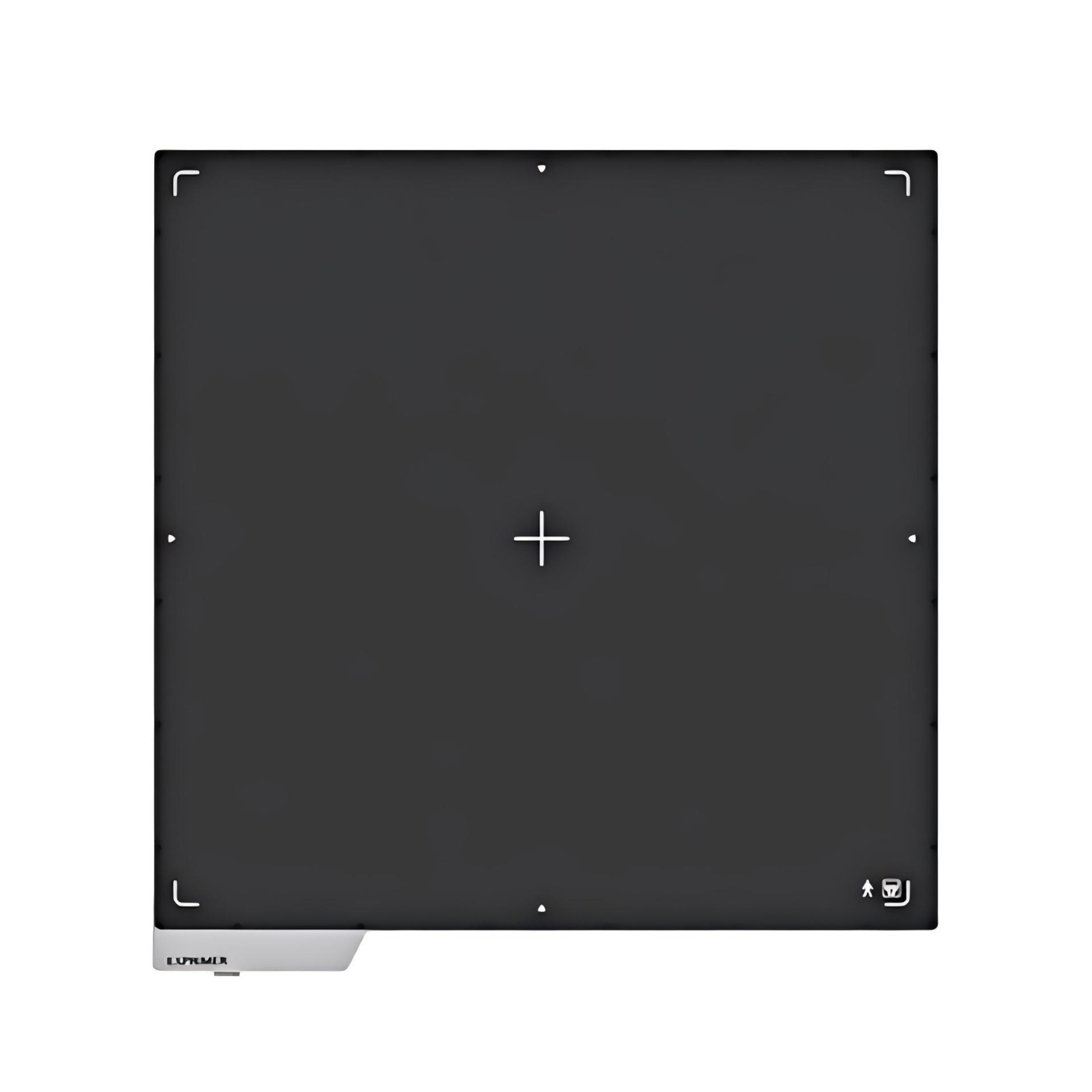

EVS4343A
High‑stability CSI digital flat‑panel detector for medical DR X‑ray imaging.
Feature
- Increased Dose Efficiency and Image Quality by Q-Platform
- Improved Patient Throughput and Fast Workflow
- High DQE / MTF Value
- TRUVIEW®ART, Advanced Reverse Filtering Technology
Technical Data
| CPU | Intel i5-6500 | |
| RAM | 8 GB | |
| Local Storage | Hard disk capacity: 1 TB Image storage capacity: more than 15000 images at full resolution | |
| Operating System | Windows 7 Pro 32 / Windows8, Windows10 | |
| Image Size | Up to 19 MB depending on the exam type, without any compression | |
| Patient Data Input | Keyboard, HIS/RIS connection | |
| Cycle Time | ≤ 7 sec | |
| Connectable Sensors | Up to 3 digital detectors with semi-automatic selection according to the selected procedure | |
| Image Zoom | Full expand 200% , Partially expand 400% | |
| Connectivity | System can be connected to DICOM-compatible devices through Ethernet port | |
| Supported DICOM Classes | - Print (SCU) - Storage (SCU) - Modality Worklist (SCU) - MPPS (SCU) | |
| Media Device | The workstation is equipped with a CD/DVD burner to export acquired images in DICOM format with internal DICOM viewer. (Possible to Export other image format (BMP, JPG, PNG, TIF) in drive storage.) | |
| DICOM Output | 10, 12, 16 bits (Depend on detector`s image bits stored) | |
| Data Safety and Privacy | Password protection and account management. | |
