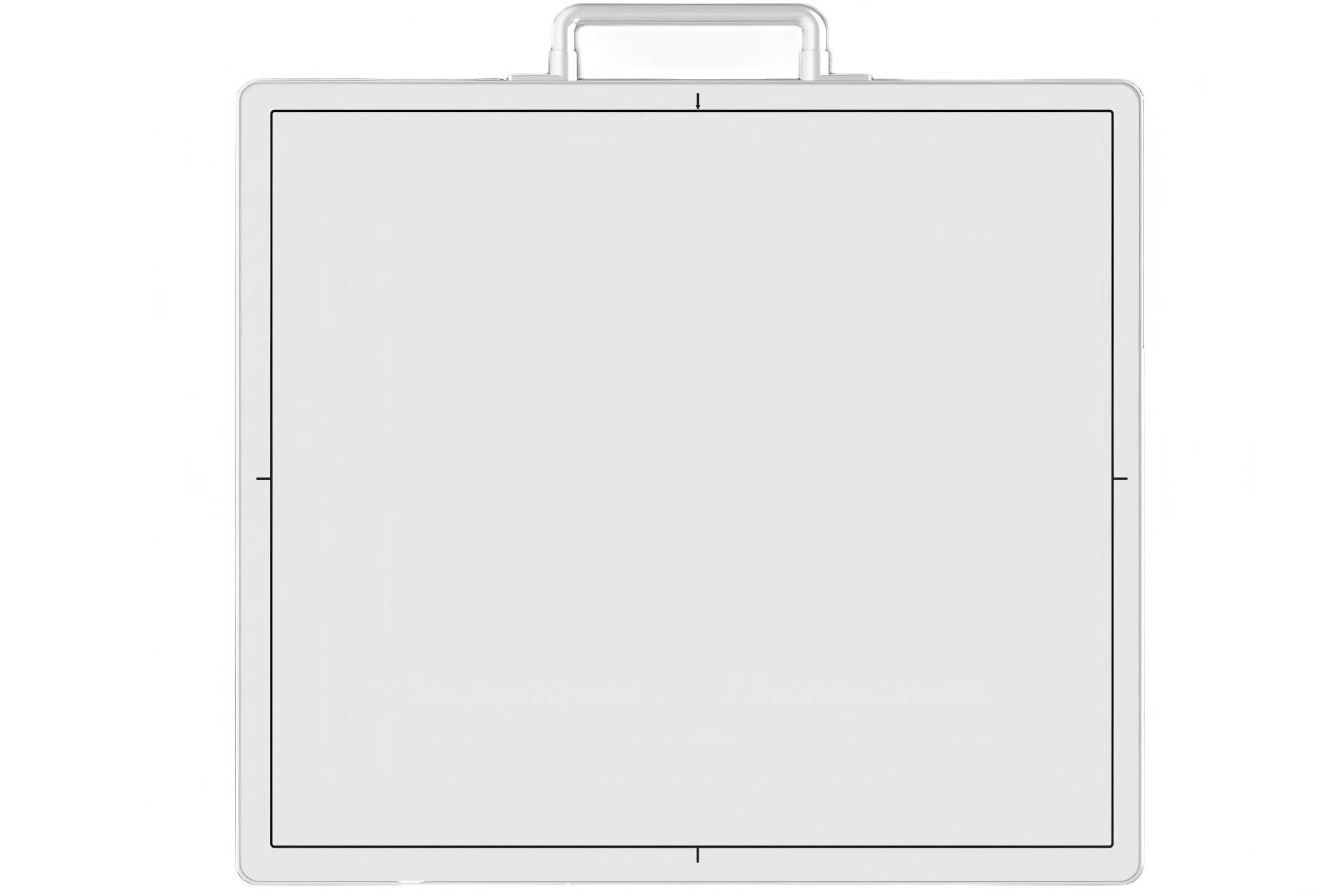

4343Z
High‑quality 4343Z wired FPD for medical‑diagnostic X‑ray systems.
Feature
- Adopts CSI scintillator for excellent‑quality X‑ray imaging.
- Supports both human and veterinary radiology examinations.
- Wired connection ensures stable and reliable data transmission
- Delivers high‑resolution images for accurate diagnosis.
- Compact structure, easy to integrate into various X‑ray systems.
Technical Data
| Model Name | 4343Z (wired) | |
| Detector Technology | a-Si | |
| Scintillator | CsI | |
| Imaging Area Size (CM) | 43 x 43(17*17IN) | |
| Pixel Matrix (Resolution) | 3,072 × 3,072 | |
| Pixel Pitch(μm) | 139 | |
| A/D Conversion | 16bit | |
| Minimum Detectable Dose | 14nGy | |
| Maximum Linear Dose | 110μGy | |
| Spatital Resolution | 3.6LP/mm | |
| X-ray Voltage Range | 40-150KV | |
| Image Acquisition Time | 1s (wired) | |
| Data Interface | GigE | |
| Adapter Input | AV100-240V, 50-60Hz | |
| Adapter Onput | DC 24V, 60W | |
| Power Dissipation | 20W | |

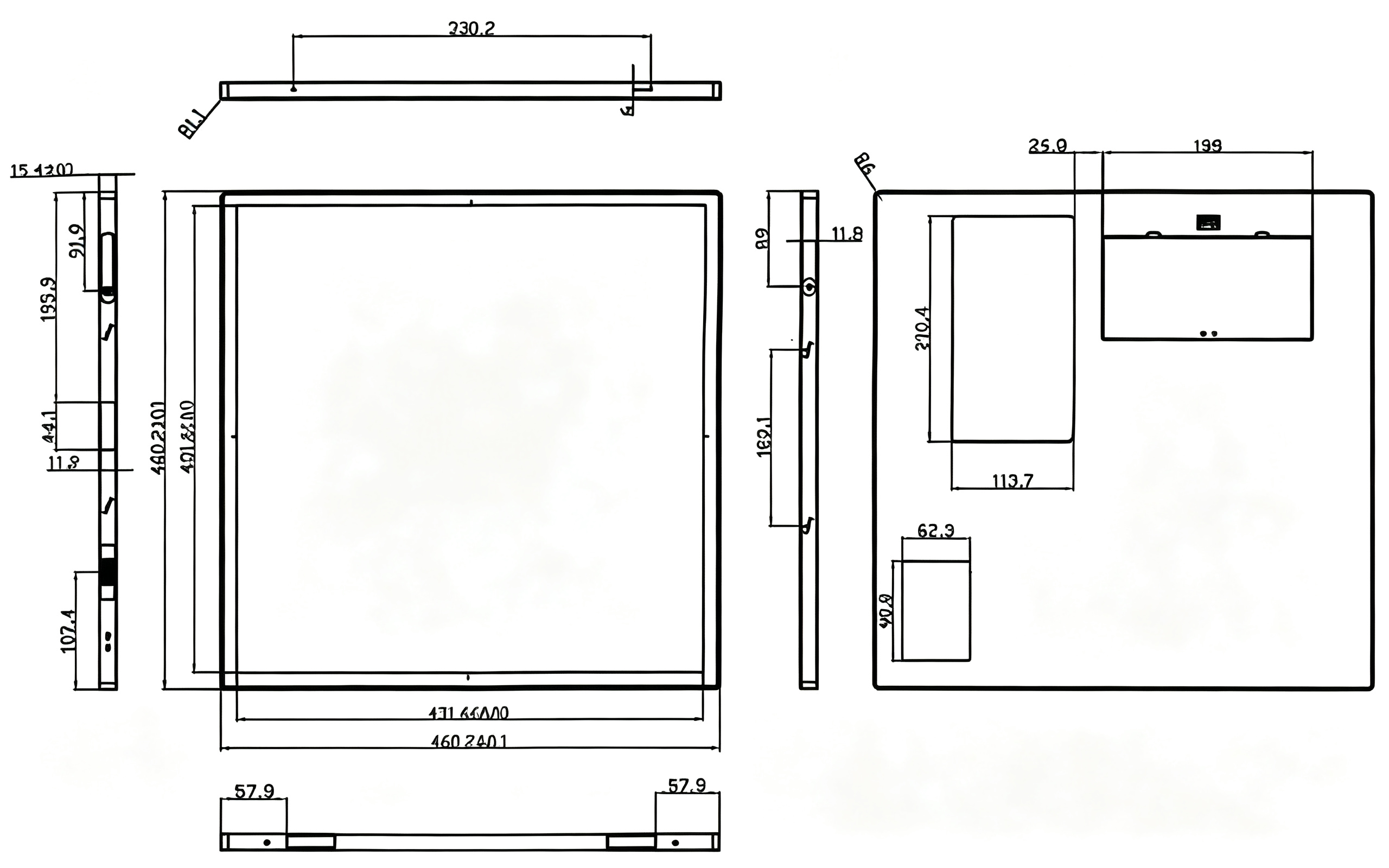

| Dimension | 46.0 × 46.0 × 1.5 cm | |
| Weight | 3.2kg | |
| Detector Housing Material | Cabon, PC+ABS | |
| Operating Environment | 5-35℃,10-75%RH | |
| Water tightness | IP54 (IP56 optional) | |
