Application Scenarios

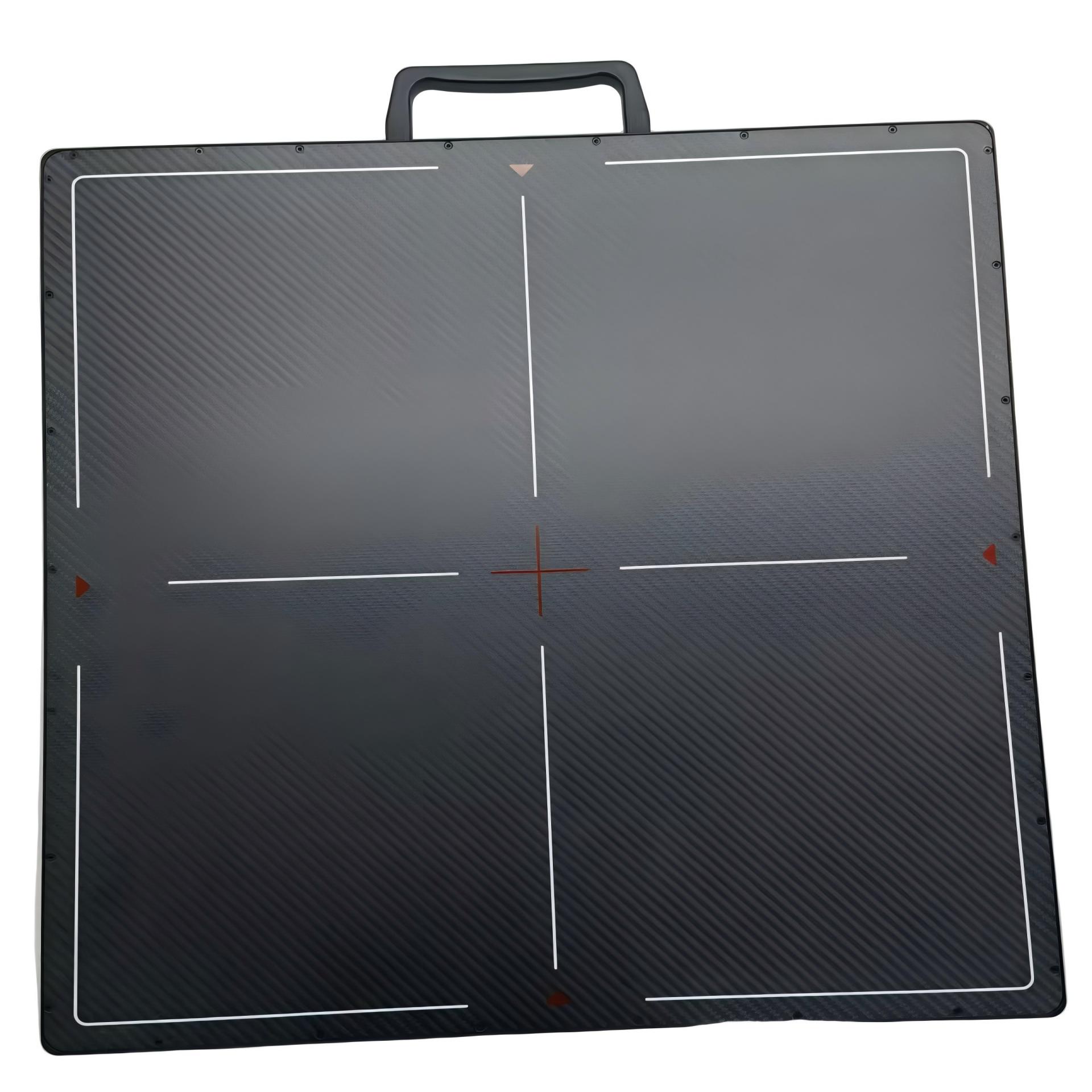

DY-4343W
DY‑4343W wireless FPD for large‑field medical DR imaging.
Feature
- A highly reliable wireless DR detector for large‑field medical imaging.
- High‑reliability wireless DR detector suitable for large‑area medical imaging.
- Reliable wireless DR detector optimized for large‑field clinical imaging.
Technical Data
| Detector | DY-4343W | |
| Sensor | a-Si | |
| Scintillator Type | Perovskite / CsI | |

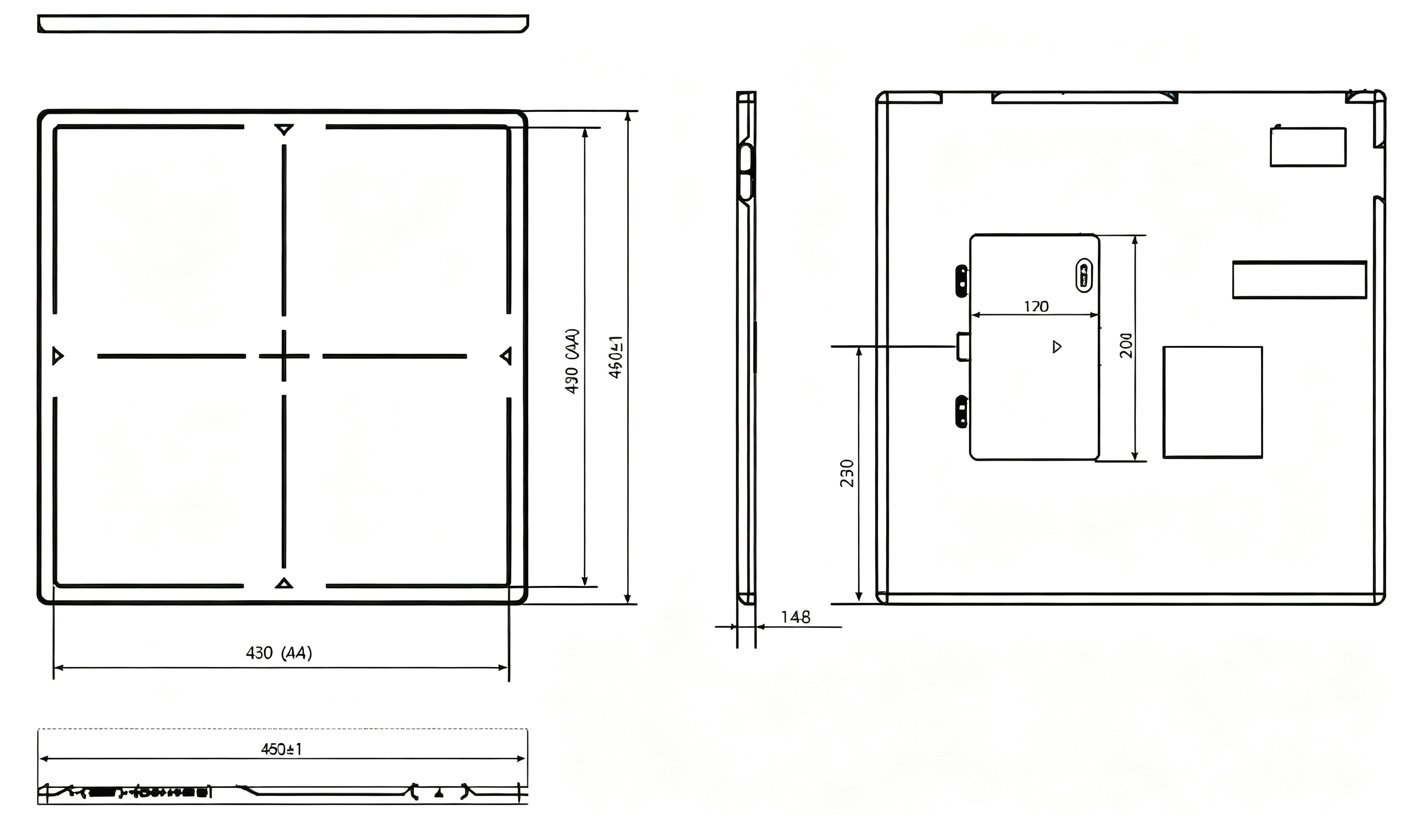

| Dimensions | 460 x 460 x 15 mm | |
| Weight | 3.7 kg | |
| Power Consumption | 12 W | |
| Active Area | 430 x 430 mm | |
| Pixel Size | 139 μm | |
| Pixel Matrix | 3072 x 3072 | |
| Image Output Time | 1S | |
| Limited Resolution | 3.6 lp/mm | |
| A/D Conversion | 16 bit | |
| Data Interface | GigE | |
| Operating Temperature | 5~35 ℃ | |
| Storage Temperature | -10~50 ℃ | |
| Operating Humidity | 20~90%RH(Non-condensing) | |
| Storage Humidity | 10~95%RH(Non-condensing) | |
