Application Scenarios
XD9-4/100
XD9-4/100 mainly applied to compact X-ray diagnostic equipment, beside radiography and simple fluoroscpoy etc.
Feature
- XD9-4/100 is a compact fixed-anode X-ray tube rated 100kV, 4kW short power, 35kJ heat capacity and 250W continuous cooling.
- Exposure mA limits drop with higher kV or longer exposure to protect the target.
- Filament current controls tube current in linear and saturation phases for steady imaging dose.
- Anode heat builds up during use and needs coopling intervals to avoid overheating.
- It has a 19° target angle, ≥1.0mm Al filtration and standardlized assembly dimensions.
Technical Data
| Nomical X-Ray Tube Voltage(kV) | 100 |
| Filament Characteristics(V) | Ifmax=4.0A,Uf=6.8±0.7V |
| Material | W |
| Target Angle | 19° |
| Nomianl Focal Spot Value | 2.2 |
| Nomial Anode Input Power(at 0.1s)(kW) | 4 |
| Inherent Filtration | ≥1.0mmAl |
| Weight(kg) | ≤0.6 |
| Max.Anode Heat Capacity | 35kJ |
| Max.Continuous Heat Dissipation(Small) | 250W |

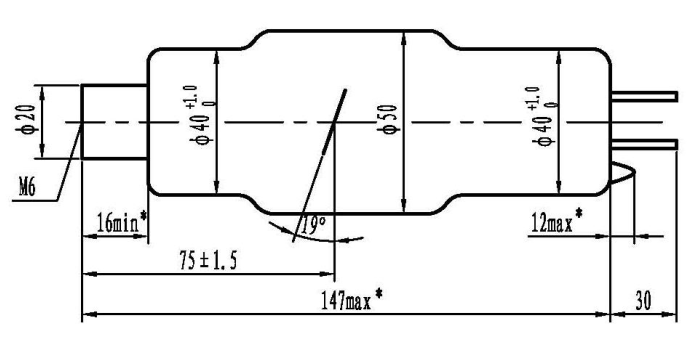

Outline Drawing

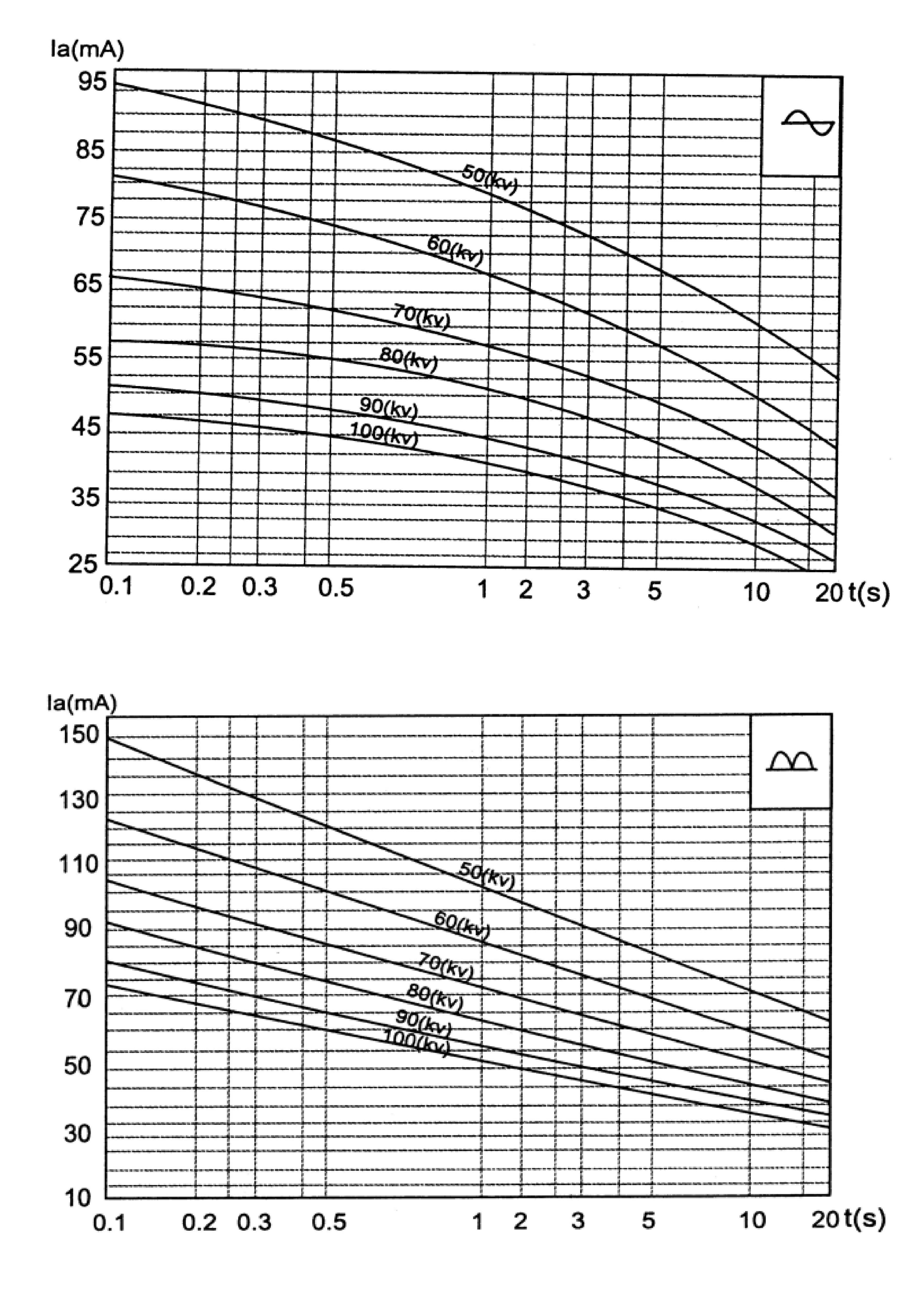

Rating Characteristics

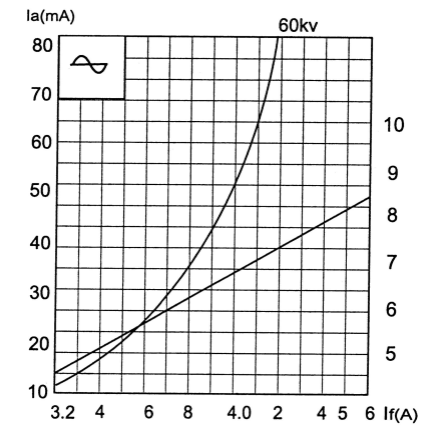

CathodeEmissionCharacteristics

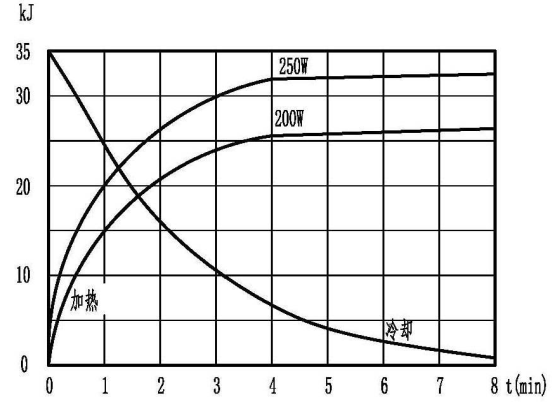

Anode heating and cooling Characteristics
