Application Scenarios
XD6C-1.1,3.6-110
XD6C-1.1,3.6-110 is mainly applied to compact diagnositc X-ray equipment, portable radiography machines etc.
Feature
- Two focal spots(1.0mm/2.6mm)with 1100W/3600W power,max 110 kV for clear and high-power X-ray shots.
- 64 kJ anode heat capacity and 450W continuous working; thermal curves help avoid overheating.
- Independent filament settings with stable current output, easy to adjust with X-ray generators.
- Light and small(≤1.0kg, up to 205 mm long), standard sizes for simple installation.
- 19° tungsten target and 1.0mm Al filter, cuts extra radiation and delivers steady images.
Technical Data
| Nomianl Tube Voltage | 110kV |
| Noaminal Focal Spot(IEC336) | 1.0(S)/2.6(L) |
| Is Exposure Rating | 1100W(S)/3600(L) |
| Filament Characteristics | 3.7±0.6V/4.5A(S) 7±0.8V/4.5A(L) |
| Target Material | Tungsten |
| Taget Angle | 19° |
| Anode Heat Storage Capacity | 64kJ |
| Continuous Rating | 450W |
| Inherent Filtration | Min.1.0mm AI Equivalent |
| Weight | ≤1.0KG |

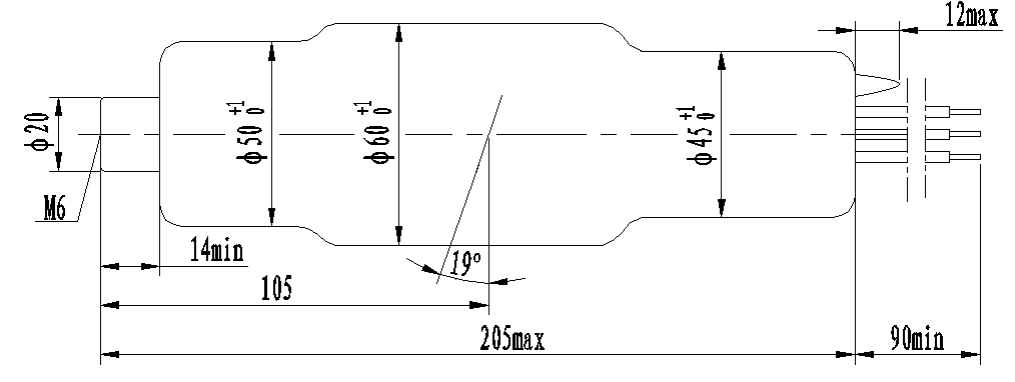

Outline Drawing

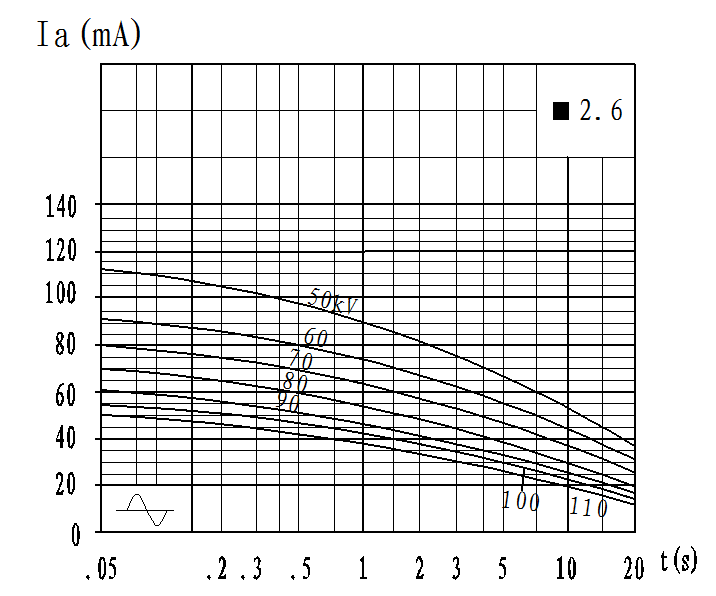

Rating Characteristics
Cathode Emission Characteristics
Filament Characteristics

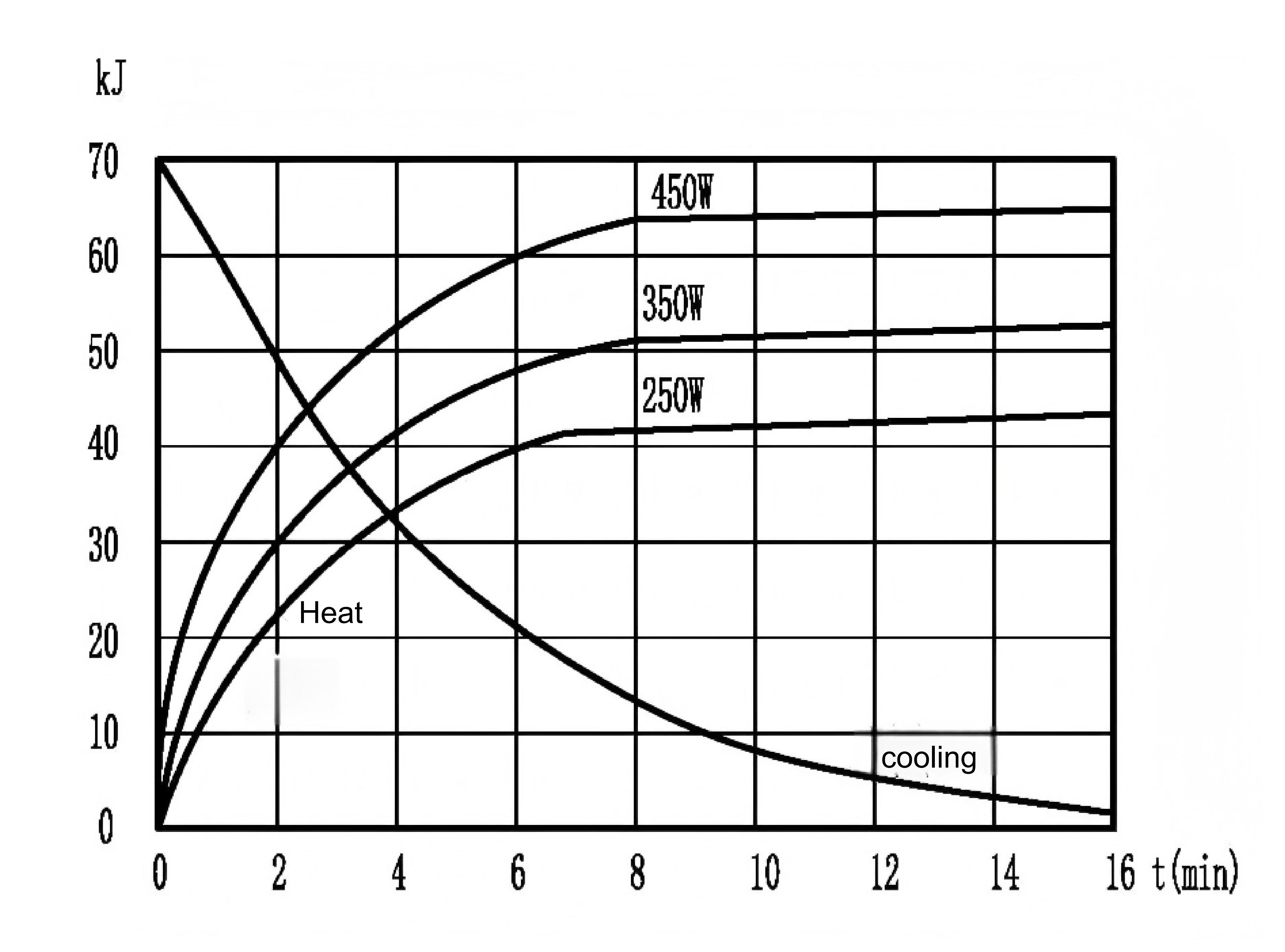

Anode heating and cooling Characteristics
