Application Scenarios
XC19
It is matched with industrial non-destrutive testing equpiment for metal workpiece for metal workpiece flaw inspection.
Feature
- Max 160kV high voltage with tungsten target, stable industrial imaging
- 0.8mm single fine focal spot dor precise flaw detection
- Max 500W continuous heat dissipation, long sevice life
- 1.5mm Al inherent filtration, standard industrial ray output
- Compact lightweight structure, easy equipment integration
Technical Data
| Nominal X-ray tube voltage (kV) | 160 | |
| Filament characteristics (V) | Ifmax=4.5A, Ufmax=7±0.7V | |
| Target materials | W | |
| Target angle | 25° | |
| Max. continuous heat dissipation (W) | 500 | |
| Nominal focal spot value | 0.8 | |
| Weight (≤Kg) | 2.2 | |
| Inherent filtration(mmAl) | 1.5 | |

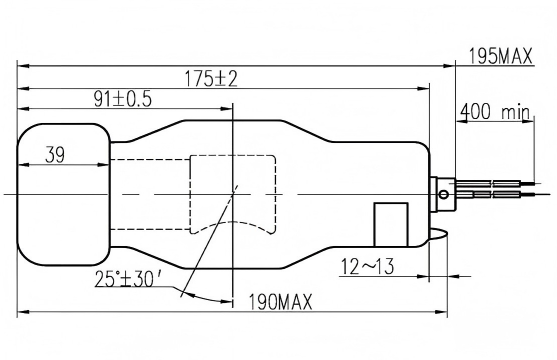

Outline Drawing

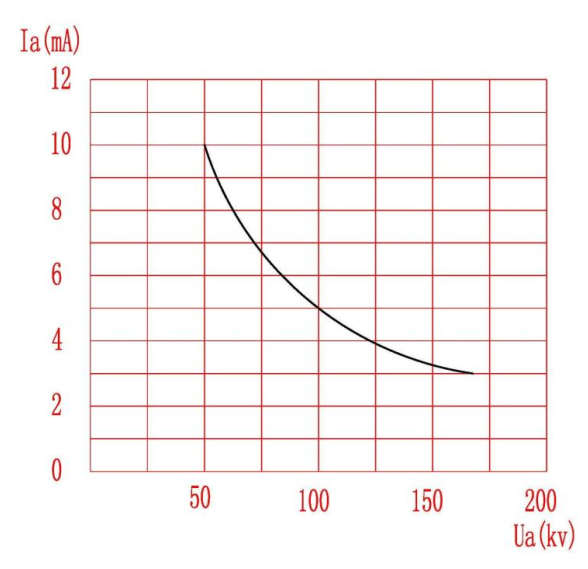

RATING CHARACTERISTICS

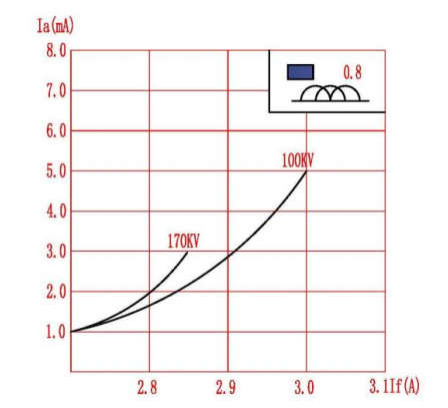

CATHODE EMISSION CHARACTERISTICS

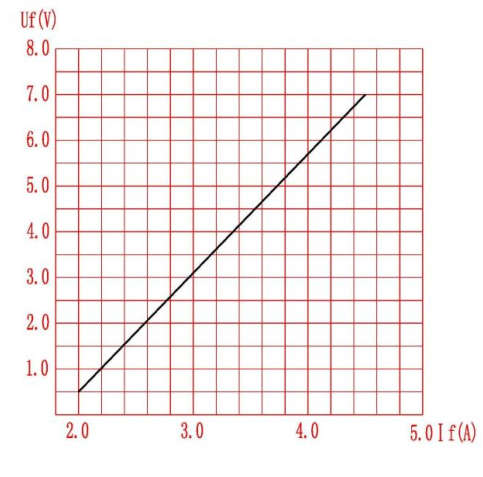

FILAMENT CHARACTERISTICS
