XD13CQ
XD13CQ mainly applied to compact portable X-ray diagnostic equipment, beside radiography and routine fluoroscopy etc.
Feature
- Dual focal spots of 0.6/1.8mm deliver high resolution and high instantaneous power.
- Compact and lightweight with weight ≤ 0.5kg, suitable for portable X-ray systems.
- Features 35kJ anode heat capacity and 225W continuous heat disspation for stable thermal performance.
- Equipped with adjustable dual filaments with independent specs to realize tube current control.
- Adopts standardized interfaces supporting 125kV max voltage, 1.0mm Al inherent filtration, standard
- wiring and mounting structure.

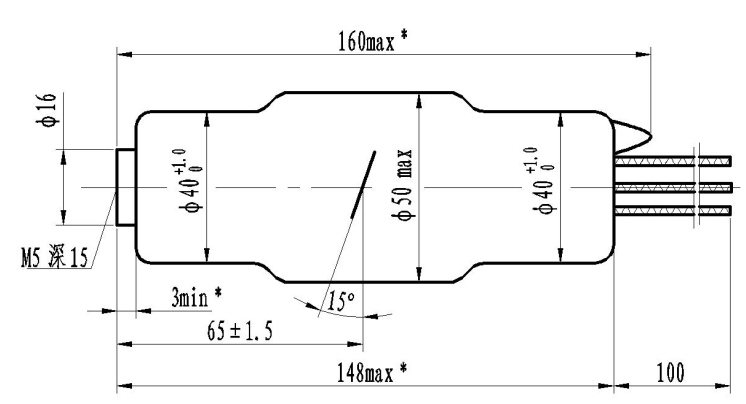

Outline Drawing

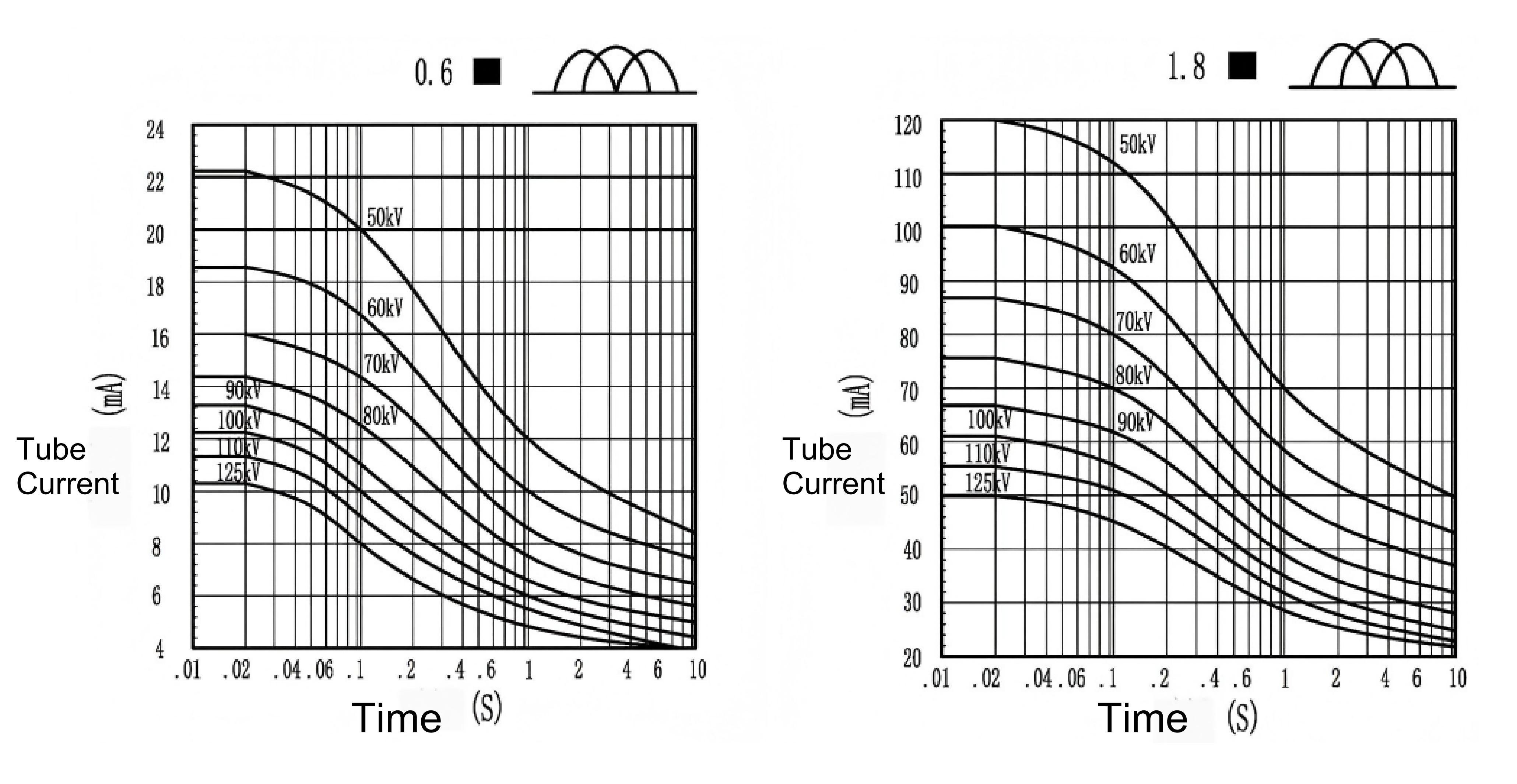

Rating Characteristics

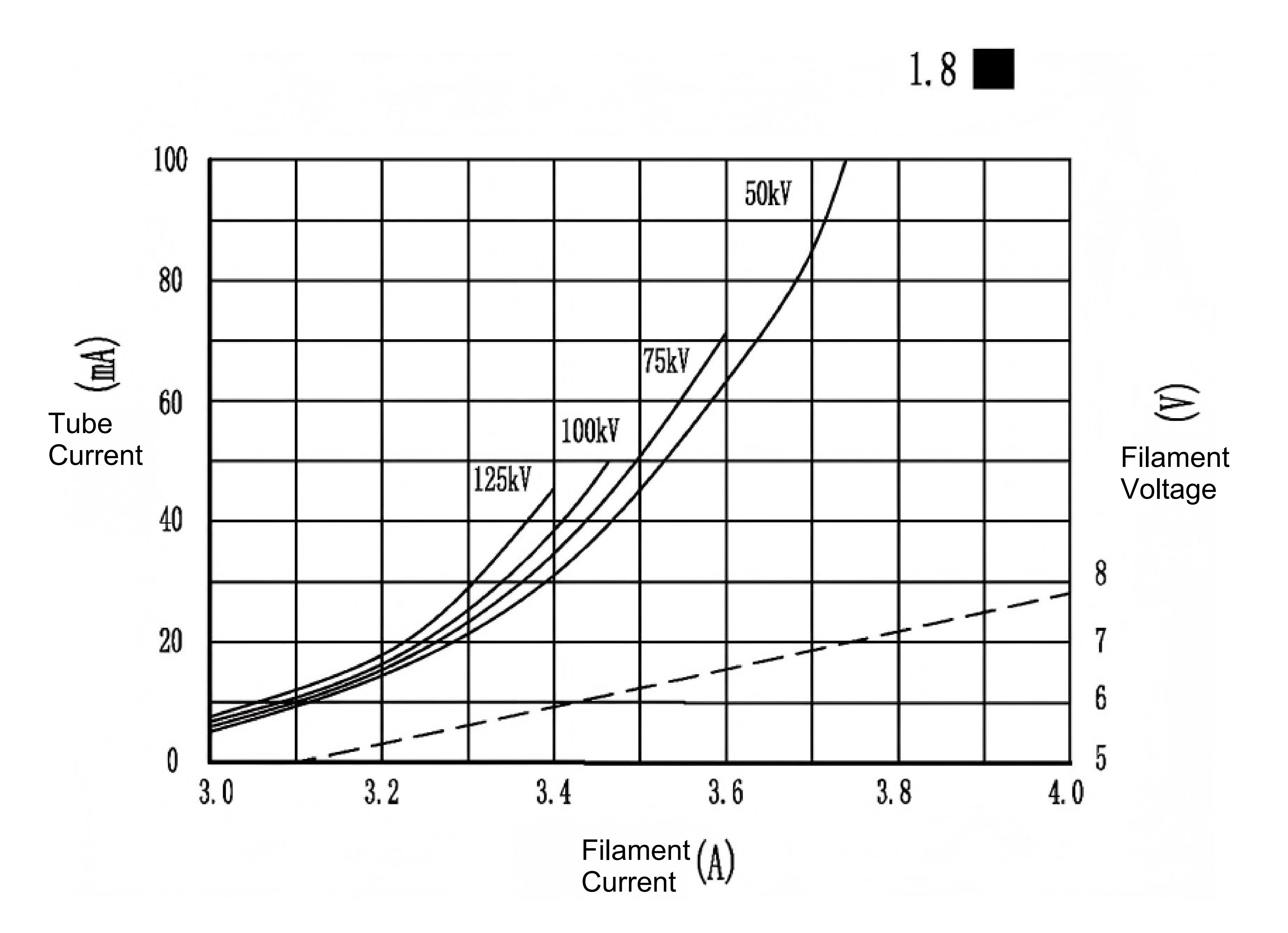

Cathode Emission Characteristics

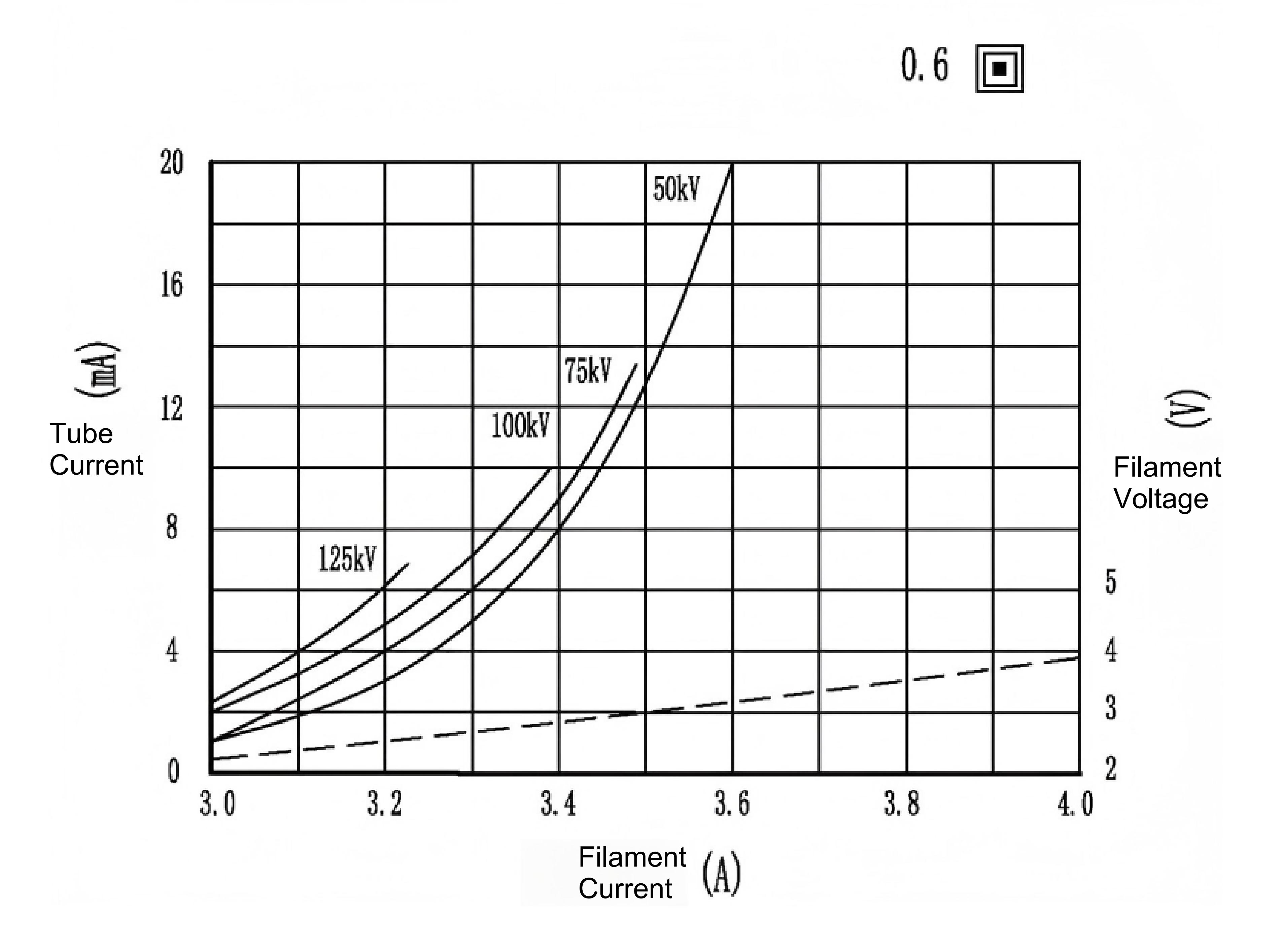

Filament Characteristics

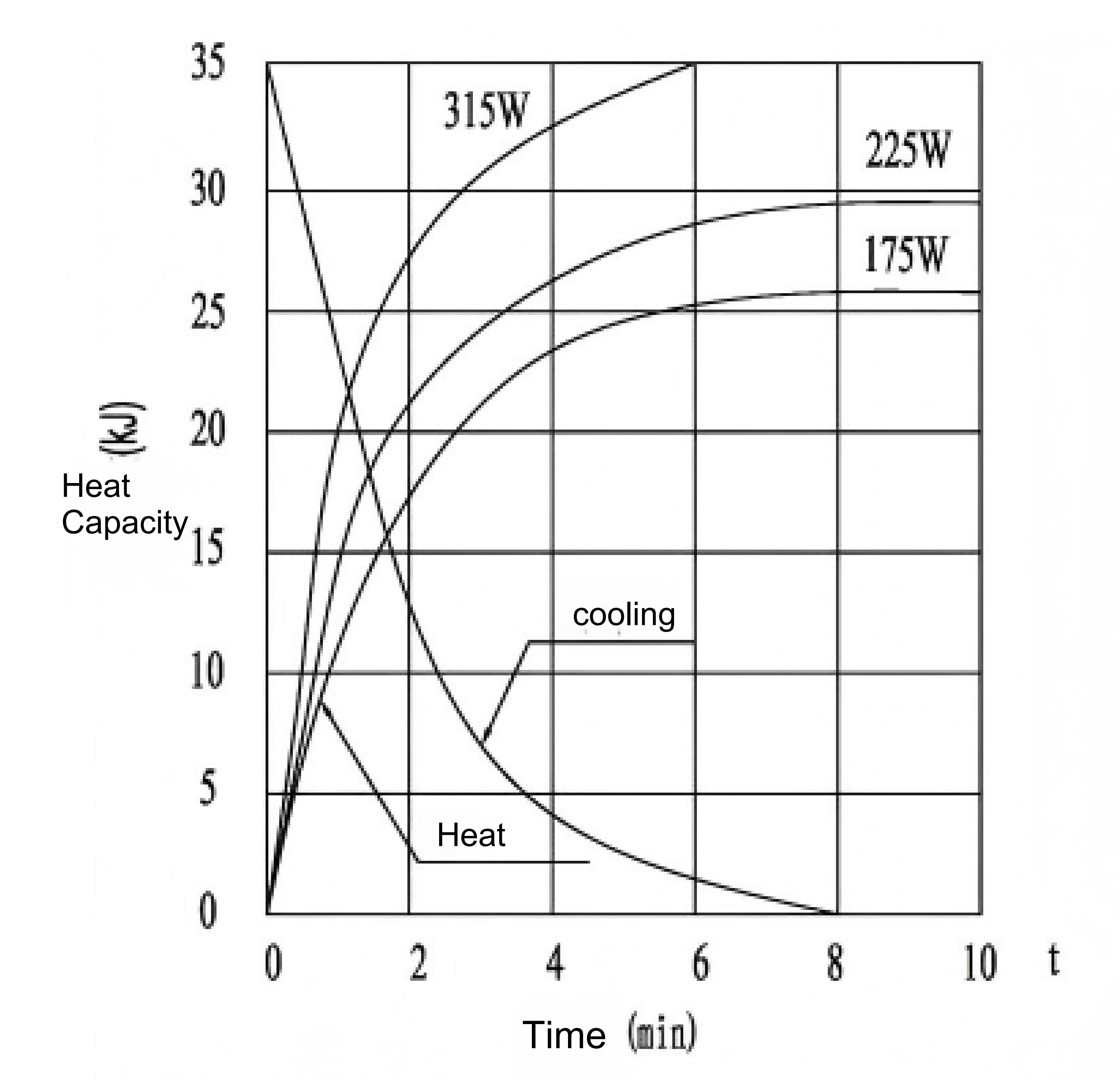

Anode Heating and Cooling Characteristics
Technical Data
| Max Operating Voltage(kV) | 125 |
| Filament Characteristics(V) | Ifmax=4.0A,Uf=4±1V(Small Filament) Ifmax=4.0A,Uf=8±1V(Large Filament) |
| Target Material | W |
| Target Angle | 15° |
| Nomianl Focal Spot Value | 0.6/1.8 |
| Nomial Anode Input Power(at 1s)(kW) | 0.6/3.5 |
| Nomial Anode Input Power(at 0.1s)(kW) | 1/5.6 |
| Inherent Filtration | 1.0mmAl(75kV) |
| Weight(kg) | ≤0.5 |
| Max.Anode Heat Capacity | 35kJ |
| Max.Continuous Heat Dissipation(Small) | 225W |
