Application Scenarios
XD2-1.4/85
Designed exclusively for portable intraoral dental X-ray diagnostic equipment.
Feature
- Rated 85kV voltage with 1.1kW short-time power for fast dental shooting
- 1.5 focal spot & 23° tungsten target delivers clear oral radiograhps
- 9kJ anode heat capacity with 180W continuous heat dissipation
- Ultra-light structure, weight ≤0.16kg for compact device assembly
- Min 1.0mm aluminum equivalent inherent filtration for stable X-ray output
Technical Data
| Nominal Tube Voltage | 85 kV | |
| Nominal Focal Spot (IEC336) | 1.5 | |
| Target Material | Tungsten | |
| Target Angle | 23° | |
| Inherent Filtration | Min. 1.0mm Al Equivalent | |
| Max. Anode Heat Capacity | 9 kJ | |
| Filament Characteristics | 2.6±0.7 V/2.5 A | |
Anode Nominal Input Power (0.1s) | 1.4 kW | |
| Weight | ≤0.16 kg | |
Max. Continuous Heat Dissipation | 180 W | |

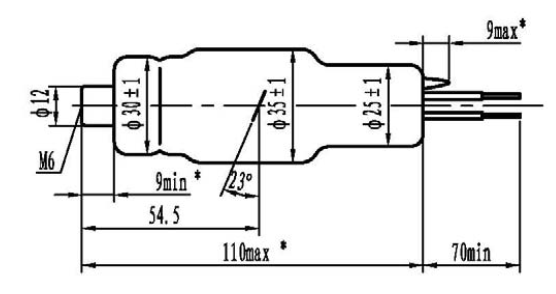

Outline Drawing

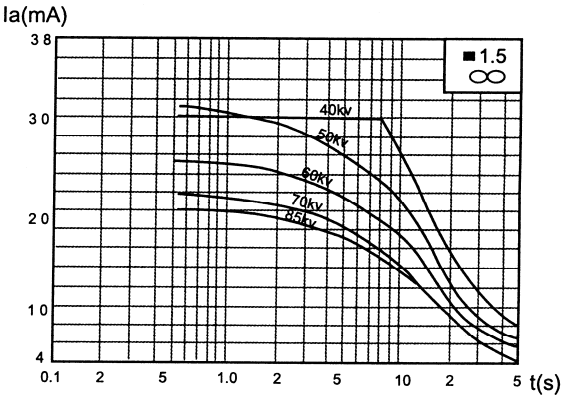

Rating Characteristics

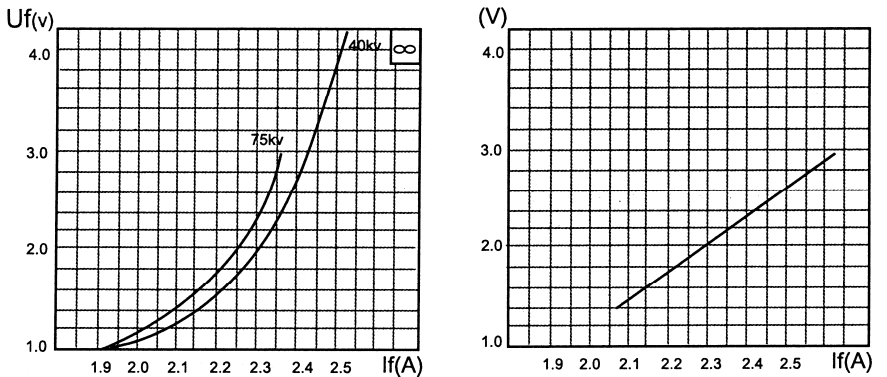

FilamentEmission Characteristics

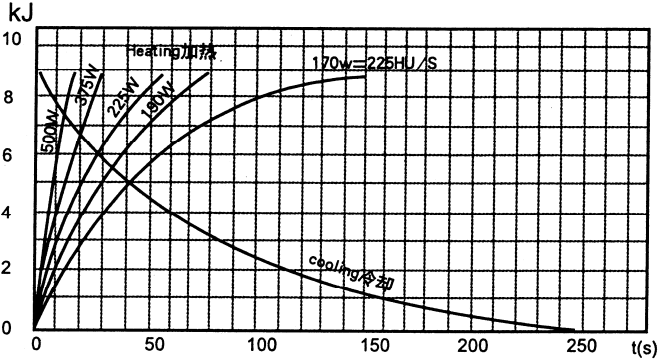

Anode Heating and Cooling Characteristics
