XD3A
It is matched with general medical X-ray machines for human body radiography examination
Feature
- Rated 100kV tube voltage with maximum 3500W short-time exposure power
- 2.6 large focal spot and 19° tungsten target for wide-area human body imaging
- 30kJ large anode heat storage and 350W continuous heat dissipation for long working hours
- Stable filament working parameter:7.8±0.8V/4.5A for consistent emission performance
- Min 0.6mm aluminum equivalent inherent filtration for balanced X-ray penetration
Technical Data
| Nominal Tube Voltage | 100 kV | |
| Nominal Focal Spot (IEC336) | 2.6 | |
| Is Exposure rating | 3500w | |
| Filament Characteristics | 7.8±0.8V/4.5A | |
| Target Material | Tungsten | |
| Target Angle | 19° | |
| Anode Heat Storage Capacity | 30k | |
| Continuous Rating | 350W | |
| Inherent Filtration | Min. 0.6mm Al Equivalent | |

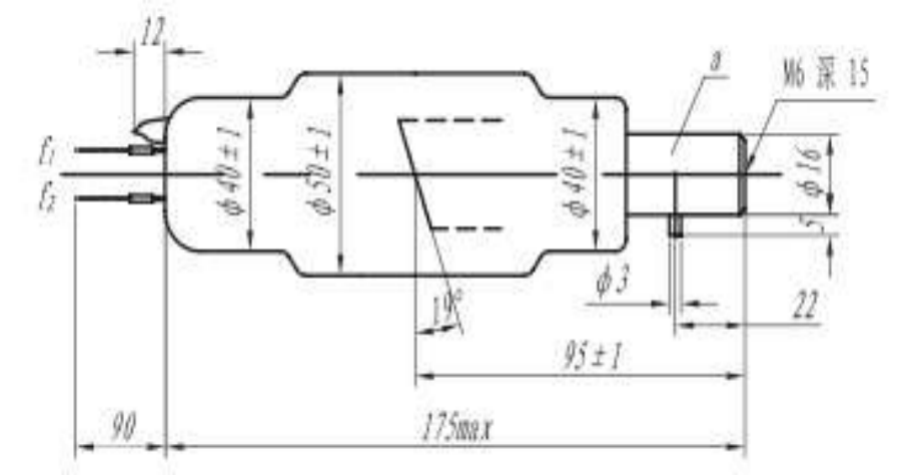

Outline Drawing

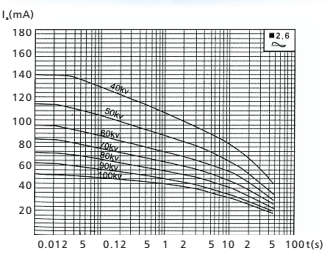

Rating Characteristics

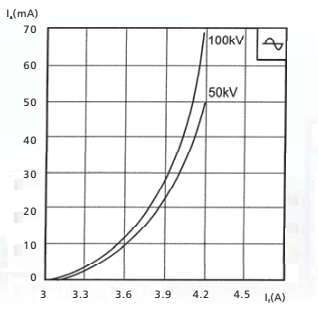

Cathode Emission Characteristics

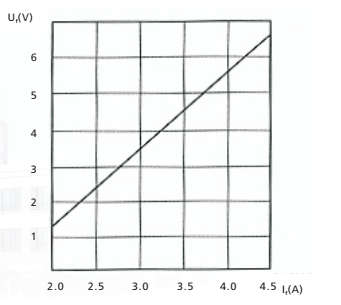

Fialment Characteristics
