XD7-1.05/35
XD7-1.05/35 mainly applied to small workpiece non-dedstructive testing,soft X-ray imaging etx.
Feature
- Mo target soft X-ray tube, max 35kV,1.05kW short power, 1.0 focal spot for small-component NDT imaging.
- 30kJ anode heat capacity & 70W continuous heat dissipation, with full heating/cooking characteristc curves.
- Linear filament V-I characteristic, adjustable anode emission to realize precise X-ray intensity control.
- Light compact design(0.7kg,max 148mm length),easy to integrate into portable mini X-ray equipment.
- Complete engineering data including four characteristic cureves and dimension drawing with precision tolerances.
Technical Data
| Max Operating Voltage(kV) | 35 |
| Filament Characteristics(V) | Ifmax=4.0A,Uf=3.8±0.4V |
| Target Material | Mo |
| Target Angle | 19° |
| Nomianl Focal Spot Value | 1.0 |
| Weight(≤kg) | 0.7 |
| Anode Heat Storage Capacity(kJ) | 30 |
| Max Power(0.1s)(kW) | 1.05 |
| Max.Continuous Heat Disspation(W) | 70 |

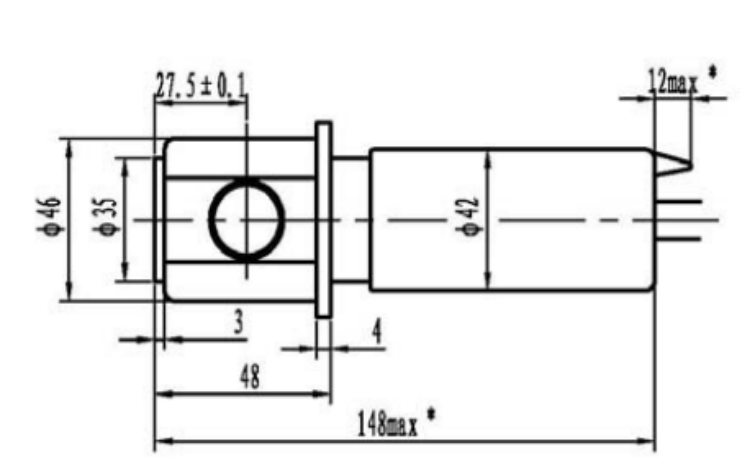

Outline Drawing

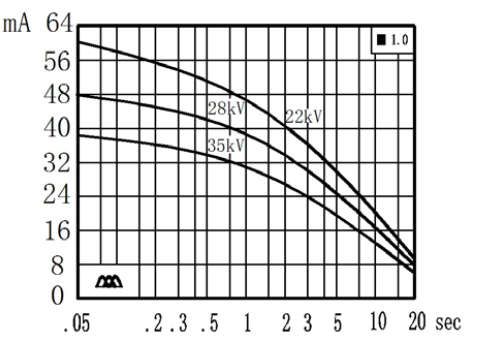

Rating Characteristics

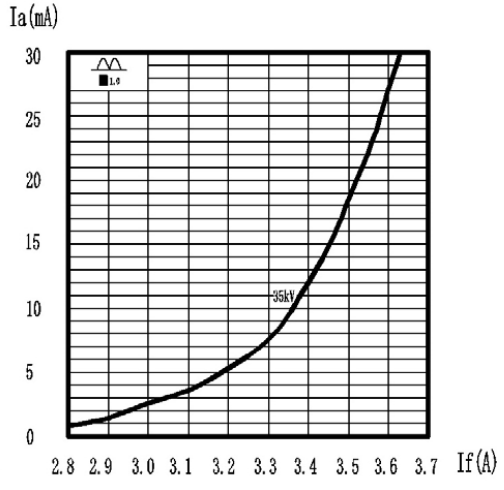

Cathode Emission Characteristics

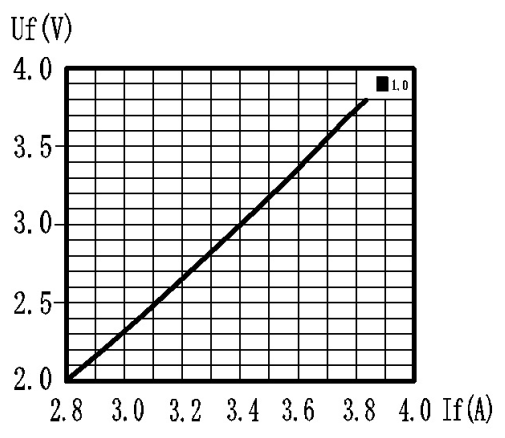

Filament Characteristics

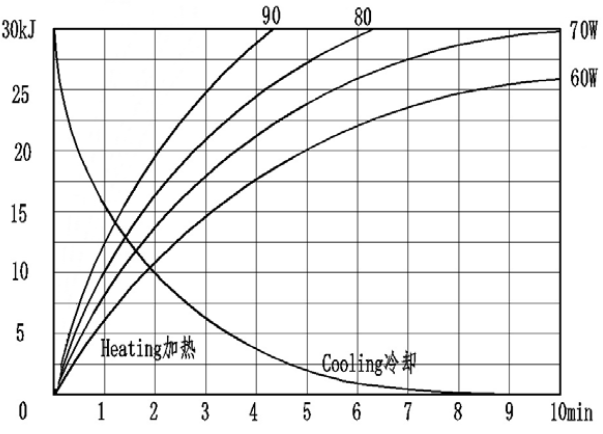

Anode heating and cooling Characteristics
