Application Scenarios
XD3-3.5/100
It matches general medical diagnostic X-ray machines for human body radiography
Feature
- Max 100kV tube voltage with 3500W short exposure power
- 2.6 large focal spot and 19° tungsten target for wide-area imagin
- 30kJ anode heat storage & 350W continuous heat dissipation
- Stable filament output at 7.8±0.8V/4.5A
- Min 0.6mm Al inherent filtration for balanced X-ray penetration

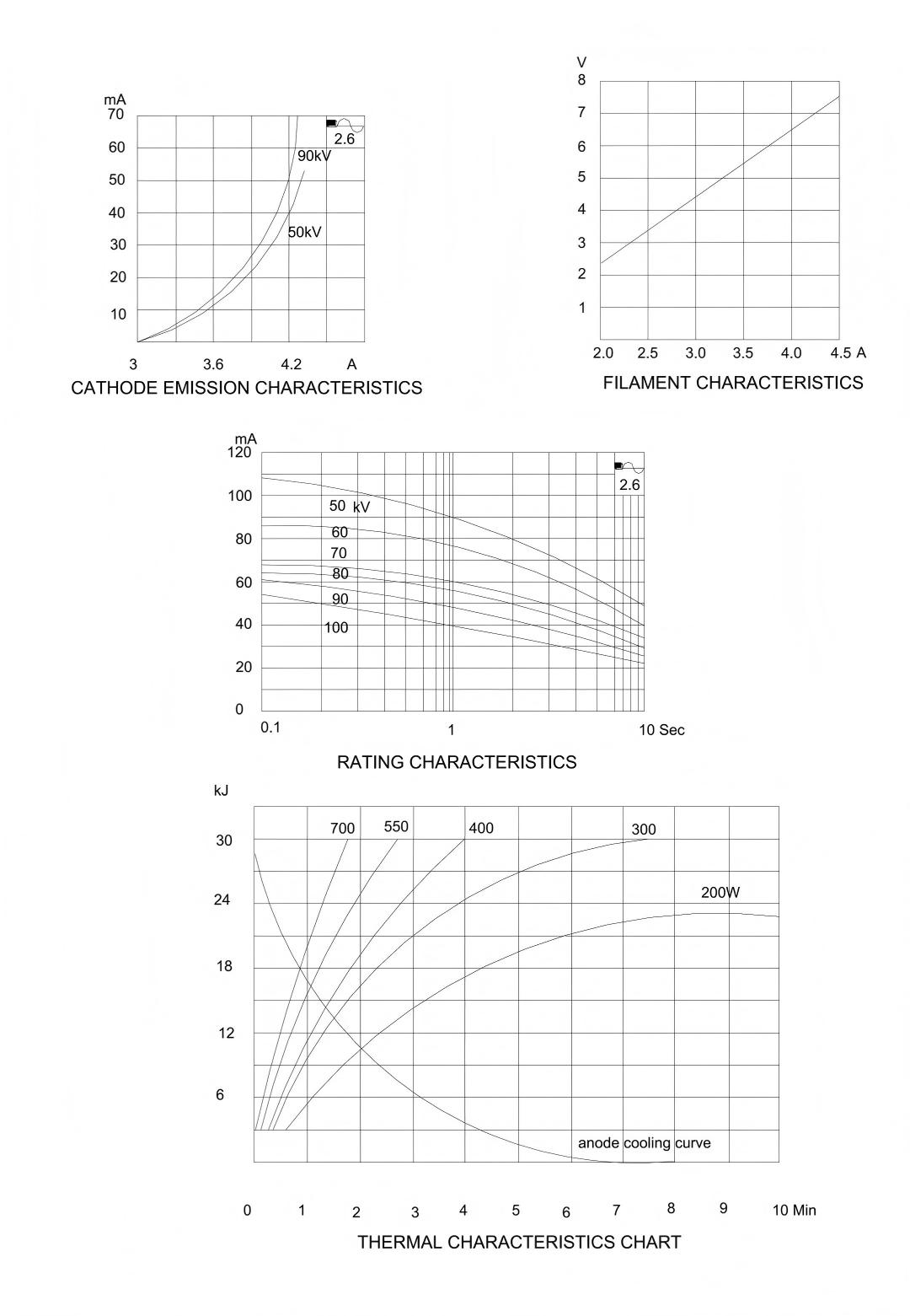

Technical Data
| Nominal Tube Voltage | 100kV |
| Nominal Focal Spot (IEC336) | 2.6 |
| Exposure Rating | 3500W |
| Filament Characteristics | 7.8±0.8V/4.5A |
| Target Material | Tungsten |
| Target Angle | 19° |
| Anode Heat Storage Capacity | 30kJ |
| Continuous Rating | 350W |
| Inherent Filtration | Min. 0.6mm Al Equivalent |

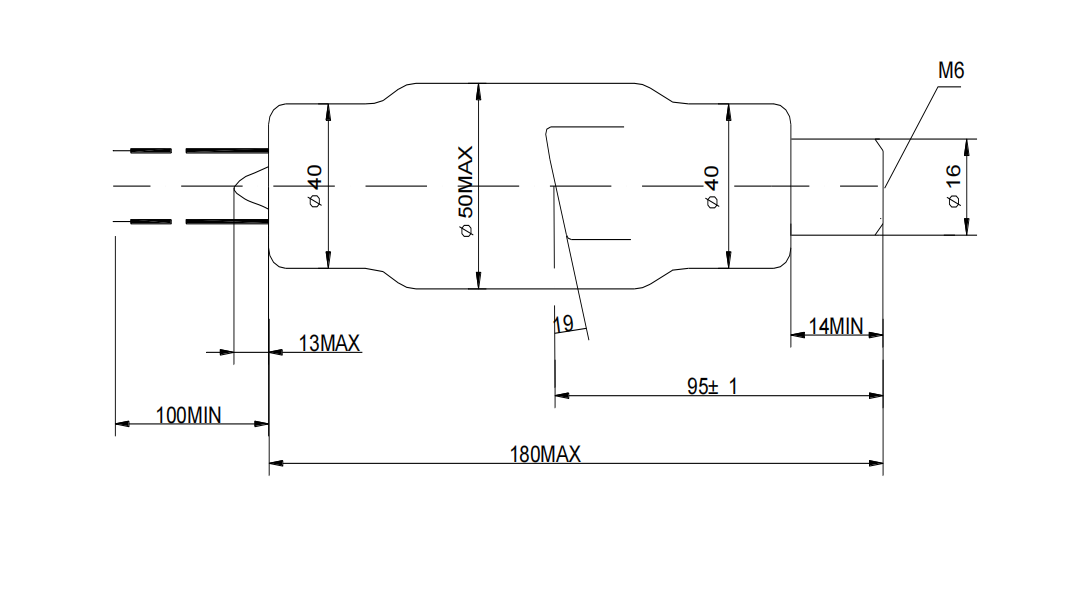

Outline Drawing
