Application Scenarios
XD2A
It is matched with portable handheld intraoral X-ray mchines for oral radiographic exmaination
Feature
- Rated 85kV tube voltage with 0.75kW short-time power for dental instant shooting
- 0.8mm tiny focal spot and 19° tungsten target deliver sharp images of subtle oral lesions
- 14kJ maximum anode heat storage and 180W continuous heat dissipation ensure stable long-time opeation
- Ultra-light weight≤0.5kg and mini size, convenient for integration into portable dental devices
- Min 0.8mm Al equivalent inherent filtration provides even and consistent X-ray output
Technical Data
| Nominal Tube Voltage | 85 kV |
| Nominal Focal Spot (IEC336) | 0.8 |
| Anode nominal input power(0.1s)(kW) | 0.75 |
| Filament Characteristics | 1.6±0.6 V/2.5 A |
| Target Material | Tungsten |
| Target Angle | 19° |
| Inherent Filtration | Min. 0.8mm Al Equivalent |
| Weight(≤kg) | ≤0.5 |
| Max. Continuous Heat Dissipation | 180 W |

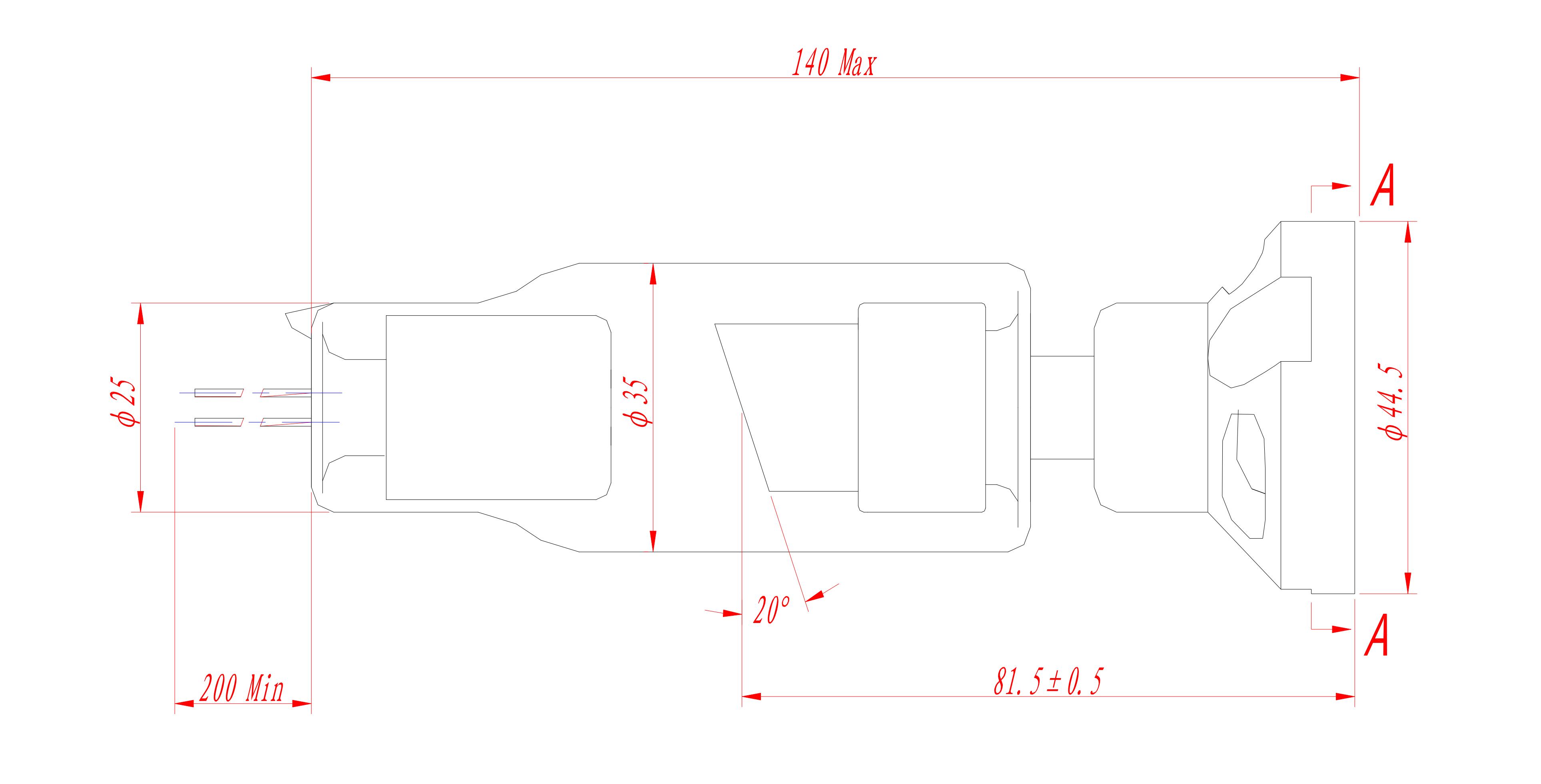

Outline Drawing

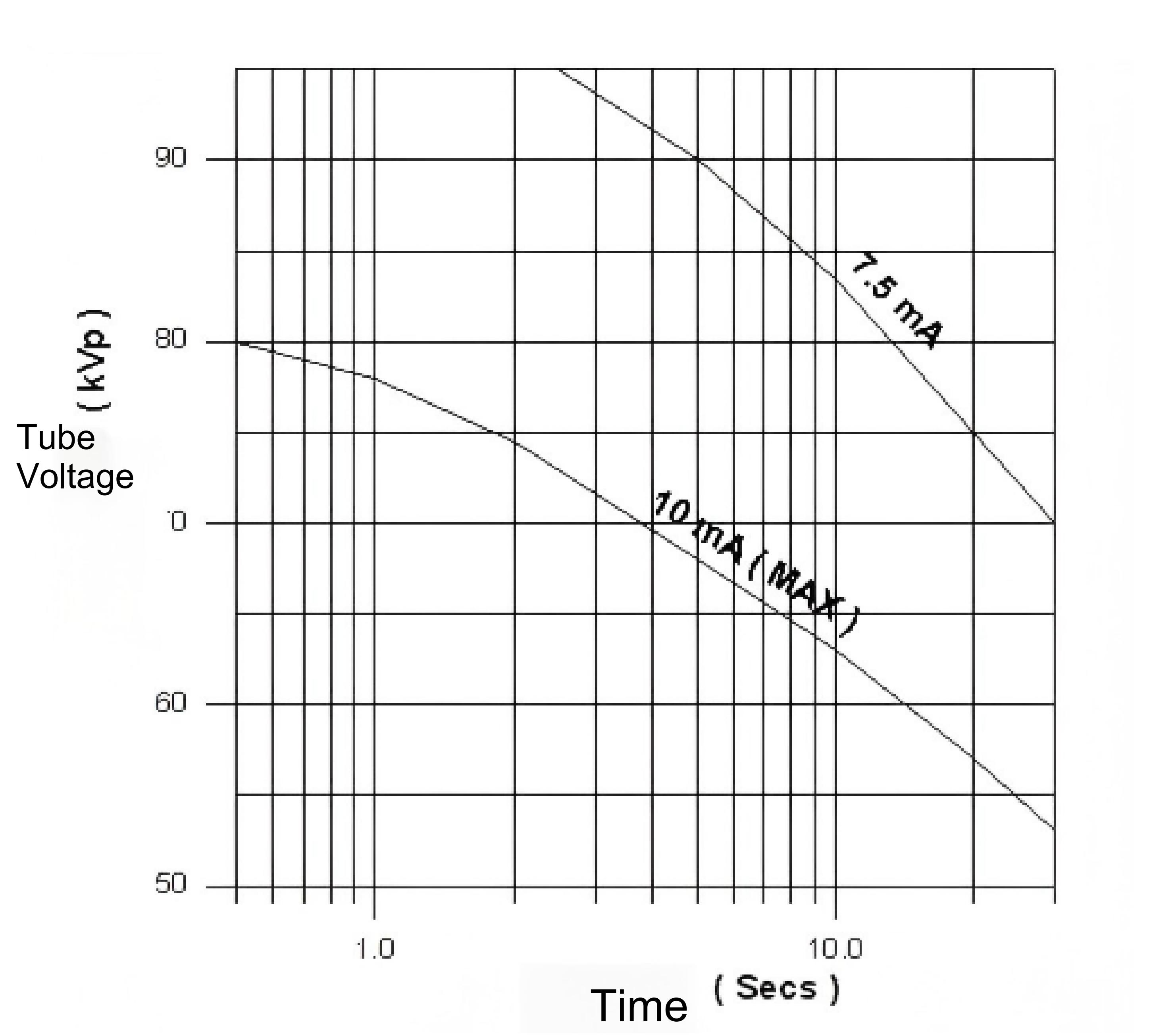

Rating Characteristics

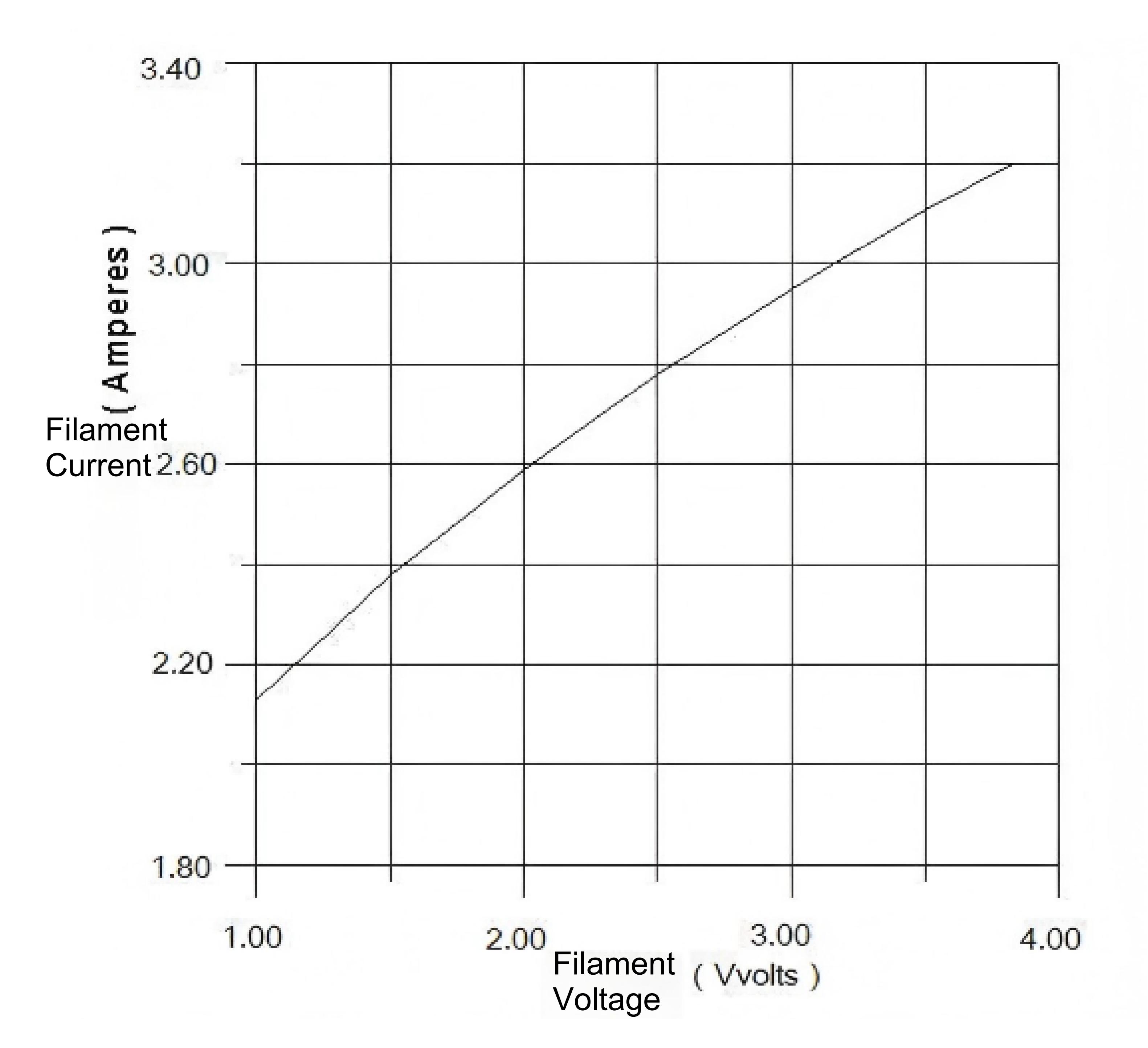

Filament Characteristics

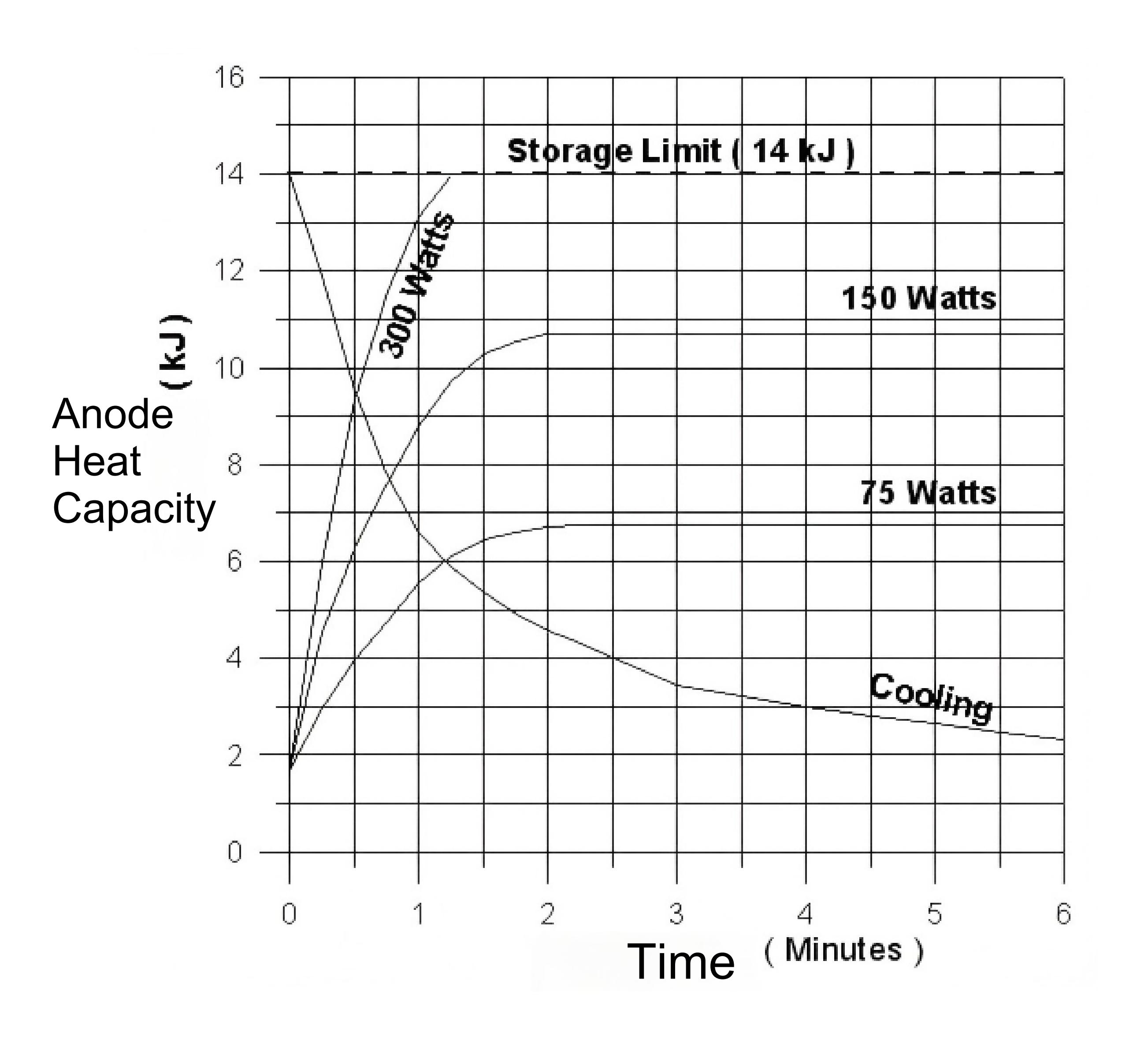

Anode heating and cooling Characteristics

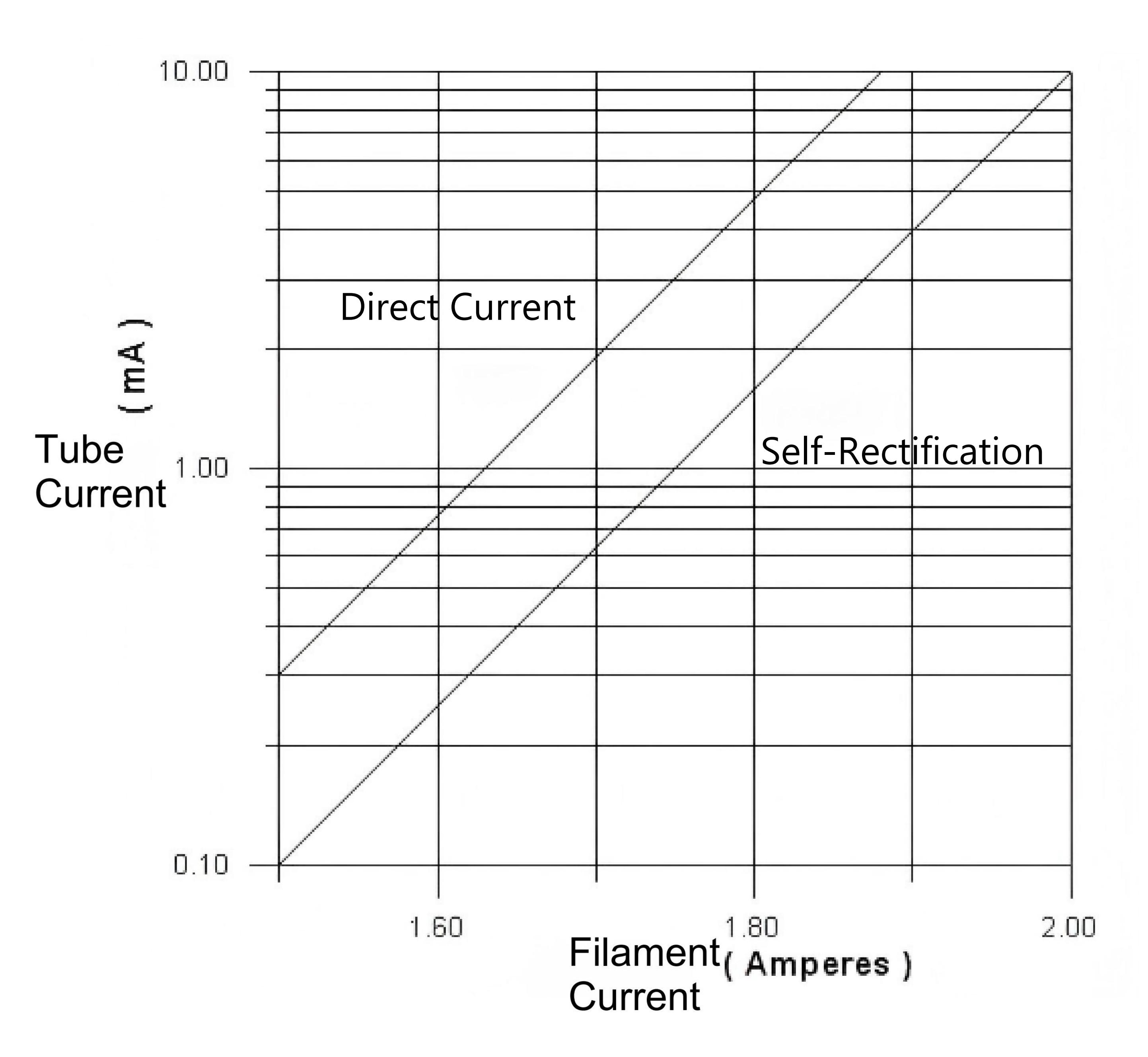

Emission Characteristics
