Application Scenarios
XD1-3/100
It is matched with medical diagnostic X-ray machines for human radiography examination.
Feature
- Rated 100kV tube voltage,3kW short-time power for medical radiography
- 2.3 standard focal spot with 19° tungsten target angle
- Min 1.0mm Al inherent filtration for stable X-ray output
- Ultra-light weight below 0.6kg, compact mini structure
- Stable filament output at 6.5±0.5V/4.5A for consistent imaging
Technical Data
| Nominal Tube Voltage | 100kV | |
| Nominal Focal Spot (IEC336) | 2.3 | |
| Anode nominal input power(0.1s)(kW) | 3 | |
| Filament Characteristics | 6.5±0.5V/4.5A | |
| Target Material | Tungsten | |
| Target Angle | 19° | |
| Inherent Filtration | Min. 1.0mm Al Equivalent | |
| Weight(≤kg) | ≤0.6 | |

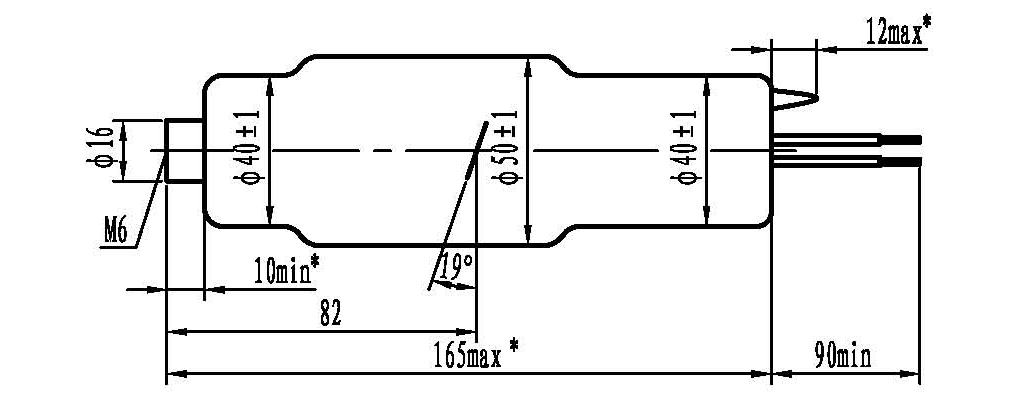

Outline Drawing

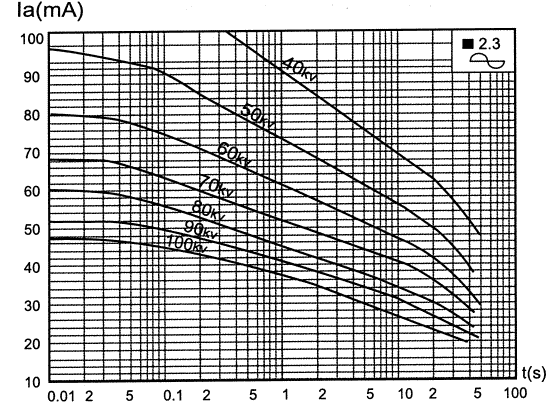

Rating Characteristics

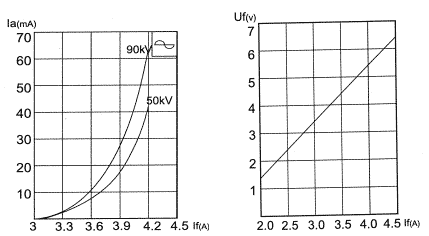

Filament Emission Characteristics
