Application Scenarios

XD13-0.58,3.2/110

XD13-0.58,3.2/110 mainly applies to mini X-ray diagnostic devices, portable radiography and short-time fluoroscpoy.

Feature

• Dual focal spots(0.6/1.5)with separate peak power for high-resolution imaging & high-dose exposure
• Ultra-light compact design(≤0.5kg, max 160mm length)for portable mini X-ray devices
• 110kV max voltage, complete filament characteristic curves for flexible generator matching
• 35kJ anode heat capacity & 225W continuous power, full thermal curves to prevent overhealing
• Standard color-coded triple filament leads + independent anode terminal for easy wiring & maintenance

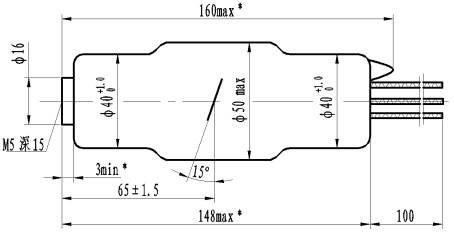

Outline Drawing

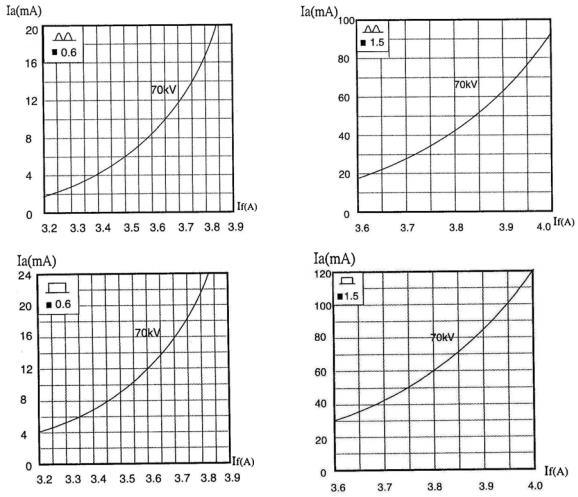

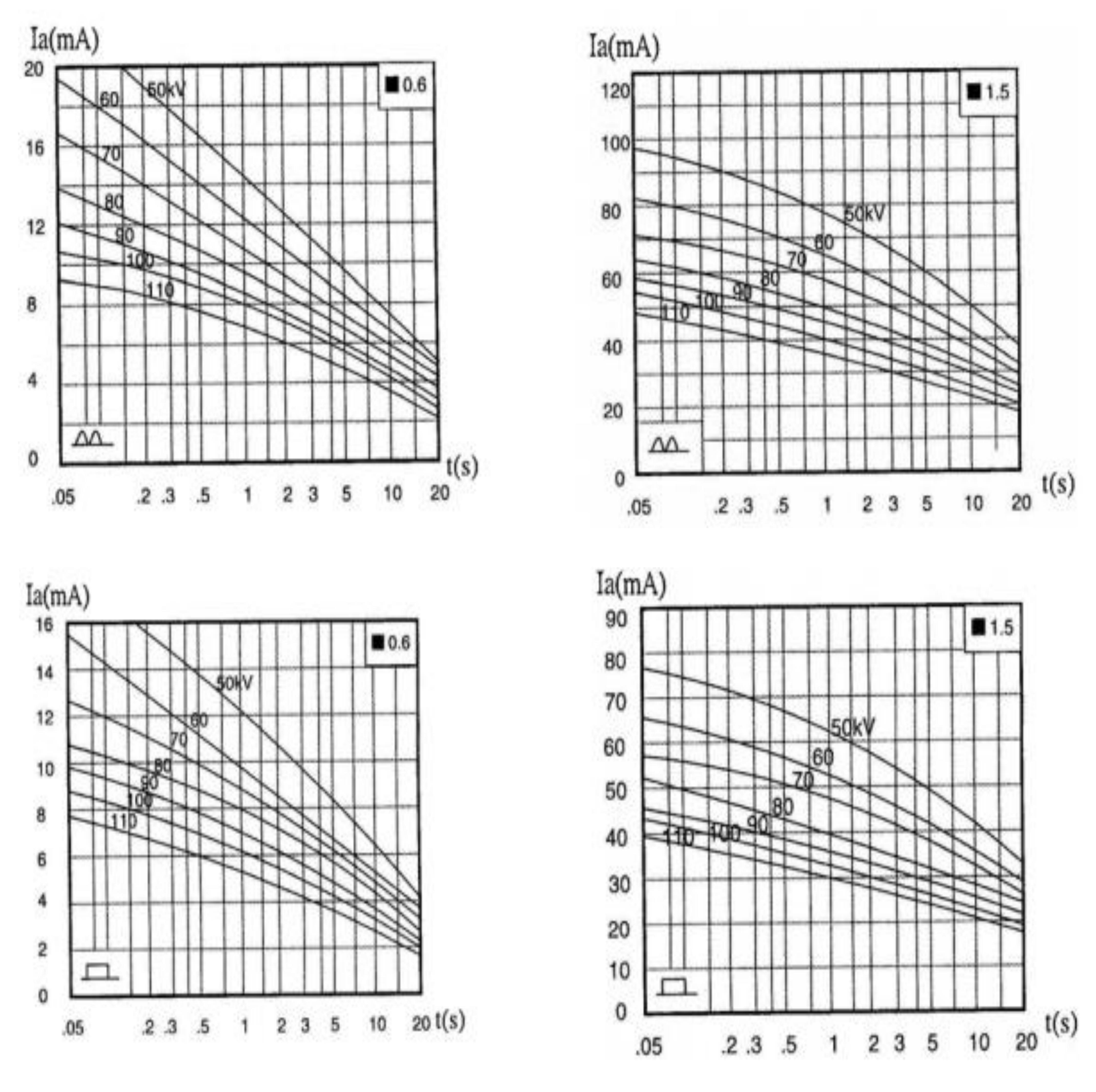

Cathode Emission Characteristics

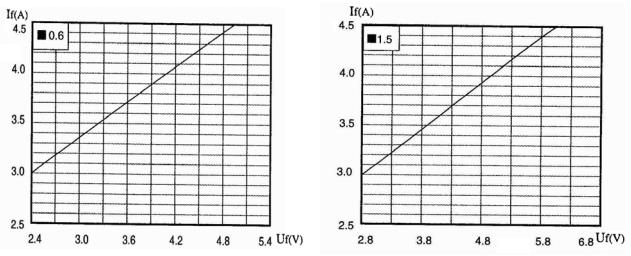

FilamentCharacteristics

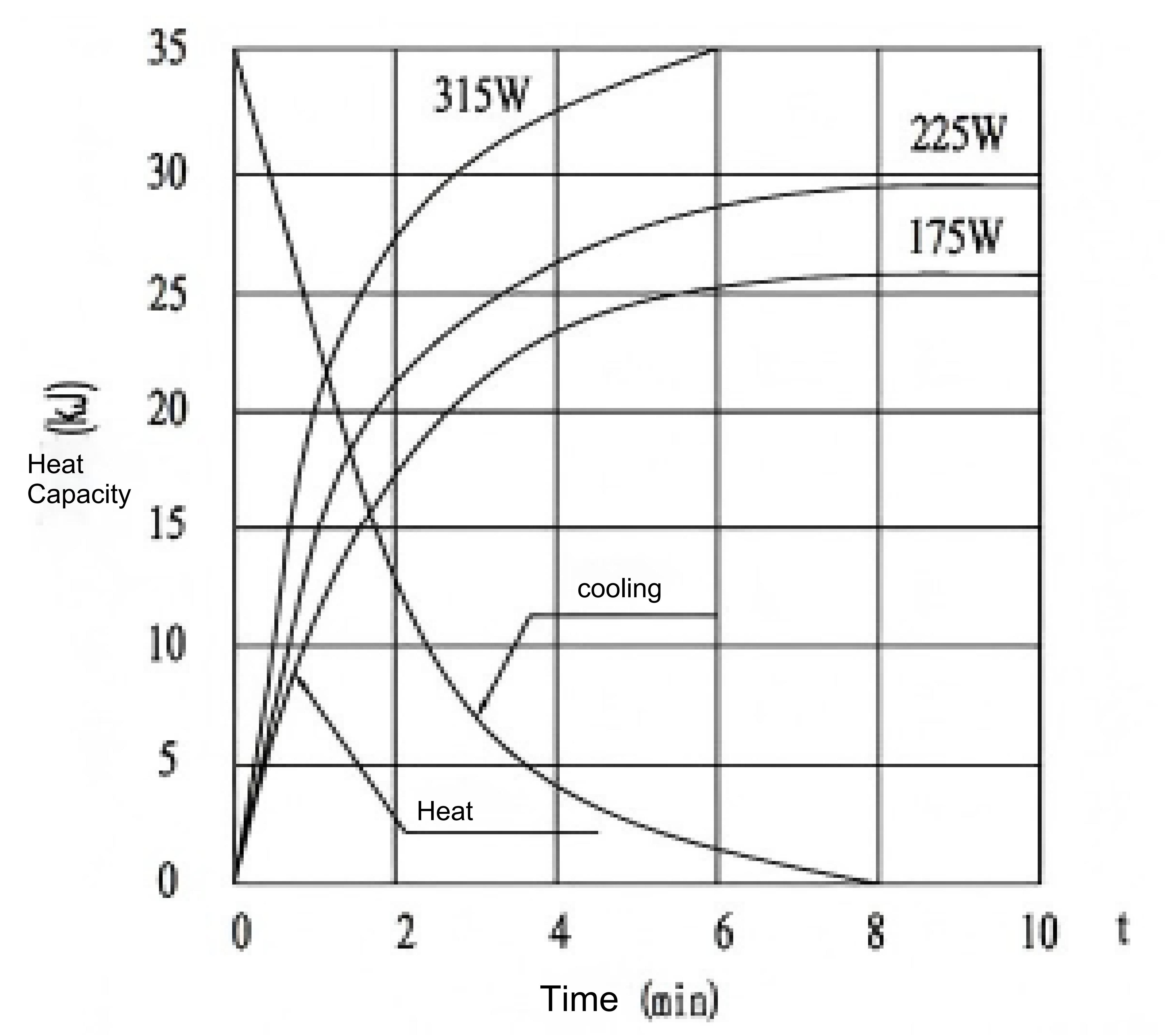

Anode Heating and Cooling Characteristics
