XD13E
XD13E is mainly applied to compact portable X-ray diagnostic equipment, beside radiography and routine fluoroscpoy, etc.
Feature
- Wide 125kV voltage range, 8kW short-term power, tungsten for standard radiography.
- Standard filament(8±0.1V, max 4.0A)ensures stable tube current via emisson curves.
- 35kJ heat capacity & 225W continuous dissipation with full thermal curves to avoid overheating.
- Special rating curve for 2.2 focal spot to verify safe mA within 0.1-20s exposure.
- Three interchangeable variants with unified core structure for easy installation.
Technical Data
| Nominal X-ray Tube Voltage(kV) | 125 |
| Filament Characteristics(V) | Ifmax=4.0A,Uf=8±0.1V |
| Target Material | W |
| Target Angle | 15° |
| Nomianl Focal Spot Value | 2.2 |
| Nomial Anode Input Power(at 1s)(kW) | 8 |
| Inherent Filtration | 0.8mmAl(75kV) |
| Max.Anode Heat Capacity | 35kJ |
| Max.Continuous Heat Dissipation(Small) | 225W |

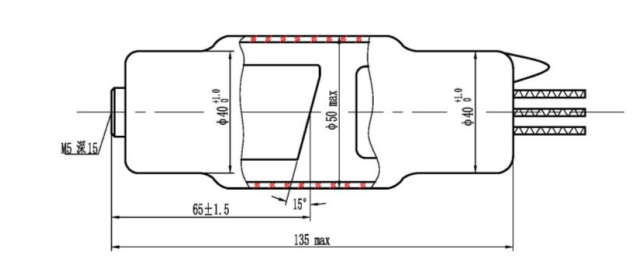

Outline Drawing

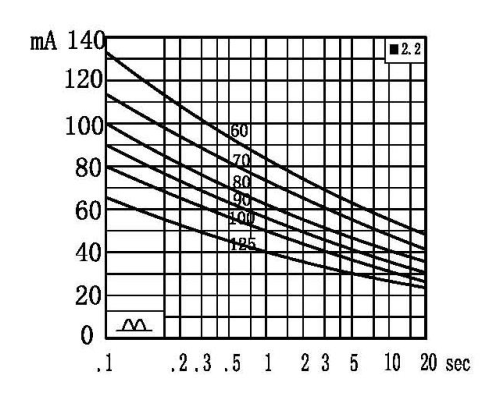

Rating Characteristics

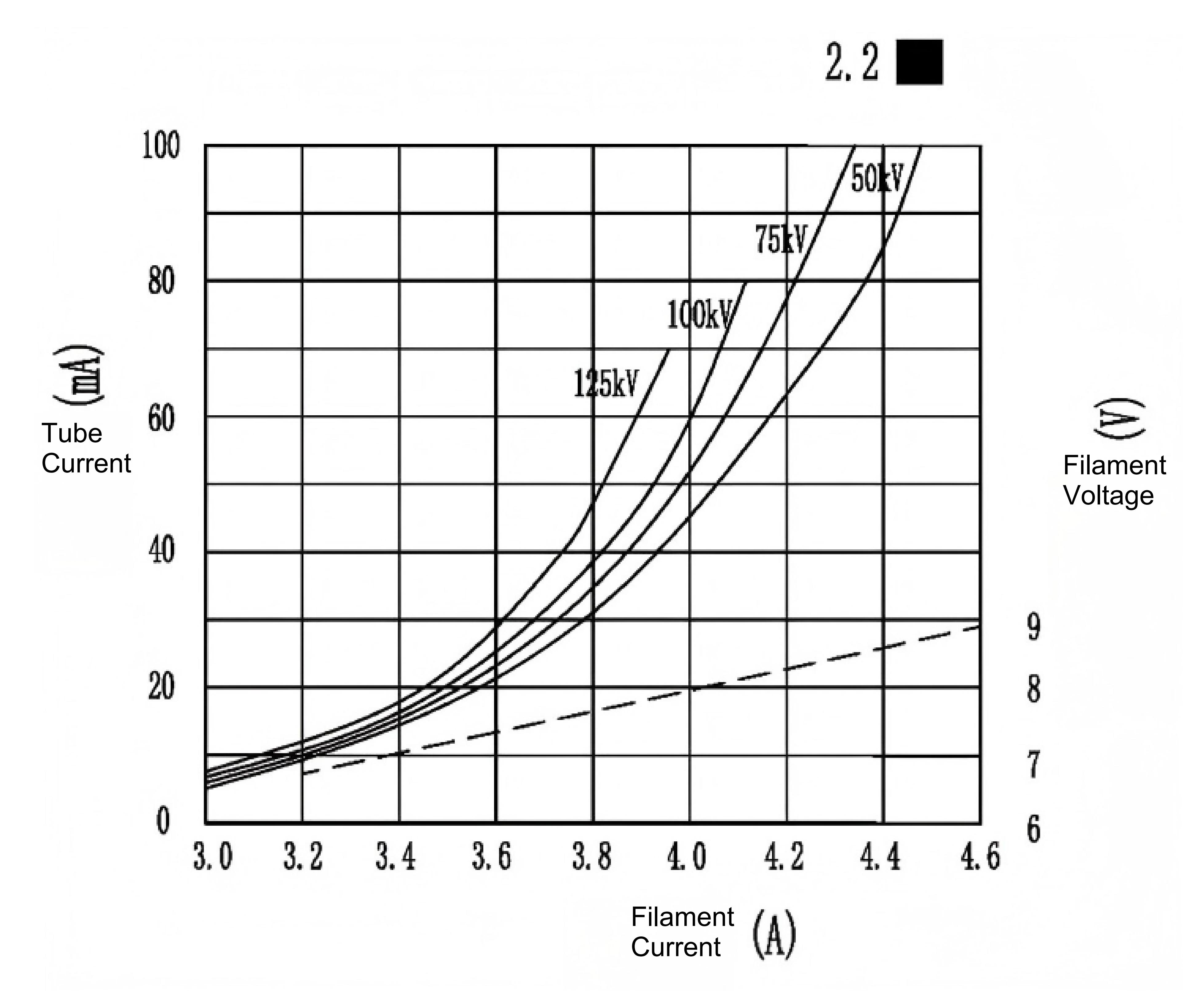

Filament and Cathode Emission Characteristics

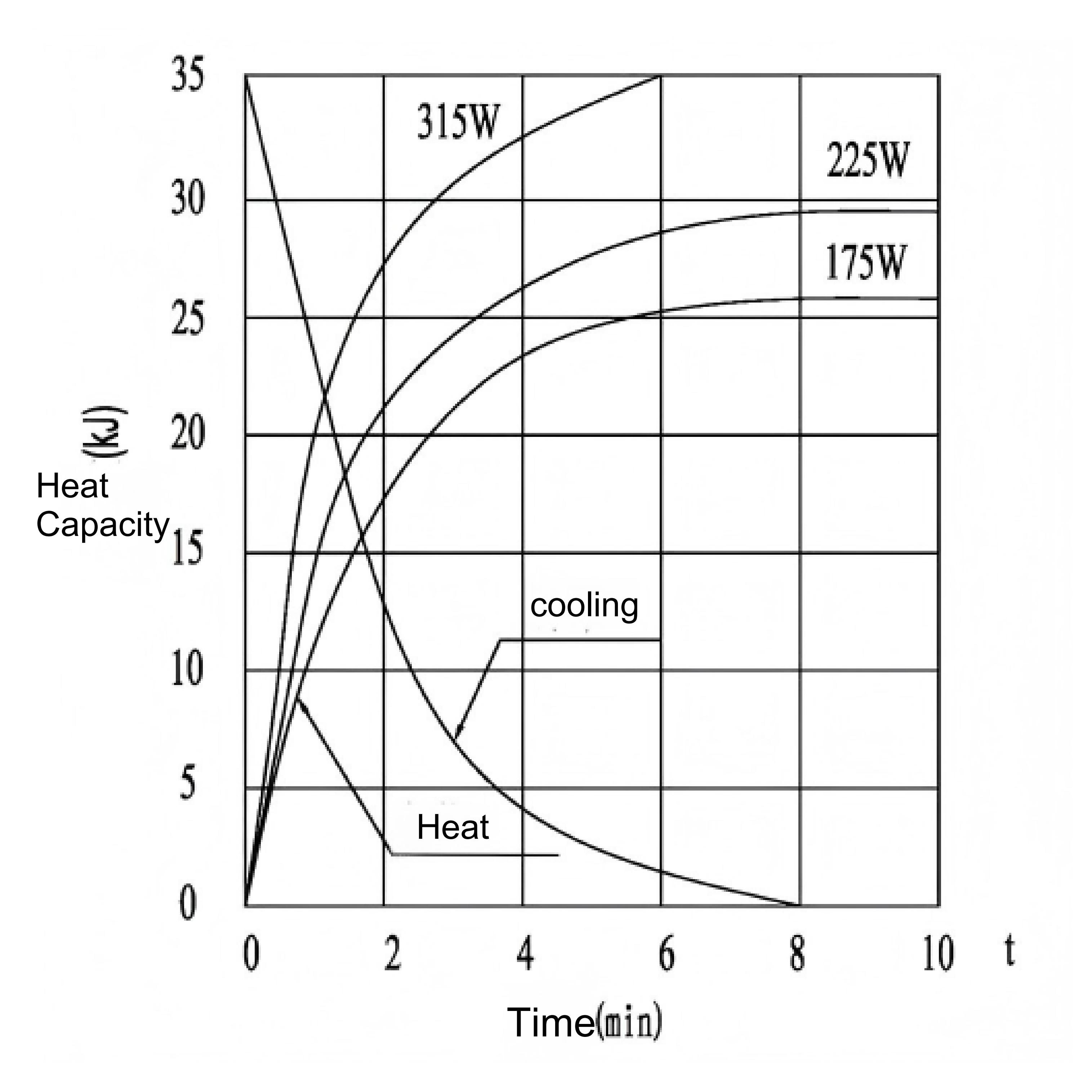

Anode heating and cooling Characteristics
