Application Scenarios
XD15-1.4/100
XD15-1.4/100 is mainly applied to mini industrial X-ray inspection equipment, portable flaw detection and precision micro-focus imaging etc.
Feature
- High-resolution imaging:5°W target,0.5 micro focus, 100kV, 1.4kW short-term power
- Ultra-light compact design:≤0.6kg, 142±1mm bare tube for portable equipment
- Stable thermal performance: 35kJ heat storage, 225W continuous cooling
- Precise cathode control:7±1V filament, max 4.5A, adjustable tube current
- Flexible installation & shielding:≥1.2mm Al filtration, bare/lead-shielded types, M6 thread
Technical Data
| Nominal X-ray Tube Voltage(kV) | 100 |
| Filament Characteristics(V) | Ifmax=4.5A,Uf=7±1V(Small Filament) |
| Target Material | W |
| Target Angle | 5° |
| Nomianl Focal Spot Value | 0.5 |
| Nomial Anode Input Power(at 1.0s)(kW) | 1.4 |
| Inherent Filtration | ≥1.2mmAl(75kV) |
| Weight(kg) | ≤0.6 |
| Max.Anode Heat Capacity | 35kJ |
| Max.Continuous Heat Dissipation(Small) | 225W |

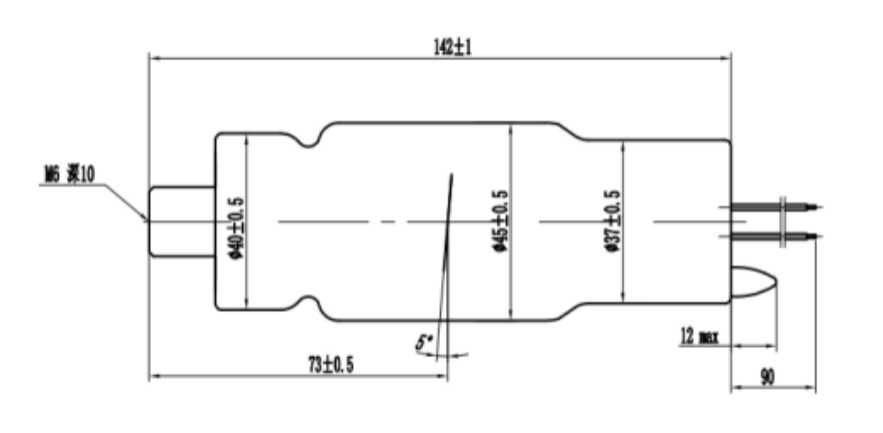

Outline Drawing

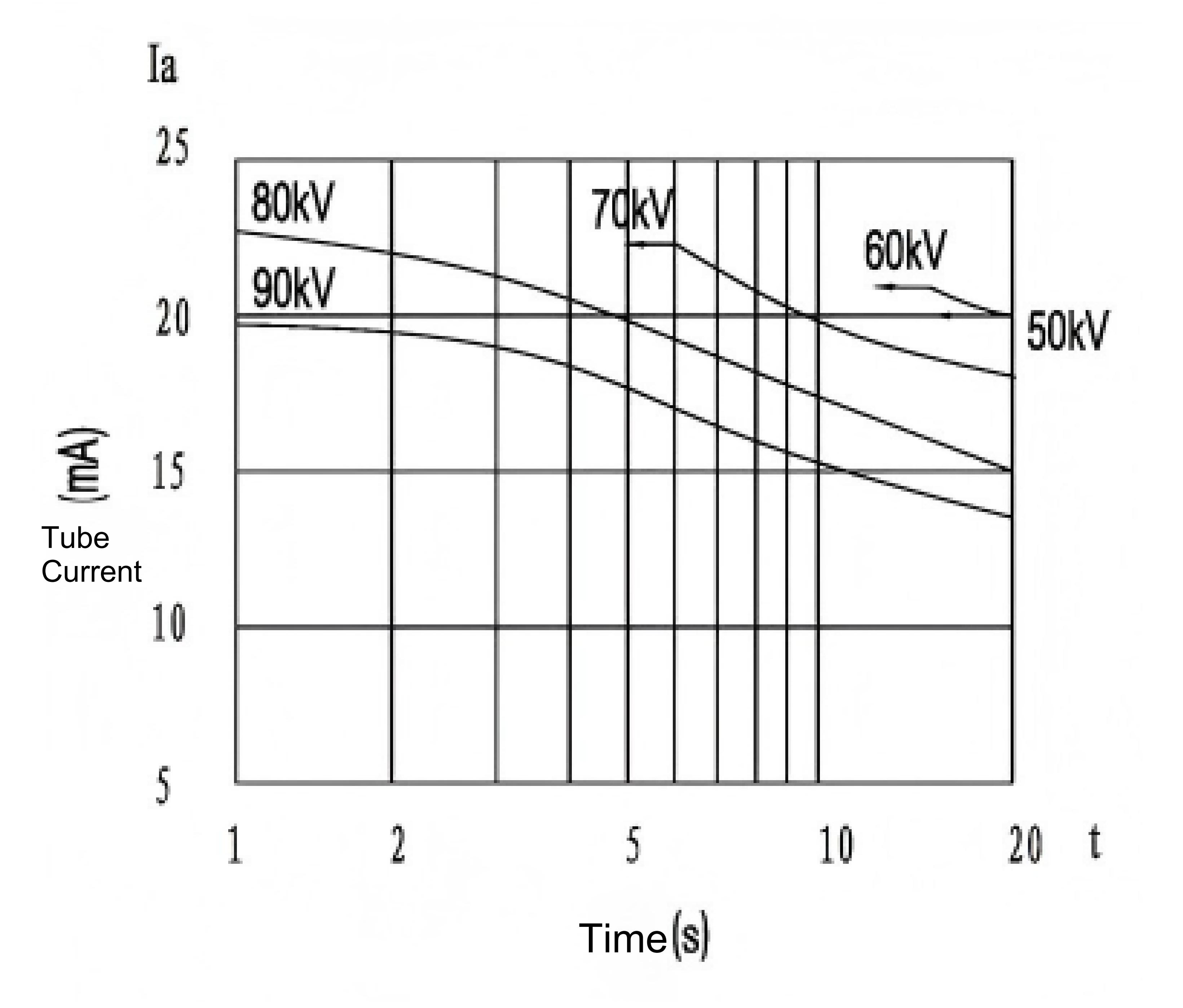

Rating Characteristics

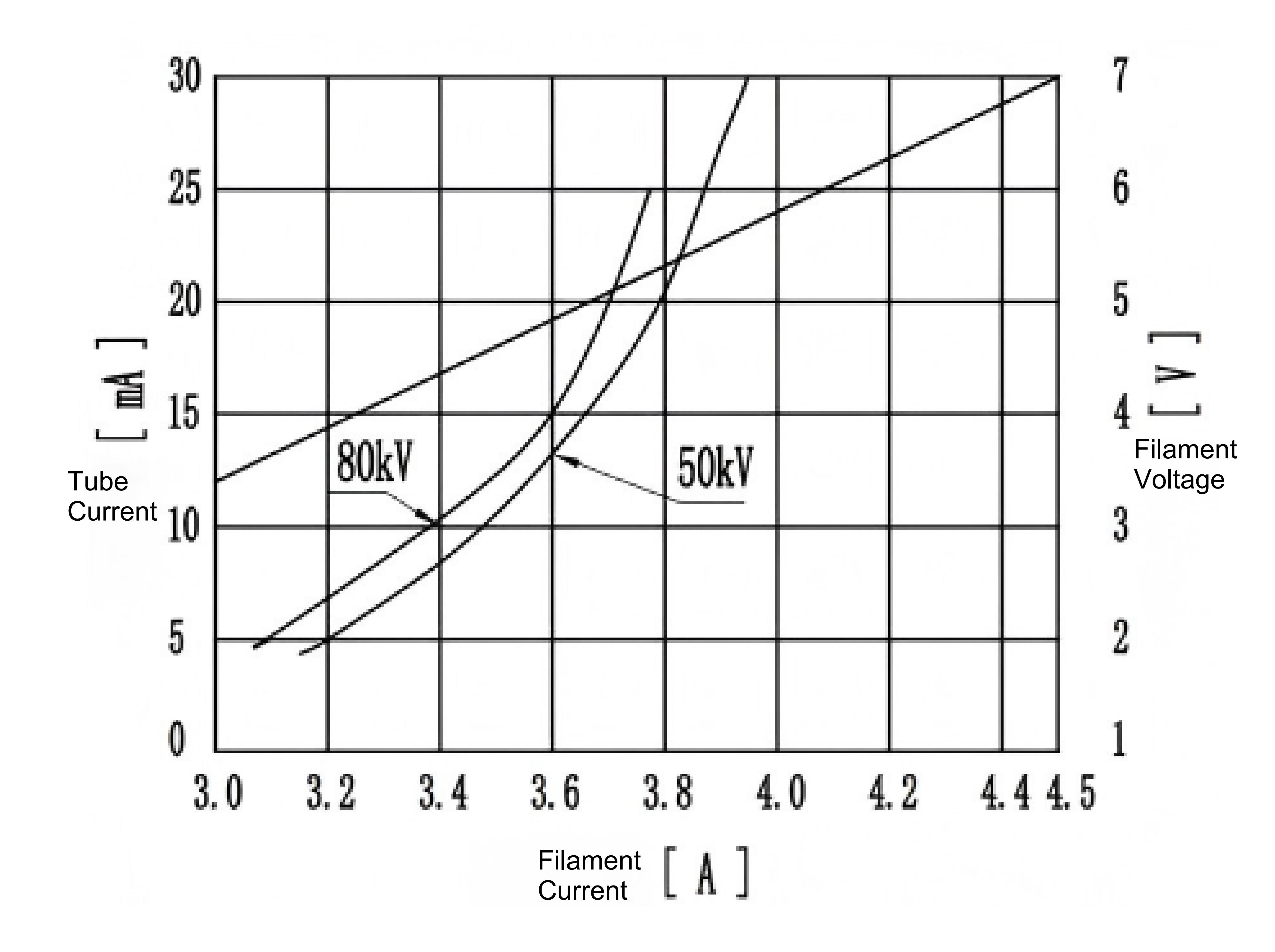

Filament and Cathode Emission Characteristics

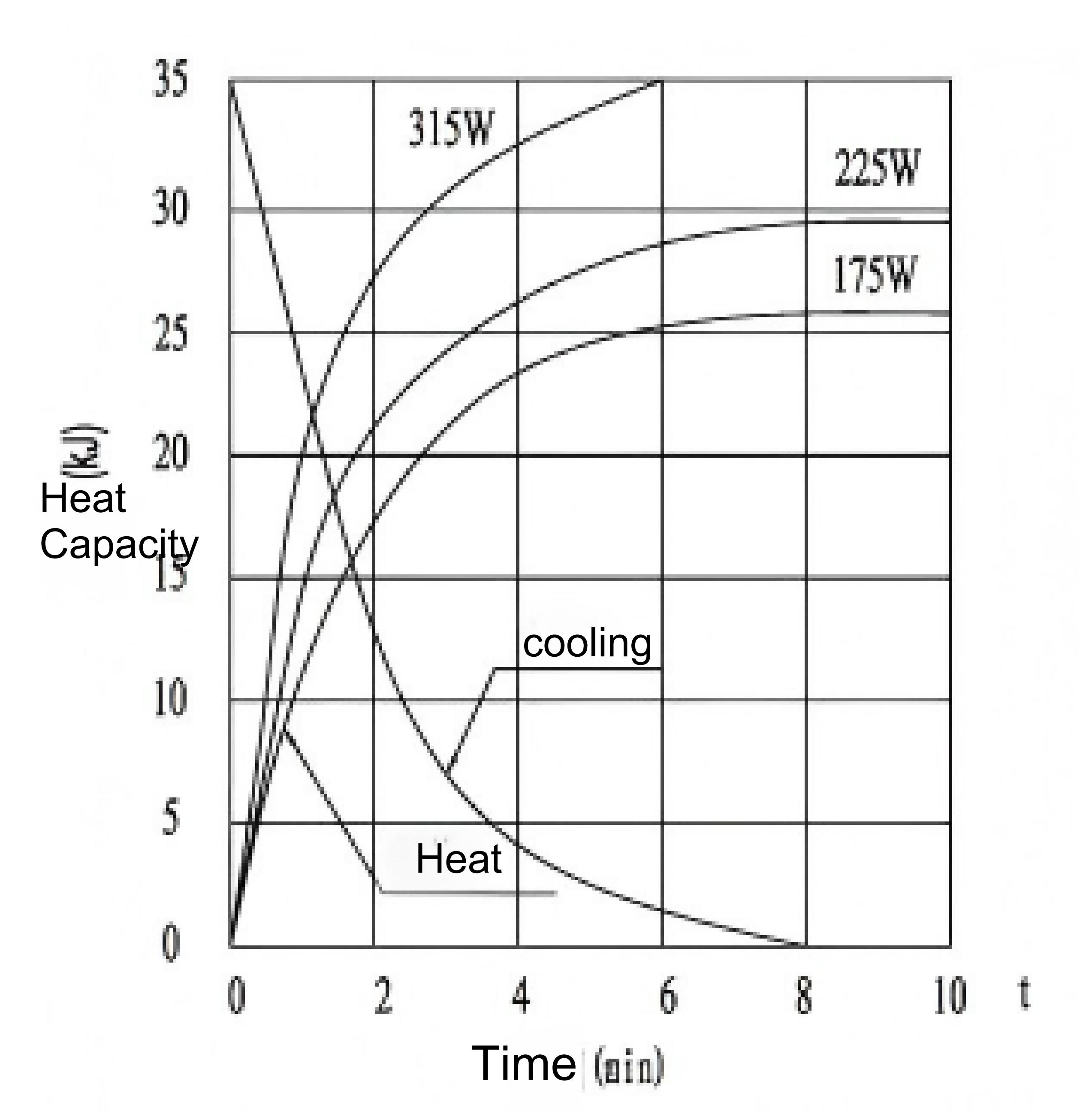

Anode heating and cooling Characteristics
