Application Scenarios
XD16-0.43/70
XD16-0.43/70 mainly applied to miniature portable dental X-ray diagnostic equipment and small-scale
radiograhpic inspection etc.
Feature
- Lightweight(≤0.12kg) with 0.4mm tiny focal spot, offering sharp images for portable dental X-ray machines.
- Max 70kV voltage, 0.43kW 0.1s power; tungsten target with≥0.8mm Al equivalent built-in filtration.
- Standard filament:5.5±1V/2.5A.Supporting curves realize precise tube current and dose control.
- 4.3kJ anode heat capacity & 70W continuous cooling; thermal curves avoid overheat damage.
- Full rating curves for 50/60/70kV, setting safe mA limits for all exposure durations.

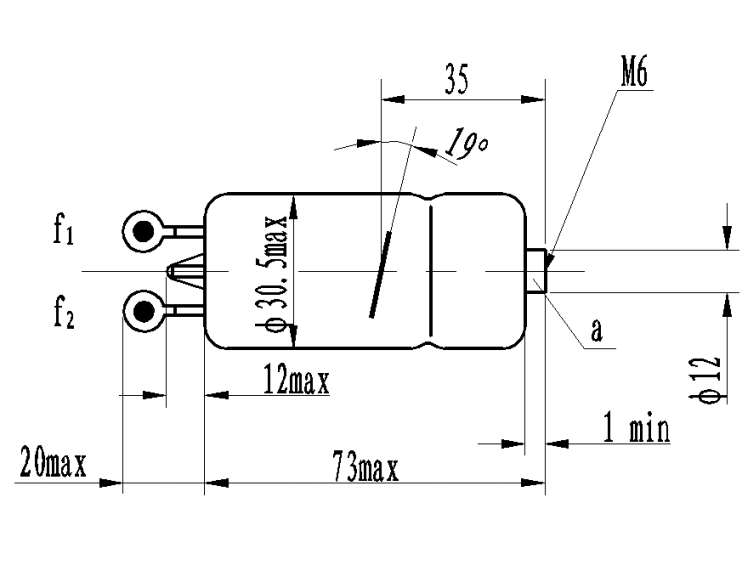

Outline Drawing

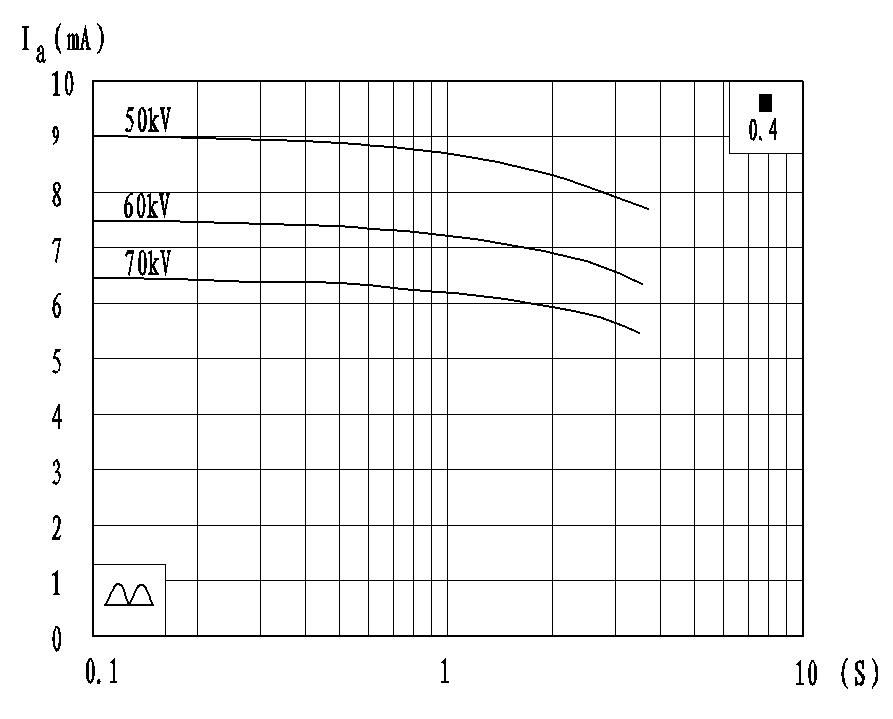

Rating Characteristics

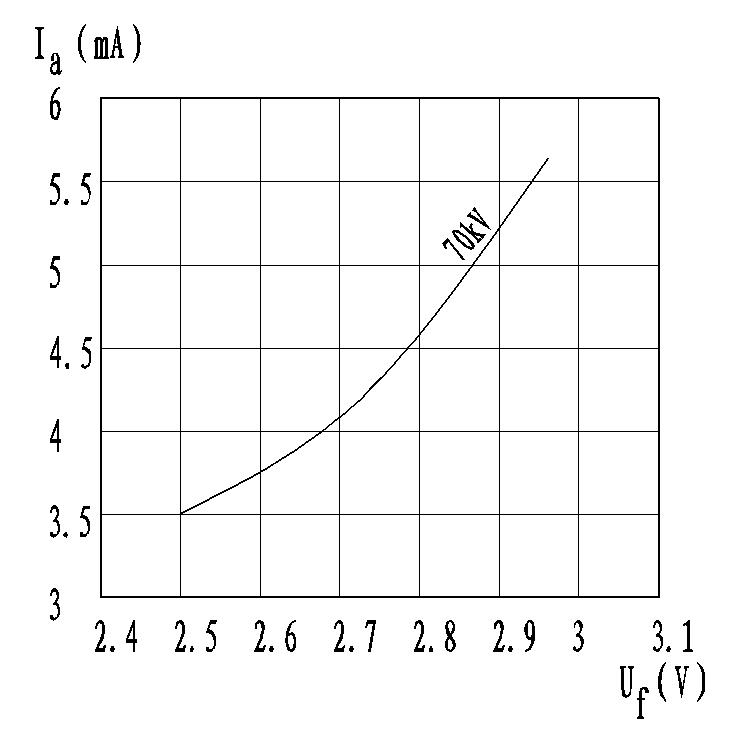

CathodeEmission Characteristics

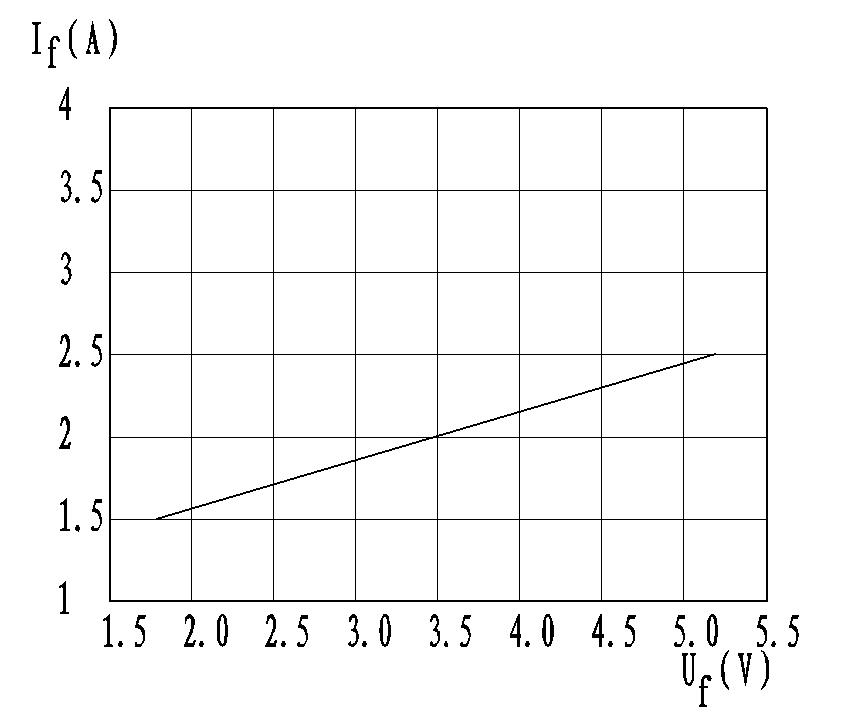

Filament Characteristics

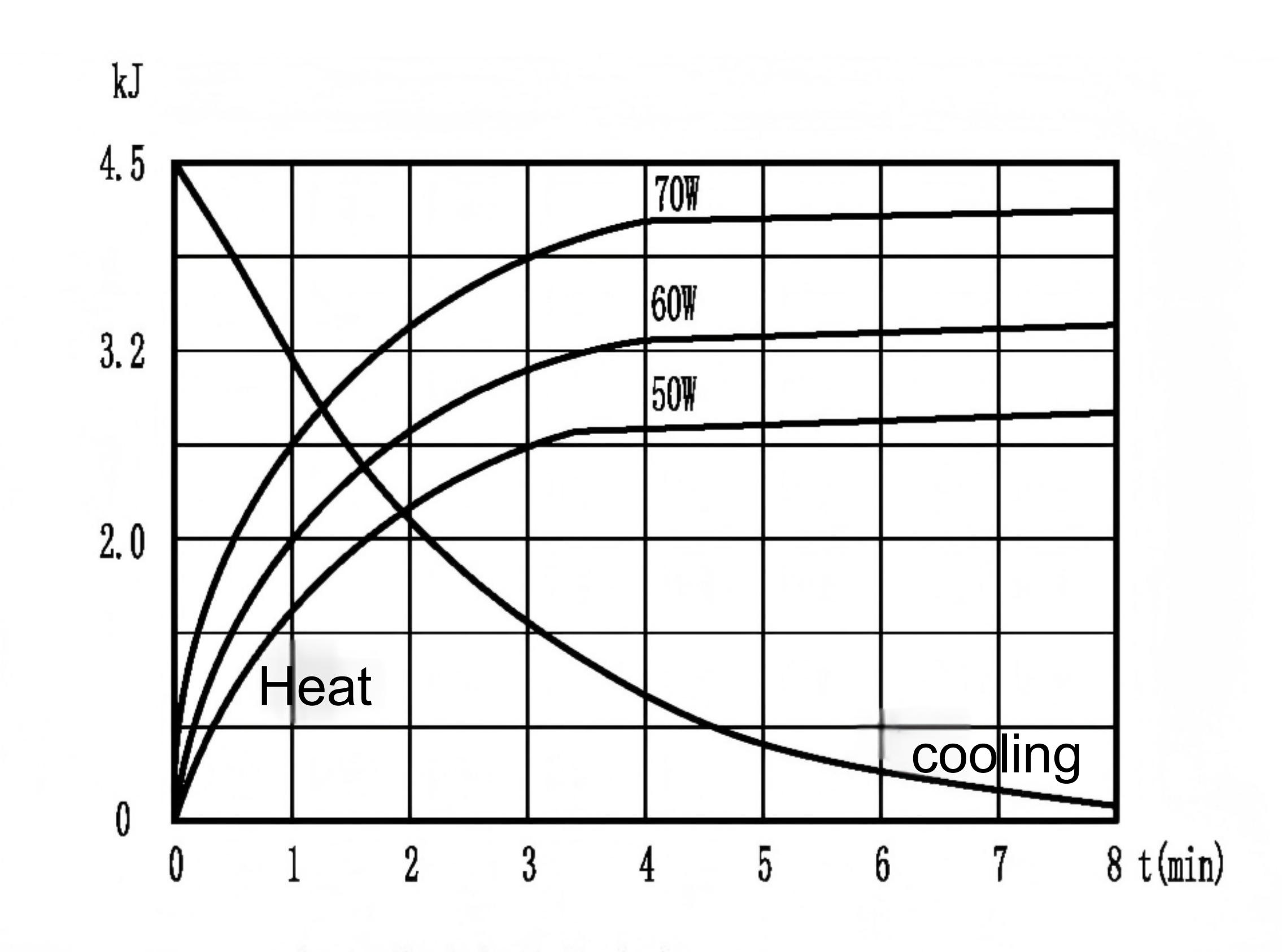

Anode Heating and Cooling Characteristics
Technical Data
| Nominal Tube Voltage(kV) | 70 |
| Filament Characteristics(V) | 5.5±1V/2.5A |
| Target Material | Tungsten |
| Target Angle | 19° |
| Nomianl Focal Spot(IEC336) | 0.4 |
| Nomial Anode Input Power(at 0.1s)(kW) | 0.43 |
| Inherent Filtration | Min0.8mmAl Equivalent |
| Weight(kg) | ≤0.12 |
| Max.Anode Heat Capacity | 4.3kJ |
| Max.Continuous Heat Dissipation(Small) | 70W |
