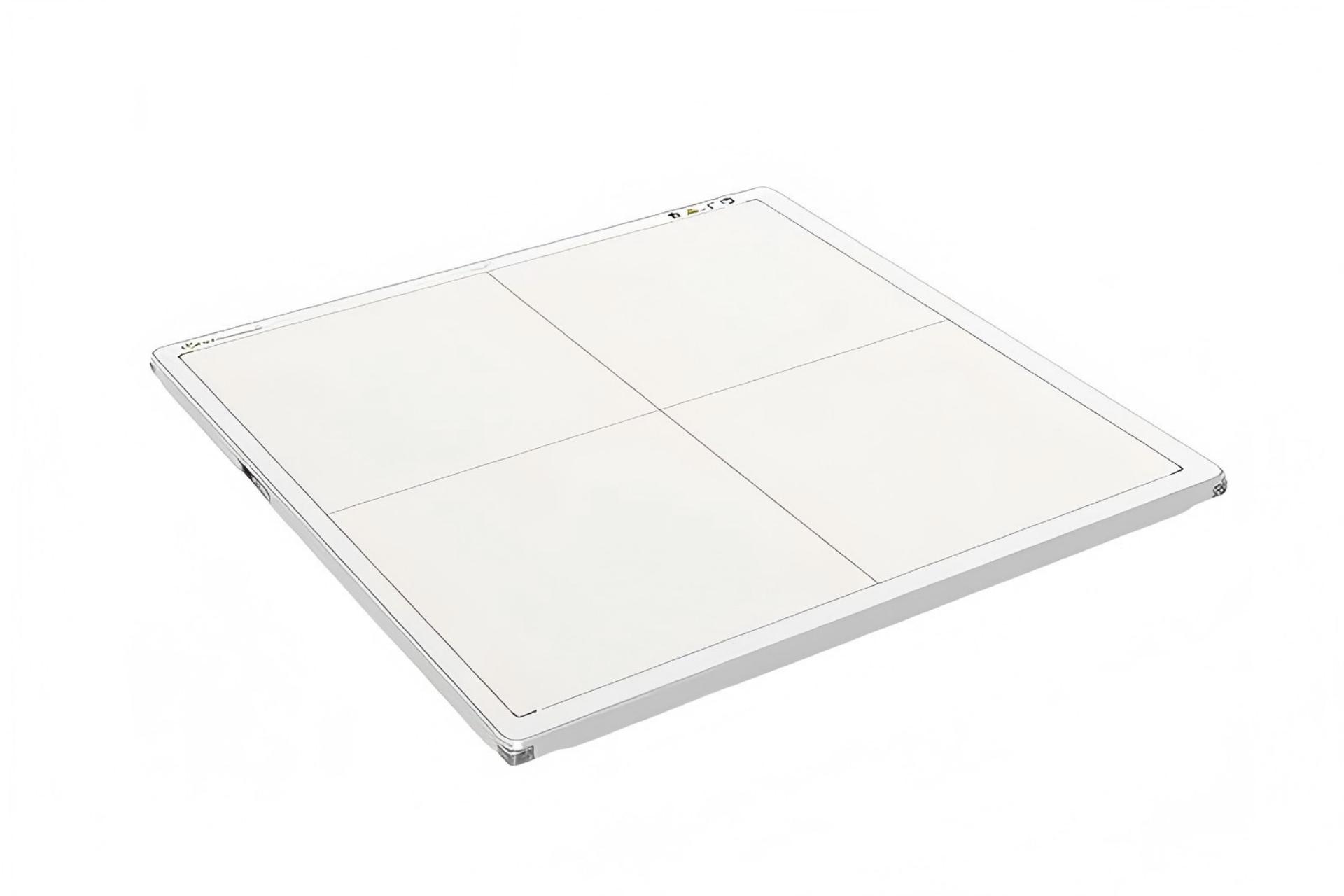

Mars1717V
Wireless CSI digital FPD delivers convenient and stable X‑ray imaging for medical and vet use.
Feature
- Wireless‑free design offers greater flexibility for on‑site radiography work.
- Adopts CSI scintillator to produce high‑quality X‑ray images.
- Suitable for both human medical examination and veterinary radiography.
- Stable wireless signal ensures reliable data transmission.
- Light‑weight structure, easy to carry for mobile X‑ray applications.
Technical Data
| Detector Technology | Amorphous Silicon | |
| Scintillator | CsI | |
| Active Area (inch) | 17 × 17 | |
| Pixel Matrix | 3072 × 3072 | |
| Pixel Pitch (μm) | 139 | |
| Spatial Resolution (lp/mm) | 3.6 | |
| AD Conversion (bit) | 16 | |
| Battery Autonomy (h) | 8 | |
| WIFI | 2.4G and 5G, IEEE802.11 a/b/g/n/ac | |
| Trigger Mode | AED (Optional) / Software | |
| Internal Image Storage | 200 full size images | |
| Full Image Time (s) | 5 | |

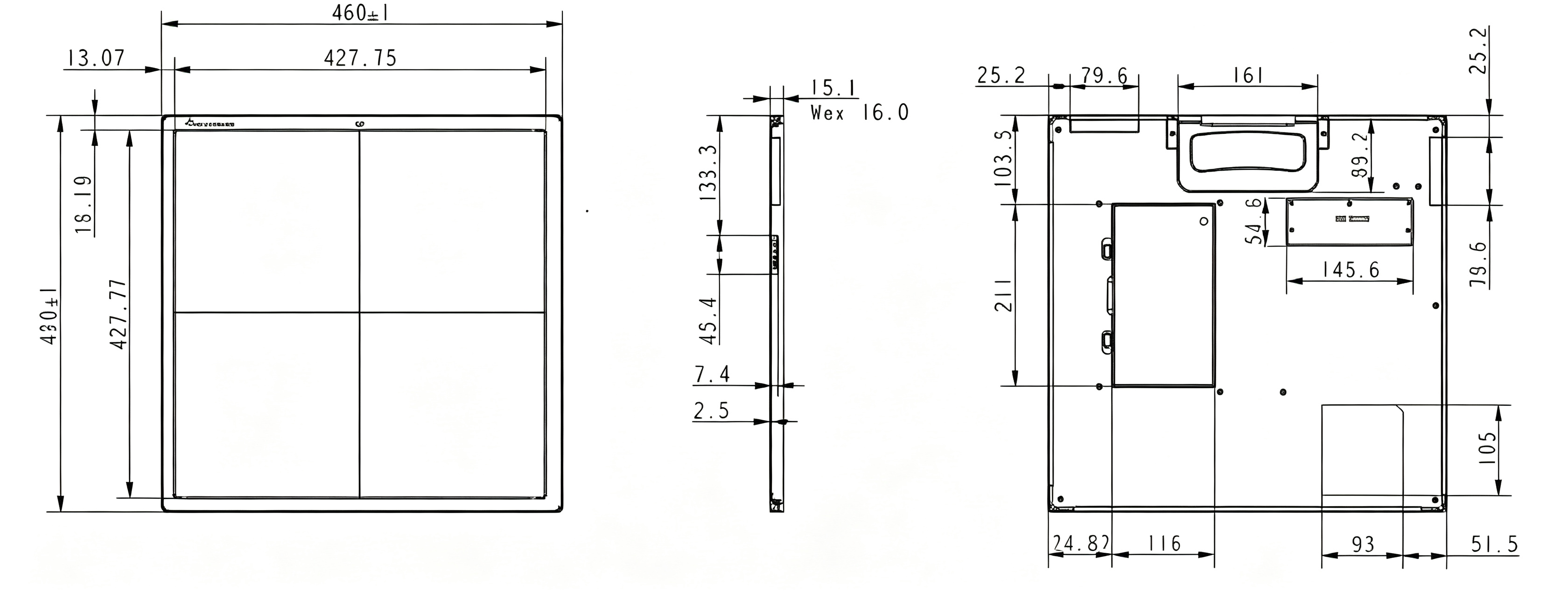

| Dimensions (mm3 ) | 460 × 460 × 15 | |
| Weight (kg) | 4.6 | |
| Static Loading | 150 kg Uniformly | |
| Center Loading | 135 kg @ 4 cm | |
| Ingress Protection | IPX1 | |
| Operating Temperature (℃) | 5 ~ 35 | |
| Storage & Transport Temperature with Package (℃) | -20 ~ 55 | |
| Operating Humidity (% RH) | 10 ~ 90 (Non-Condensing) | |
| Storage & Transport Humidity with Package (% RH ) | 5 ~ 95 (Non-Condensing) | |
