XD51-20.40/125
XD51-20.40/125 mainly applied to compact portable X-ray diagnostic equipment, beside radiography and routine fluoroscopy etc.
Feature
- Dual focal spots (1.0 / 2.0) with max 125 kV voltage; tungsten rotating target (2800 r/min, 17.5° angle).
- Short-term power: 20 kW (small focus) / 40 kW (large focus); continuous power 410 W, anode heat capacity 140 kHU, weight ≤1.5 kg.
- Separate filament voltages for small/large focus, simple 3-wire connection (S/C/L).
- Complete supporting curves: load rating, filament emission, anode heating & cooling for safe operation.
- Compact standardized structure with precise dimensional tolerances for easy mounting.
Technical Data
| Max Operating Voltage(kV) | 125 | |
| Filament Characteristics(V) | Ifmax=5.5A,Uf=7~9(small) | |
| Ifmx=5.5A,Uf=10~13(big) | ||
| Target Material | W | |
| Target Angle | 17.5° | |
| Diameter | 70mm | |
| Rotare Speed | 2800(50Hz) | |
| Inherent filtrating(mmAl) | 0.8~1.2 | |
| Weight(≤kg) | 1.5 | |
| Nomianl Focal Spot Value | 1.0(small)2.0(big) | |
| Max Power | 20(small)40(big) | |
| Anode Heat Storage Capacity | 100(140kHU) | |
| Max Continuous Power | 410(W) | |

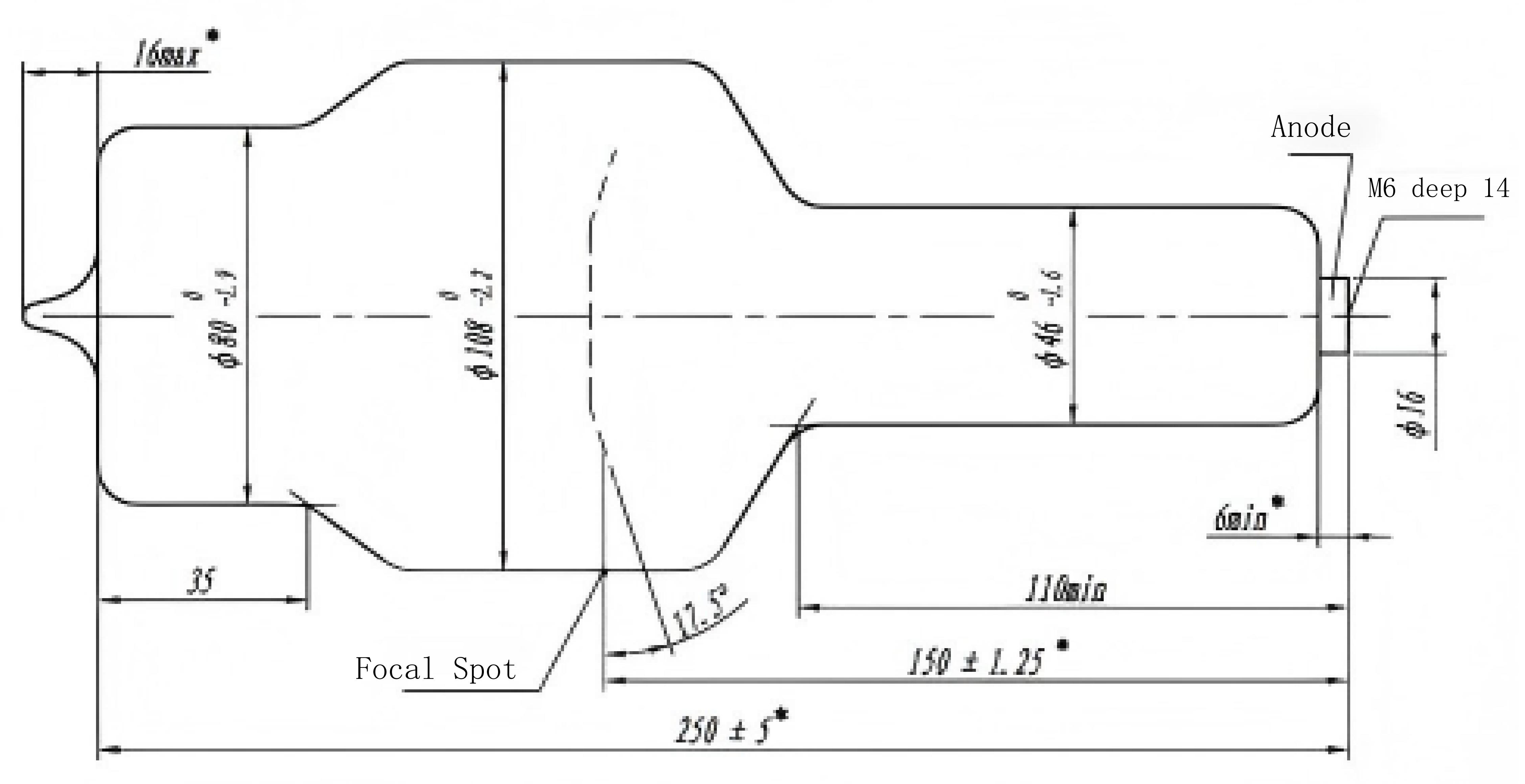

Outline Drawing

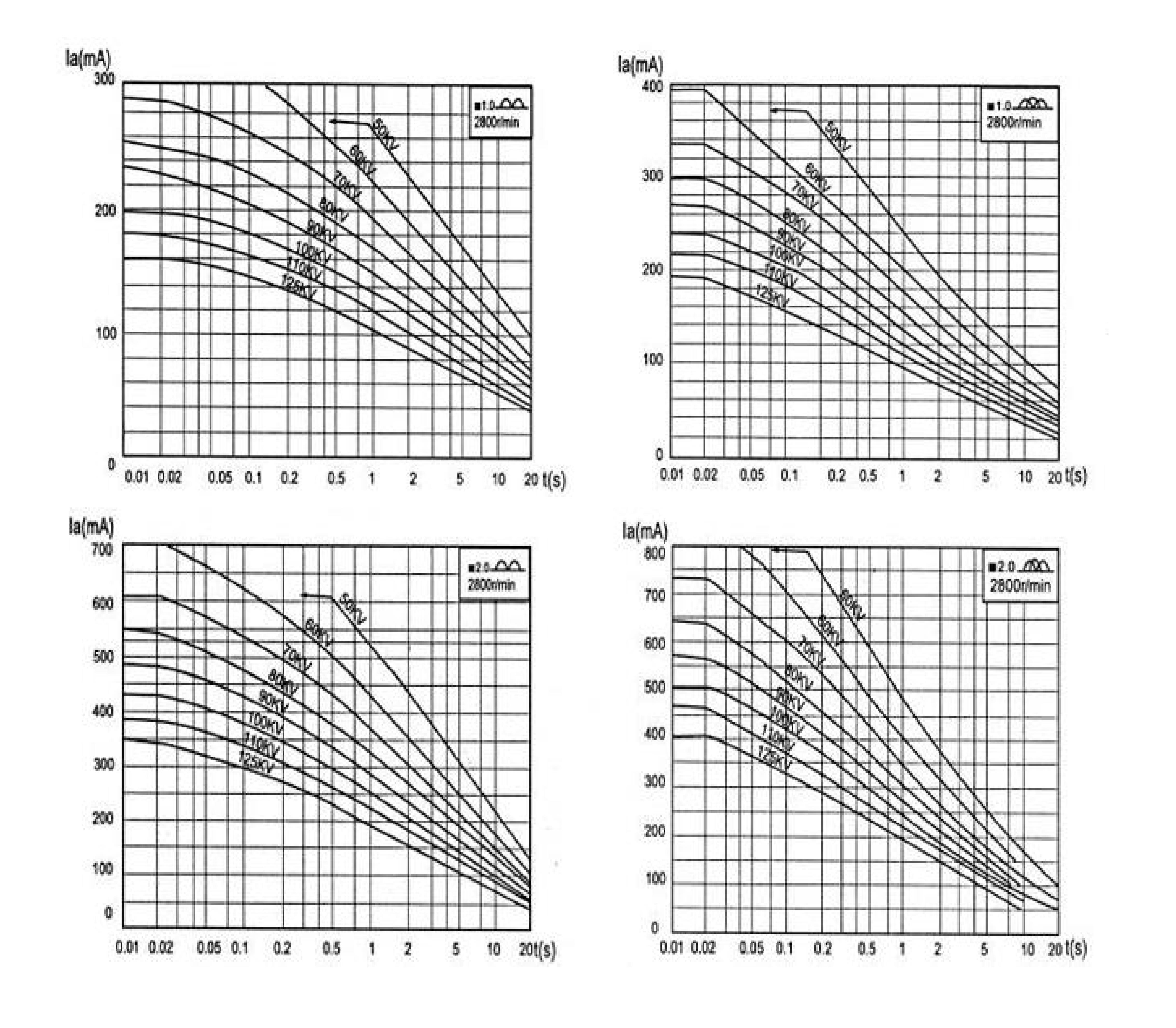

Rating Characteristics

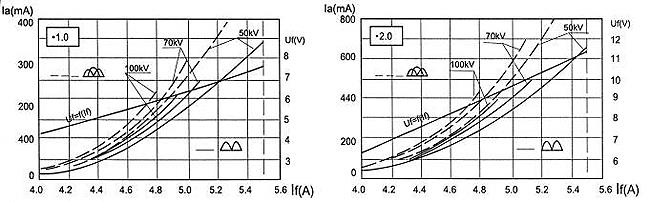

Filament Emission Characteristics

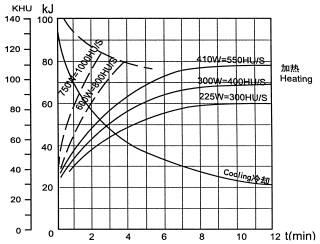

Anode Heating and Cooling Characteristics
